Main Frame Assembly
Triumph TXP-24 · 2024 · Chassis & Suspension · 20 parts

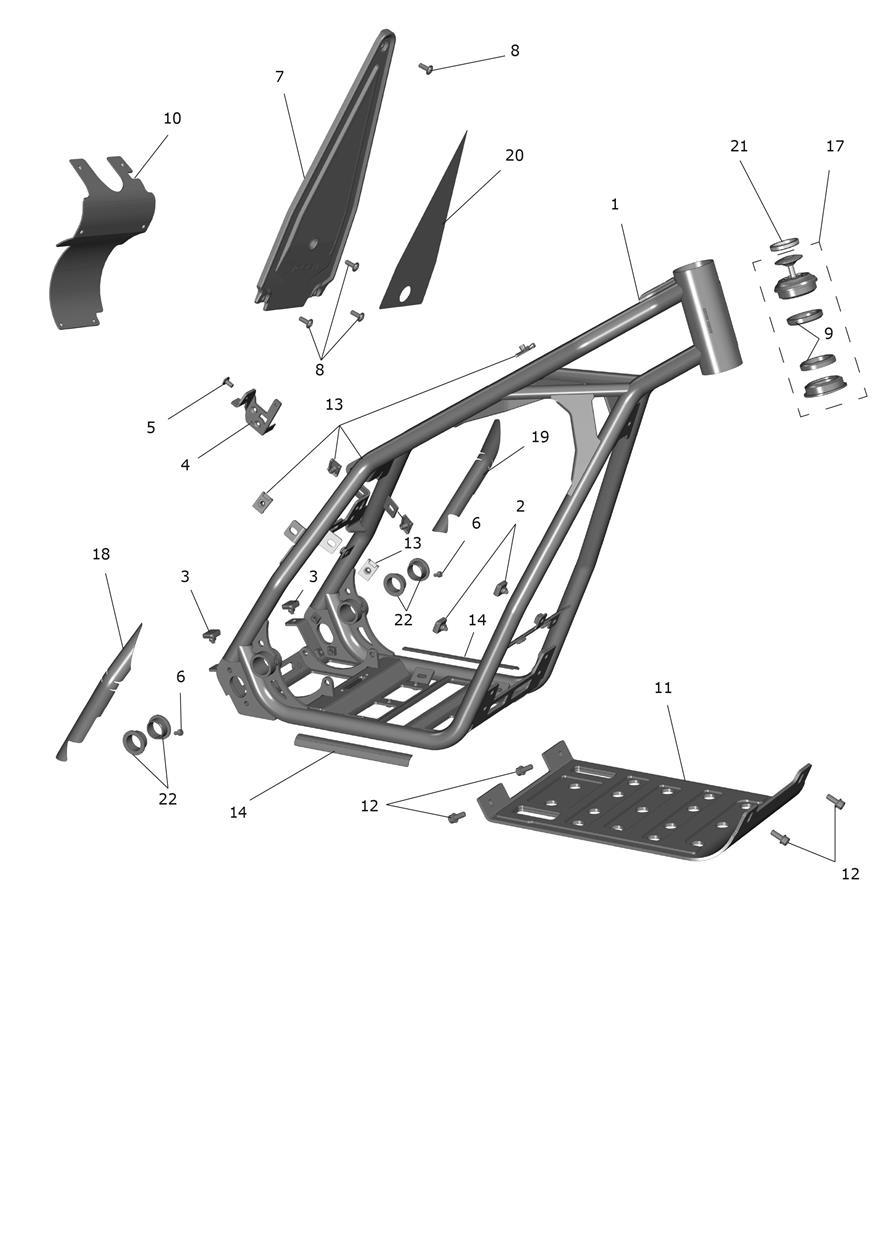

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.
Every part on this diagram
1
12
TOS30069
Bolt,M6X14Mm,Cap+Wash,10.9,Blk
Qty 4
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
14
T2075966
Protect Decal, Batt Tray, LRG
Qty 2
Backordered at Triumph · we’ll confirm the ship date after you order
$2.82
On backorder
20
T2075655
Decal, Tri TXP-24, Fr Splash
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$8.12
On backorder
Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
