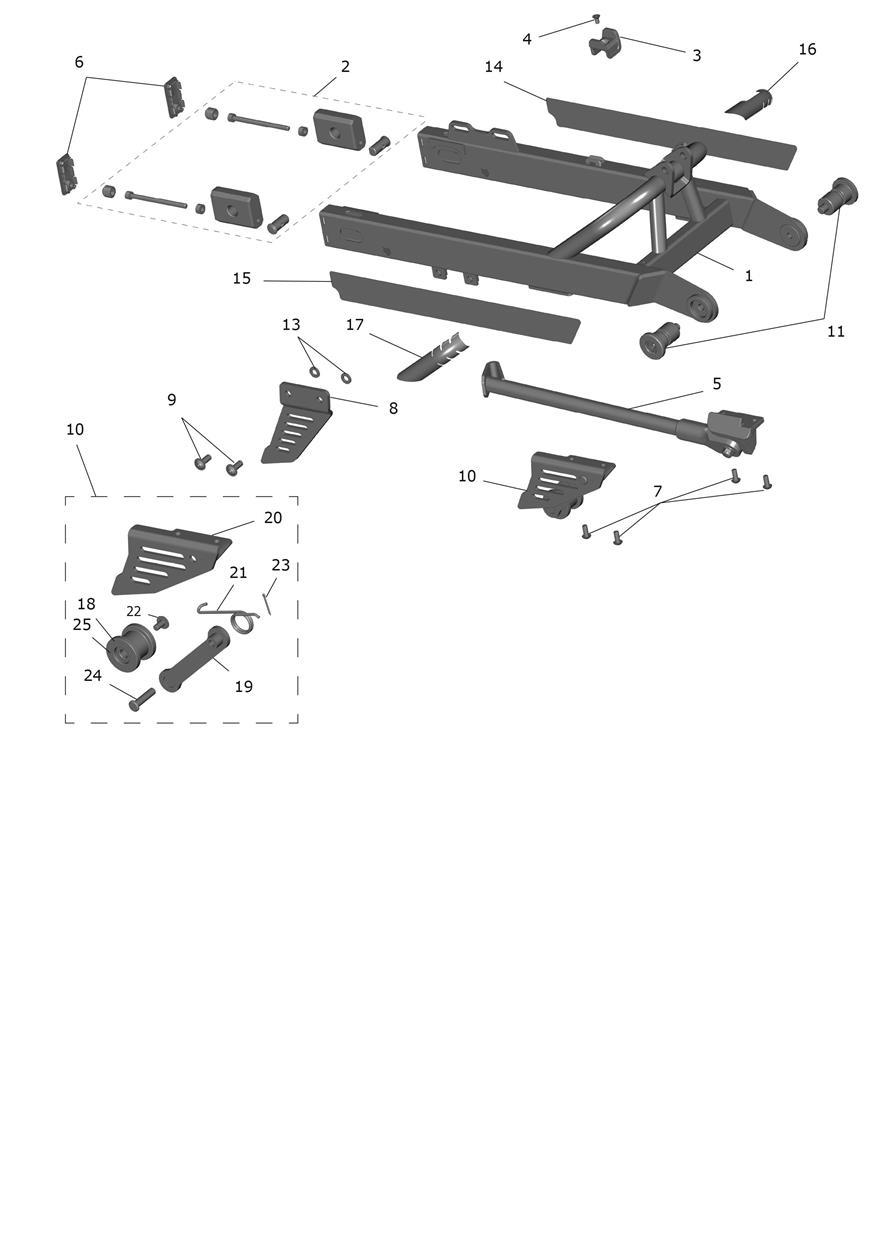

Swinging Arm
Triumph TXP-24 · 2024 · Chassis & Suspension · 24 parts · 1 on the shelf in Brea
Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.
Every part on this diagram
14
T2055181
Decal, Tri TXP-24, SARM Lhs
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$8.12
On backorder
15
T2055182
Decal, Tri TXP-24, SARM, Rhs
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$8.12
On backorder
18
T2059912
Chain Tensioner Roller Assy
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$36.46
On backorder
21
T2050940
Spring, Chain Tensioner, SS
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
25
Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
