Brake Assembles

Triumph TXP-24 · 2024 · Accessories · 13 parts

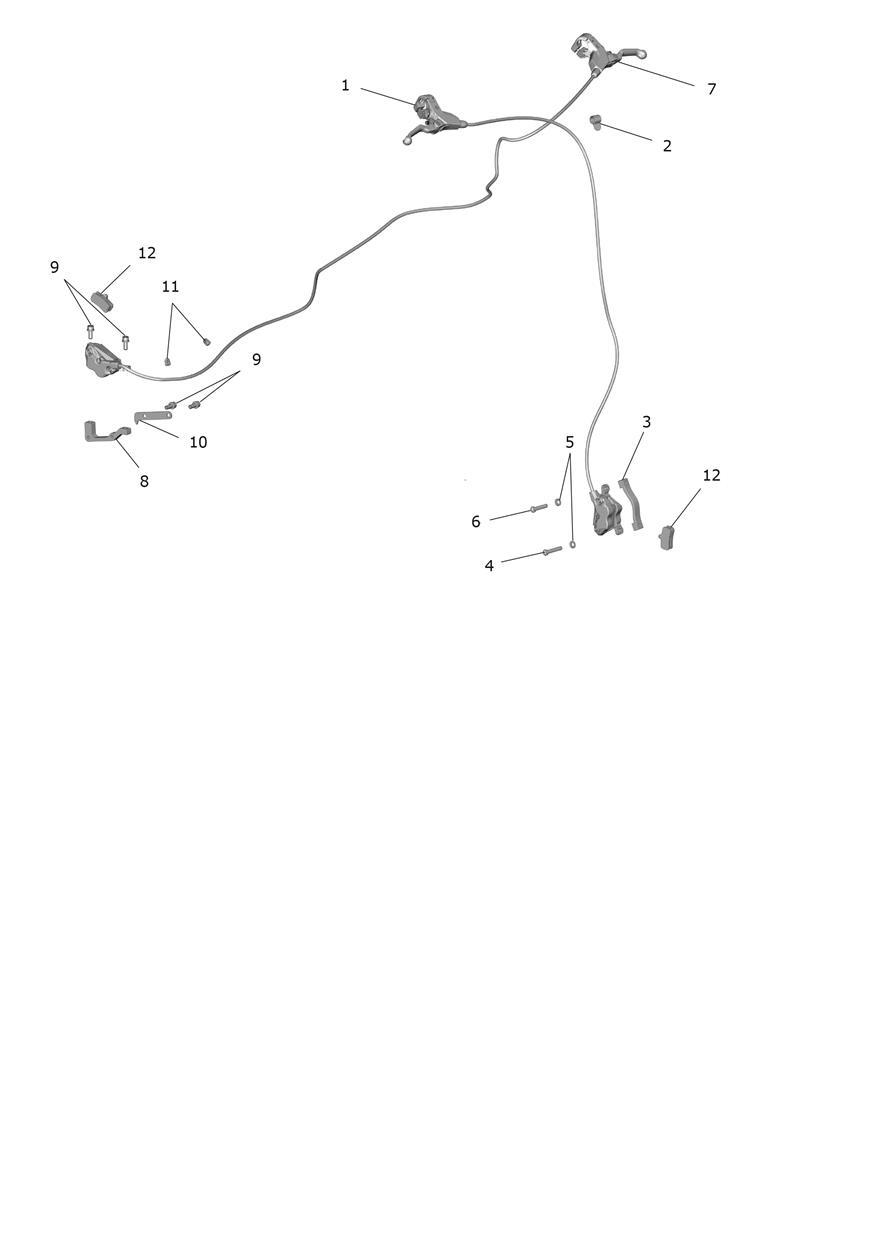

Exploded parts diagram — Brake Assembles, Triumph TXP-24

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2022785
Front Brake Assy, 4 Pist, Blk
Qty 1
$119.98
Available
2
T3700259
Rubber Band, 43mm
Qty 1
$3.61
Available
3
T2022767
Brake Adaptor, 180-203Mm, Blk
Qty 1
$11.56
Available
4
T2022775
Bolt, Caliper, M6X32Mm, Blk
Qty 1
$1.99
Available
5
T2022769
Cup Washer, M6, Blk
Qty 2
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
6
T2022774
Bolt, Caliper, M6X27Mm, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
7
T2022786
Rear Brake Assy, 4 Pist, Blk
Qty 1
$119.93
Available
8
T2022768
Brake Adaptor, Is 180Mm, Blk
Qty 1
$11.56
Available
9
T2022772
Bolt, Caliper, M6X16Mm, Blk
Qty 4
$12.87
Available
10
T2022749
Brake Guide Rear Calliper
Qty 1
$11.70
Available
11
T3700015
Cable Tie, 185.7 Long
Qty 2
$1.99
Available
12
T2029822
Riderever, Pads, 4 Piston, SM
Qty 2
$31.25
Available
13
T2029821
Riderever, 2 Finger Lever Kit
Qty 1
$37.50
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
