Side Panels

Triumph TXP-24 · 2024 · Bodywork · 7 parts · 1 on the shelf in Brea

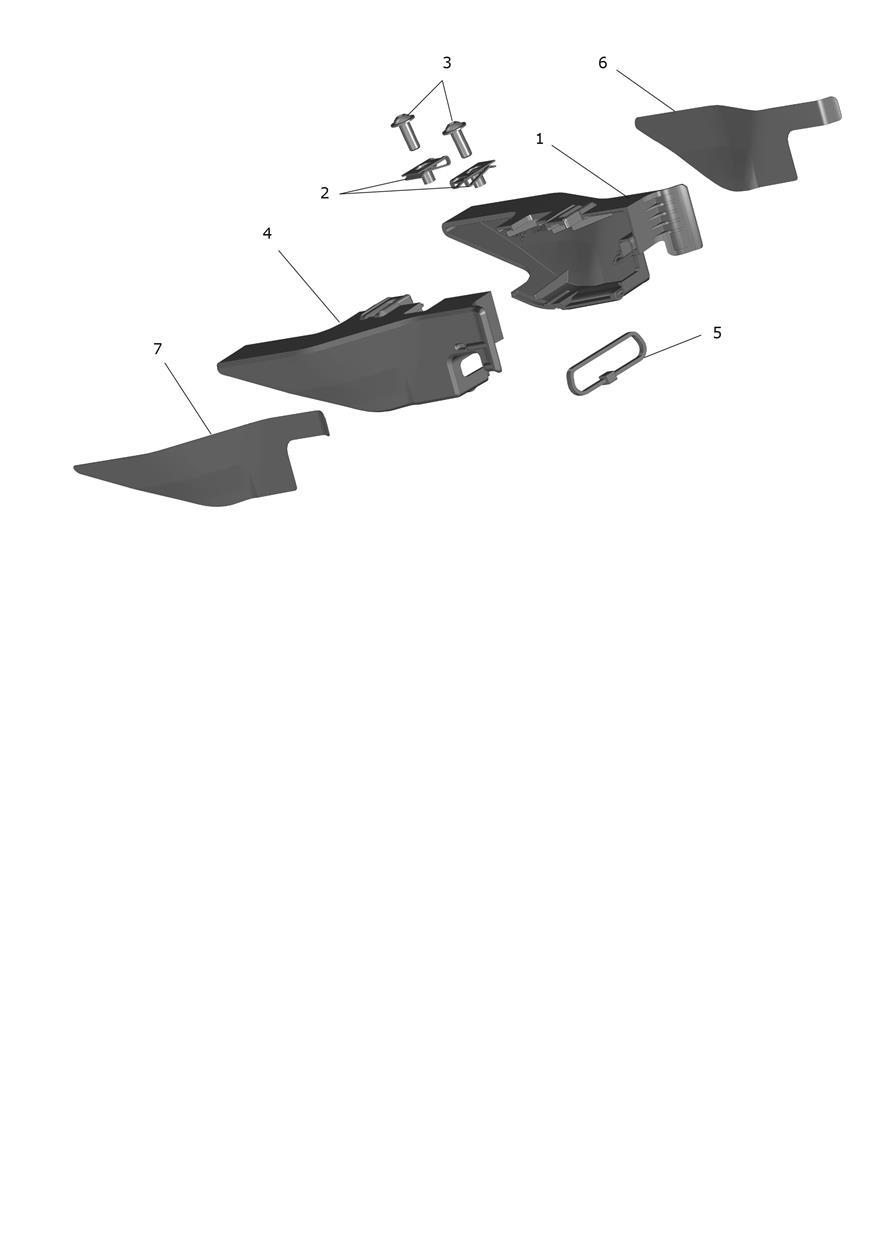

Exploded parts diagram — Side Panels, Triumph TXP-24

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2317871
Infill Panel 200Mm, Mldg, Lhs
Qty 1
$18.25
Available
2
TOS30004
Spire Nut, M6, Steel
Qty 2
$2.60
Available
3
TOS30003
Bolt, M6X16Mm, Flgd, 10.9, Blk
Qty 2
$1.99
Available
4
T2317874
Infill Panel 200Mm, Mldg, Rhs
Qty 1
$18.25
Available
5
T3700016
Cable Tie, 370 Long
Qty 1
$1.99
In stock in Brea
6
T2314221
Decal, Tri TXP-24, Infill, Lhs
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$7.15
On backorder
7
T2314223
Decal, Tri TXP-24, Infill, Rhs
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$7.15
On backorder

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
