Rear Wheel

Triumph TXP-20 · 2024 · Brakes & Wheels · 27 parts

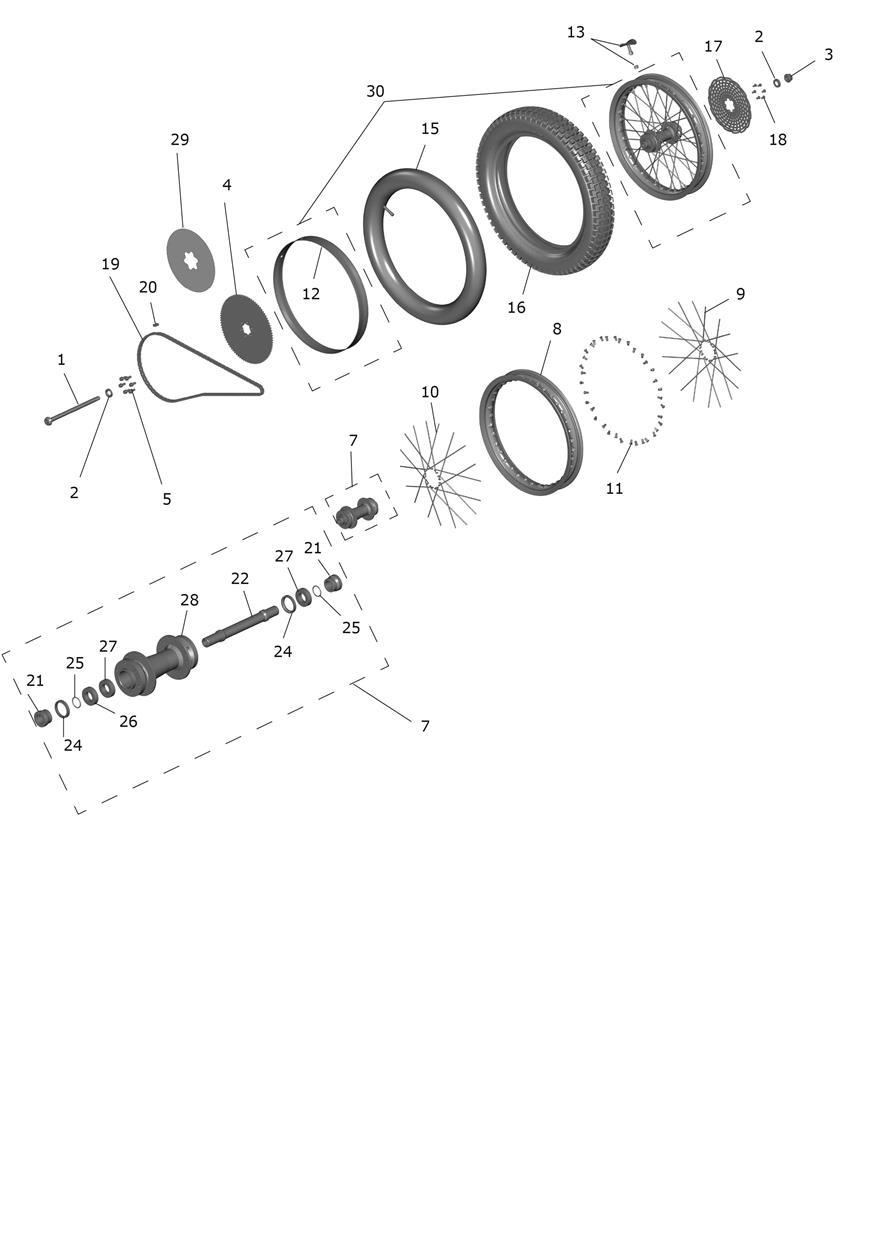

Exploded parts diagram — Rear Wheel, Triumph TXP-20

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2012029
Axle, Rear, 12X210Mm, Alu, Blk
Qty 1
$25.00
Available
2
TOS30014
Washer Cup, Rr Axle, M12, Blk
Qty 2
$5.73
Available
3
TOS30015
Nut,Axle,M12X1.50,Flgd,Alu,Blk
Qty 1
$7.60
Available
4
T2011262
Rear Sprocket,86T, Alu, Black
Qty 1
$41.55
Available
5
TOS30005
Bolt,M6X16Mm,Cap+Wash,10.9,Blk
Qty 6
$1.99
Available
7
T2011243
Hub, Rear, 12X152Mm, Alu, Blk
Qty 1
Backordered at Triumph · no date yet
$106.25
On backorder Shipping quote or pickup
8
T2014319
Rim, 14X1.6'' Mc, 36H, Black
Qty 1
Backordered at Triumph · no date yet
$106.25
On backorder Shipping quote or pickup
9
T2011327
Spoke, 12G X 148Mm, Black
Qty 18
$1.99
Available
10
T2011324
Spoke, 12G X 150Mm, Black
Qty 18
$1.99
Available
11
T2009933
Nipple, 12G X 13Mm, Chrome
Qty 36
$1.99
Available
12
T2014316
Rim Tape, 14''X45Mm, Mc
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$3.21
On backorder
13
T2000876
Rim Lock, 1.4-1.6'' Rims
Qty 1
$18.40
Available
15
T2011264
Tube, 14X3.0'' Mc
Qty 1
$17.00
Available
16
T2011263
Tyre R, Mega Gripper, 14X3.25
Qty 1
$68.50
Available Shipping quote or pickup
17
T2022745
Brk Rotor, Solid, 180Mm
Qty 1
$19.50
Available
18
TOS30013
Bolt, M5X10Mm, Torx, 10.9, Blk
Qty 6
$1.99
Available
19
T2014075
Chain, #219, 12Mm, 154 Links, Gold
Qty 1
$41.63
Available
20
T2014076
Masterlink, #219, 12Mm, Gold
Qty 1
$12.50
Available
21
T2011294
Hub Spacer, Rear, Alu, Blk
Qty 1
$13.00
Available
22
T2011291
Axle, Rr, Bearing, 12 X 151Mm, Alu, Blk
Qty 2
$56.66
Available
24
T2011288
Axial Seal, 22X28X4Mm, HM1 R
Qty 2
$18.75
Available
25
TOS30025
O-Ring, 15X1.5Mm
Qty 2
$1.99
Available
26
T2011257
Bearing RS, 15X28X7Mm
Qty 1
$9.12
Available
27
T2011510
Bearing, RS, 15X28X7Mm
Qty 2
$9.12
Available
28
T2012057
Hub Shell, Rr, 152Mm, Alu, Blk
Qty 1
Availability unconfirmed
No longer available
Not on our shelf Ask the parts desk
29
T2011498
Decal, Tri TXP-20, Rr Sprocket
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$10.82
On backorder
30
T2011376
Rr Wheel & Rim Tape 14X1.6"
Qty 1
$234.93
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
