Electrical system

Triumph TXP-20 · 2024 · Electrical · 12 parts

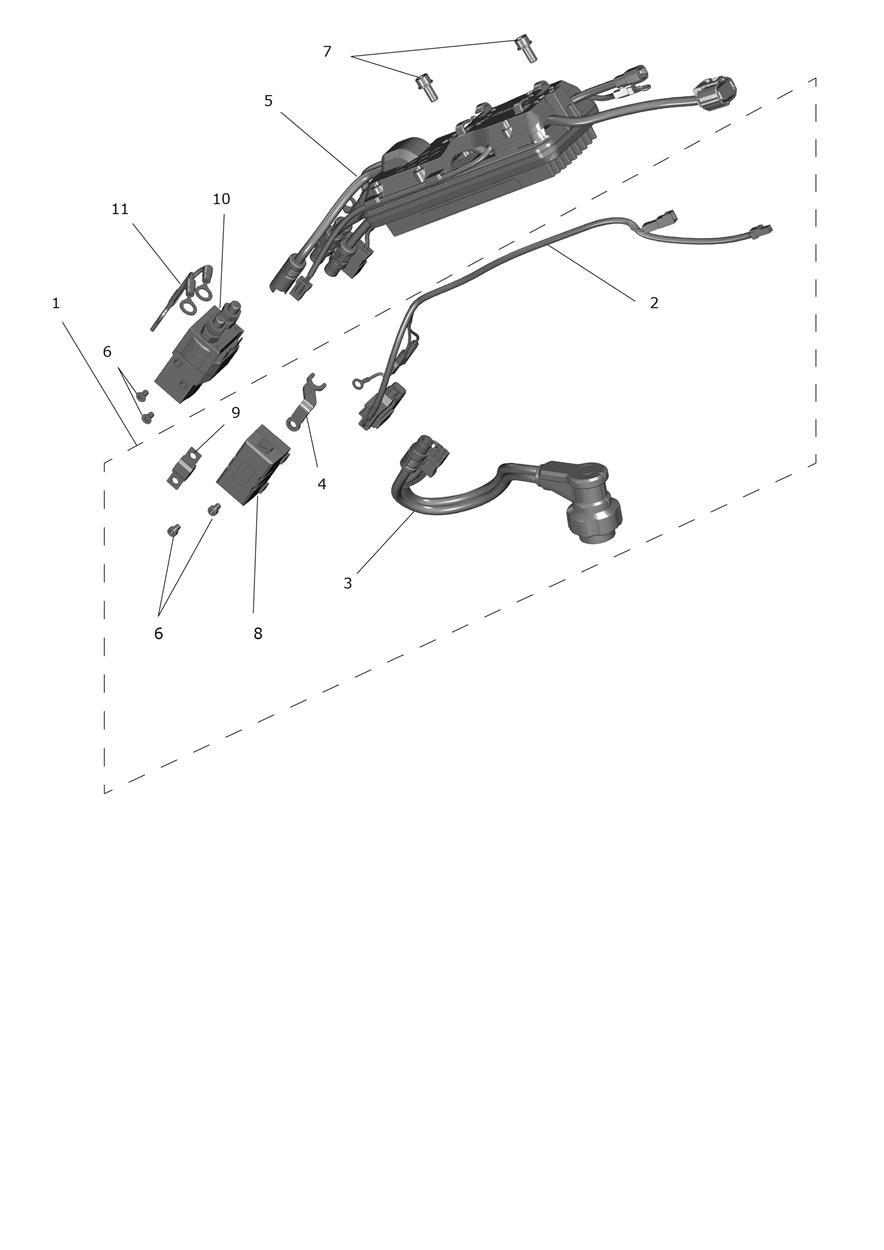

Exploded parts diagram — Electrical system, Triumph TXP-20

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2504348
Wiring Harness, 100A Fuse
Qty 1
$122.67
Available
2
T2504359
Harness, Relay to Lanyard Base
Qty 1
$16.32
Available
3
T2504387
Harness, Li-Ion Batt Connector
Qty 1
$57.28
Available
4
T2504396
Harness, Link Strip, Assy
Qty 1
$5.21
Available
5
T5500007
Controller,Brushless 50V,1200W
Qty 1
$416.00
Available
6
TOS30007
Bolt, M4X8Mm, Csk, SS A2
Qty 1
$1.99
Available
7
T3200672
Bolt, TX, Lghtd, M6 x 14, Enc
Qty 2
$2.47
Available
8
T2504337
Fuse Holder ,Black
Qty 1
$7.23
Available
9
T2504338
Fuse, Midi, 100A
Qty 1
$3.12
Available
10
T2504349
Relay,48V,Sealed,M8
Qty 1
$72.28
Available
11
T2504498
Harness, Ptc, 2.5-5A
Qty 1
$7.43
Available
12
TOS30002
Bolt, M4X6Mm, Cap, 10.9, Blk
Qty 2
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
