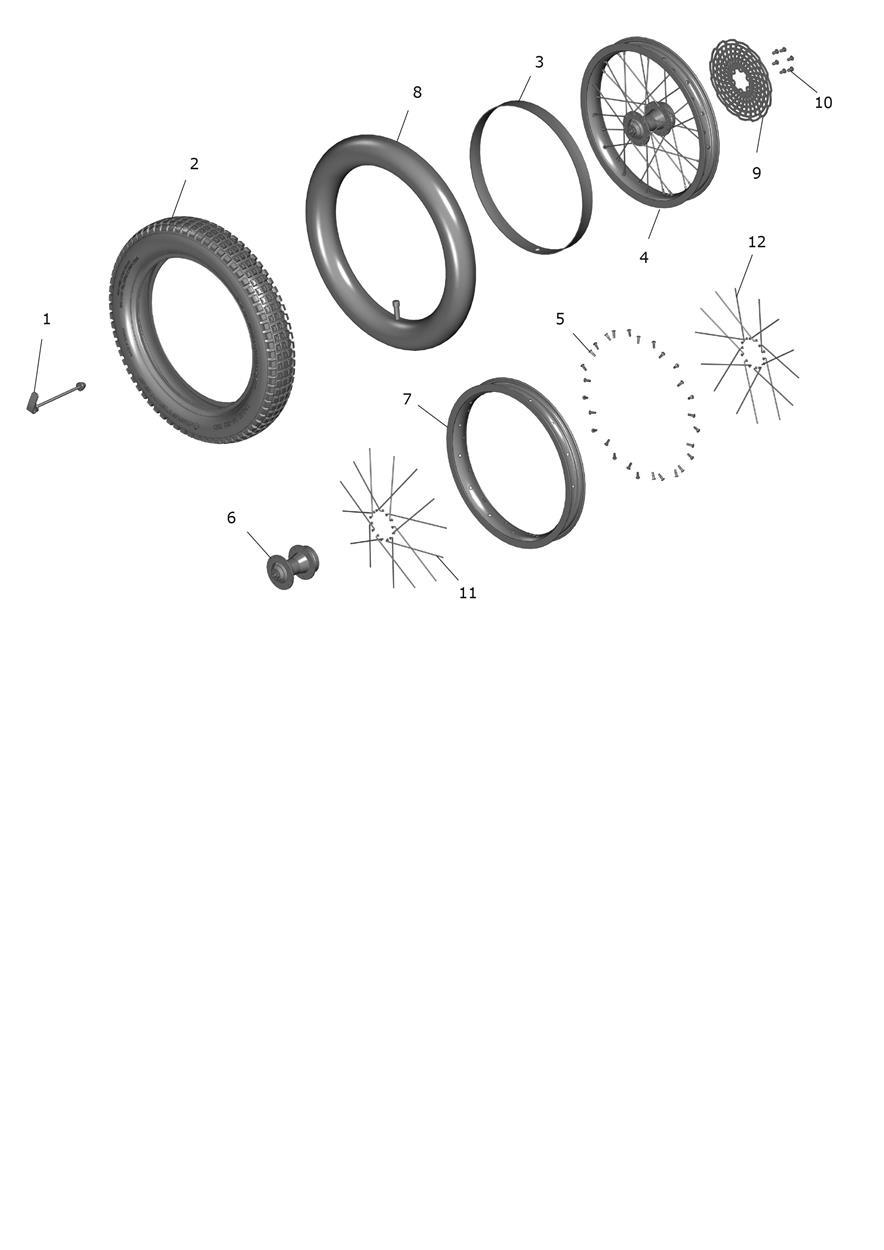

Front Wheel
Triumph TXP-16 · 2026 · Brakes & Wheels · 12 parts
Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.
Every part on this diagram
2
5
T2003274
Nipple, 14GX14Mm, Chrome
Qty 28
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
6
7
9
T2022776
Brk Rotor, Solid, 160Mm
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$26.36
On backorder
10
T2022991
Bolt, M5X10Mm, Torx, Blk
Qty 6
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
11
T2003245
Spoke, 14G, 131MM, Blk
Qty 14
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
12
T2003290
Spoke, 14G, 126MM, Blk
Qty 14
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
