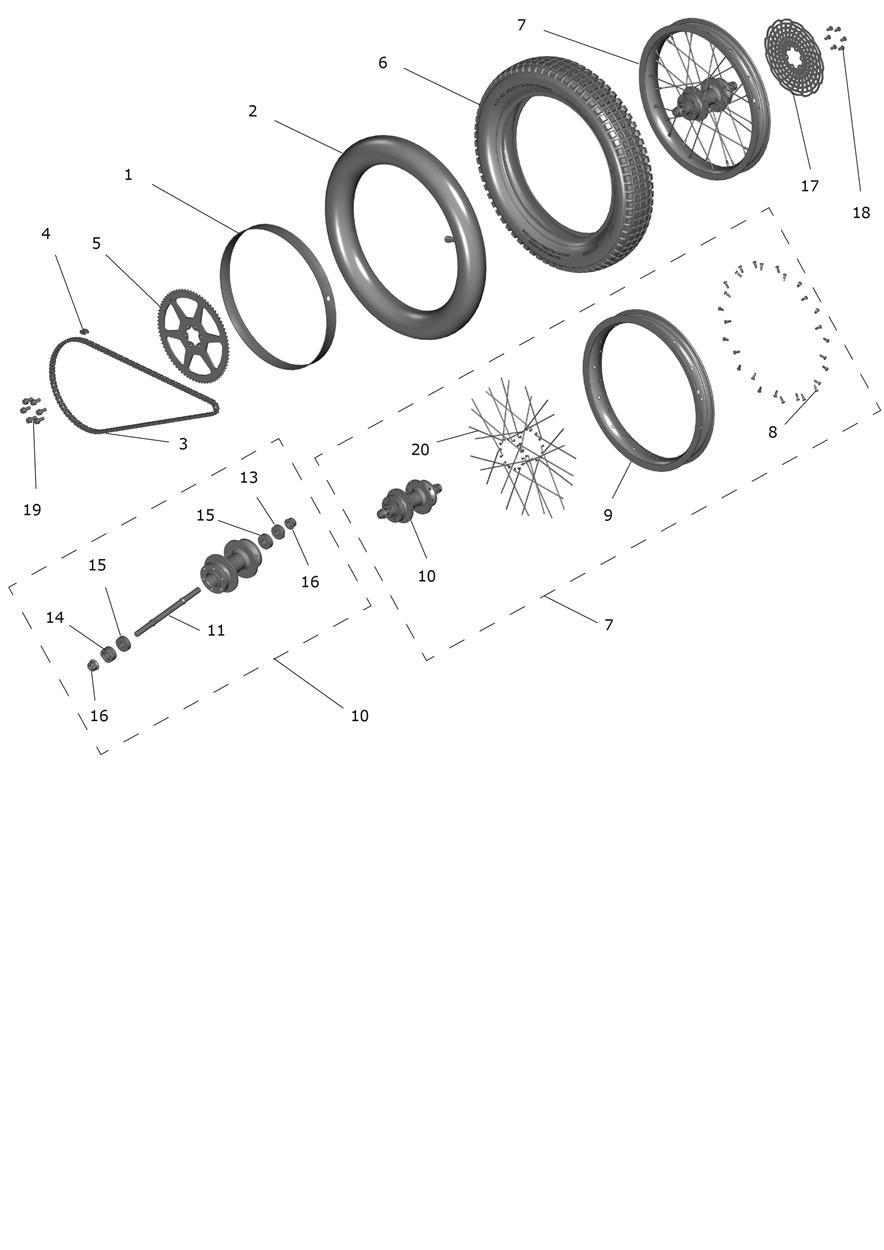

Rear Wheel
Triumph TXP-16 · 2026 · Brakes & Wheels · 20 parts
Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.
Every part on this diagram
3
T2011396
Chain, #219, 12Mm, 134 Links
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$35.20
On backorder
6
7
T2013400
Rear Wheel, 16" BC, Black
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$125.25
On backorder
8
T2003274
Nipple, 14GX14Mm, Chrome
Qty 28
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
9
10
11
13
T2011465
Nut, Hub Bearing, Alu, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
14
T2011466
Nut, Hub Bearing, Alu, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
15
16
TOS30075
Nut, Axle, 3-8" 26TPI, Blk
Qty 2
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
17
T2022776
Brk Rotor, Solid, 160Mm
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$26.36
On backorder
18
T2022991
Bolt, M5X10Mm, Torx, Blk
Qty 6
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
20
T2003230
Spoke, 14G, 125MM, Blk
Qty 14
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
20
T2003235
Spoke, 14G, 128MM, Blk
Qty 14
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
