Front Mudguard

Triumph TXP-12 · 2026 · Bodywork · 8 parts · 1 on the shelf in Brea

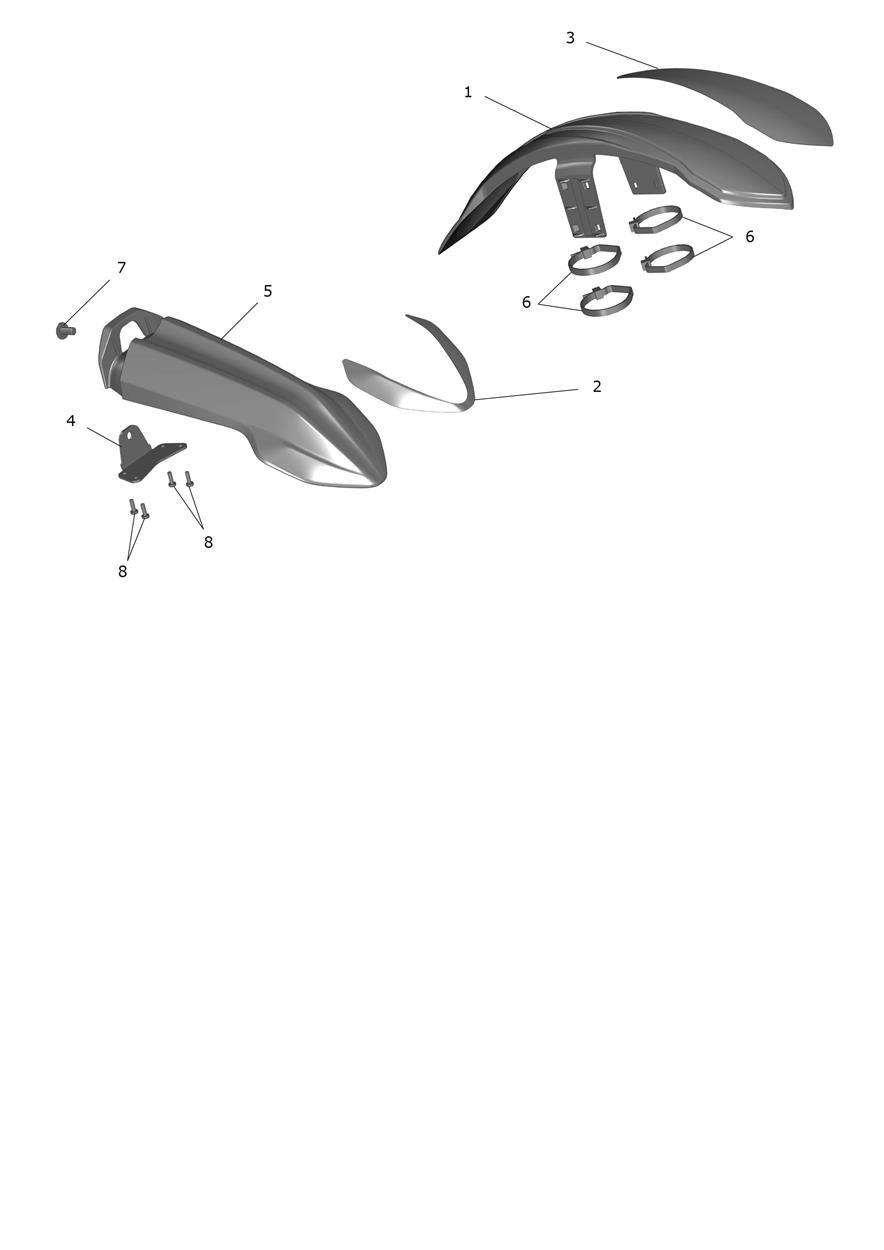

Exploded parts diagram — Front Mudguard, Triumph TXP-12

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2312874
Mudguard, Front, Mldg, 280mm
Qty 1
Backordered at Triumph · no date yet
$7.32
On backorder Shipping quote or pickup
2
T2314236
Decal, Tri TXP, Fr, Mguard, SML
Qty 1
$7.15
Available
3
T2314285
Decal, Tri TXP-12, Trls Mudguard
Qty 1
$8.12
Available
4
T2314401
Fr Mguard Brkt, SML, Stl
Qty 1
$7.15
Available
5
T2314405
Fr Mudguard, Mldg, XSM, Blk
Qty 1
$7.15
Available Shipping quote or pickup
6
T3700016
Cable Tie, 370 Long
Qty 4
$1.99
In stock in Brea
7
TOS30070
Bolt, M6X12Mm, Flgd, 10.9, Blk
Qty 1
$1.99
Available
8
TOS30086
Screw, Pan Head, 3.5X10Mm, A2
Qty 4
Backordered at Triumph · we’ll confirm the ship date after you order
$5.85
On backorder

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
