Rear Wheel

Triumph TXP-12 · 2026 · Brakes & Wheels · 20 parts

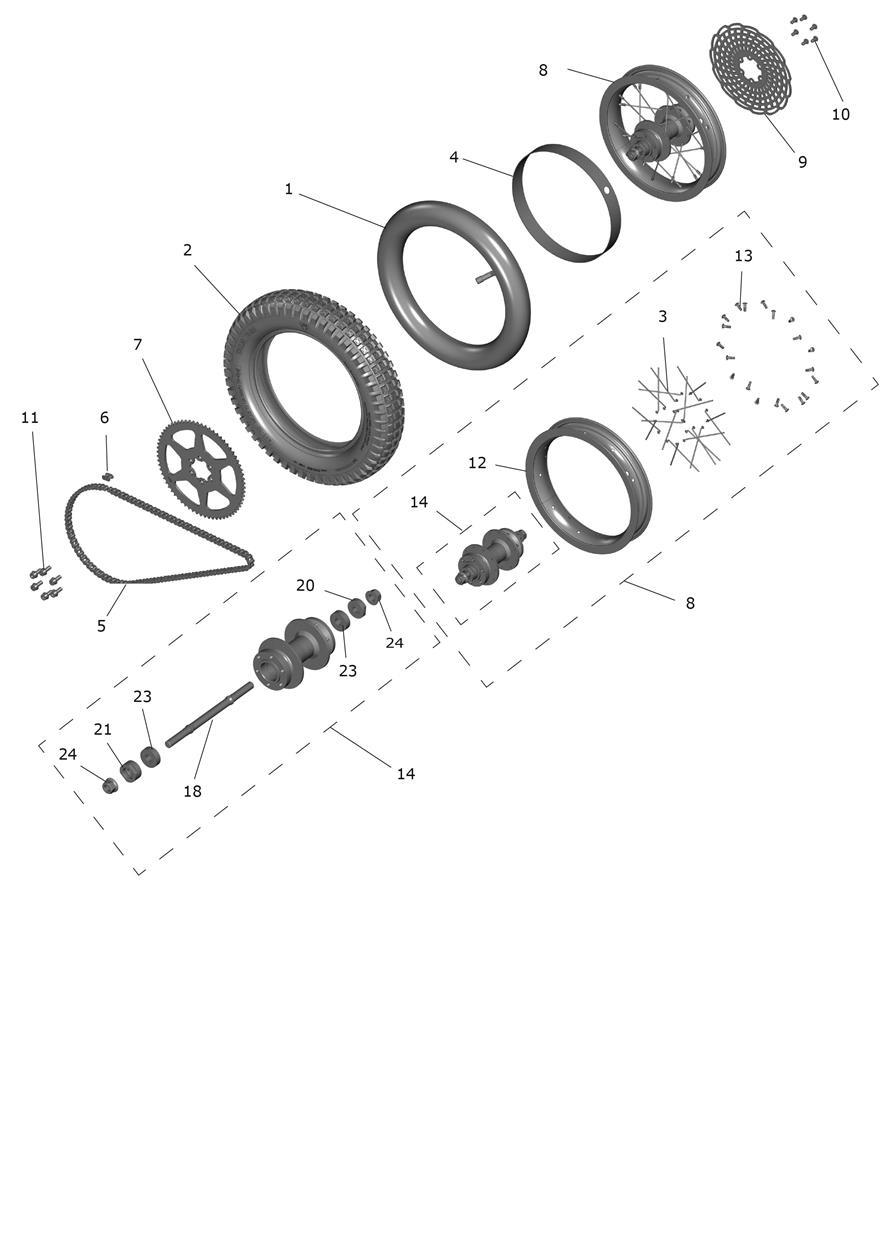

Exploded parts diagram — Rear Wheel, Triumph TXP-12

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2001082
Tube, 12X2.50" BC
Qty 1
$5.45
Available
2
T2001207
Tyre, Trials, BC, 12X2.50"
Qty 1
$17.72
Available Shipping quote or pickup
3
T2013283
Spoke, 14G, 73MM, Blk
Qty 10
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
3
T2013280
Spoke, 14G, 71MM, Blk
Qty 10
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
4
T2003013
Rim Tape, 12"X25Mm
Qty 1
Backordered at Triumph · expected Nov 6
$4.37
On backorder
5
T2011399
Chain, #219, 12MM, 110 Links
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$10.82
On backorder
6
T2014076
Masterlink, #219, 12Mm, Gold
Qty 1
$12.50
Available
7
T2011432
Rr Sprocket, 68T, Steel, Blk
Qty 1
$22.67
Available
8
T2013450
Rear Wheel, 12" BC, Blk
Qty 1
$130.25
Available
9
T2022776
Brk Rotor, Solid, 160Mm
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$26.36
On backorder
10
T2022991
Bolt, M5X10Mm, Torx, Blk
Qty 6
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
11
TOS30005
Bolt,M6X16Mm,Cap+Wash,10.9,Blk
Qty 6
$1.99
Available
12
T2003268
Rim, 12X1.25" BC, Blk
Qty 1
Backordered at Triumph · no date yet
$81.25
On backorder Shipping quote or pickup
13
T2003274
Nipple, 14GX14Mm, Chrome
Qty 20
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
14
T2011463
Hub, Rr, 12X125, 20H, Alu, Blk
Qty 1
Backordered at Triumph · no date yet
$65.00
On backorder Shipping quote or pickup
18
T2011431
Axle, Rr, Bolt on, Steel, Blk
Qty 1
Availability unconfirmed
No longer available
Not on our shelf Ask the parts desk
20
T2011465
Nut, Hub Bearing, Alu, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
21
T2011466
Nut, Hub Bearing, Alu, Blk
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
23
TOS30072
Bearing, RS, 10X26X8Mm
Qty 2
Availability unconfirmed
No longer available
Not on our shelf Ask the parts desk
24
TOS30075
Nut, Axle, 3-8" 26TPI, Blk
Qty 2
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
