Motor

Triumph TXP-12 · 2026 · Accessories · 6 parts

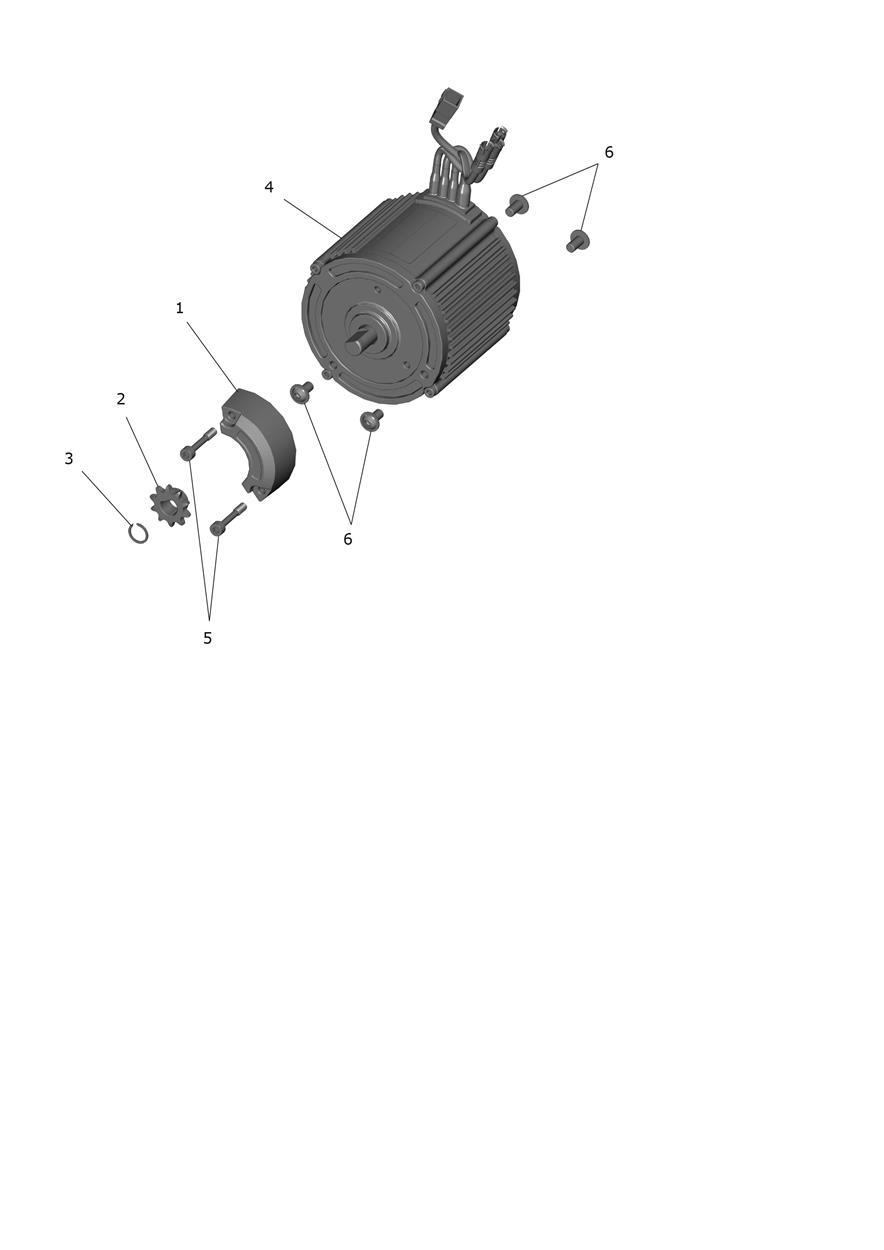

Exploded parts diagram — Motor, Triumph TXP-12

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1180529
Guard,Sprocket,Front,Lrg,Blk
Qty 1
$12.08
Available
2
T1180534
Front Sprocket, 10T, D-Shaft
Qty 1
$90.86
Available
3
T3500219
Circlip, DIN 471011
Qty 1
$2.53
Available
4
T5100018
BLDC Motor Assy, 44V, 600W
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$335.35
On backorder
5
TOS30046
Bolt, M5X30Mm, Cap, Captive, Blk
Qty 2
$2.15
Available
6
TOS30070
Bolt, M6X12Mm, Flgd, 10.9, Blk
Qty 4
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
