Rear Swinging Arm

Triumph TXP-12 · 2026 · Chassis & Suspension · 21 parts · 1 on the shelf in Brea

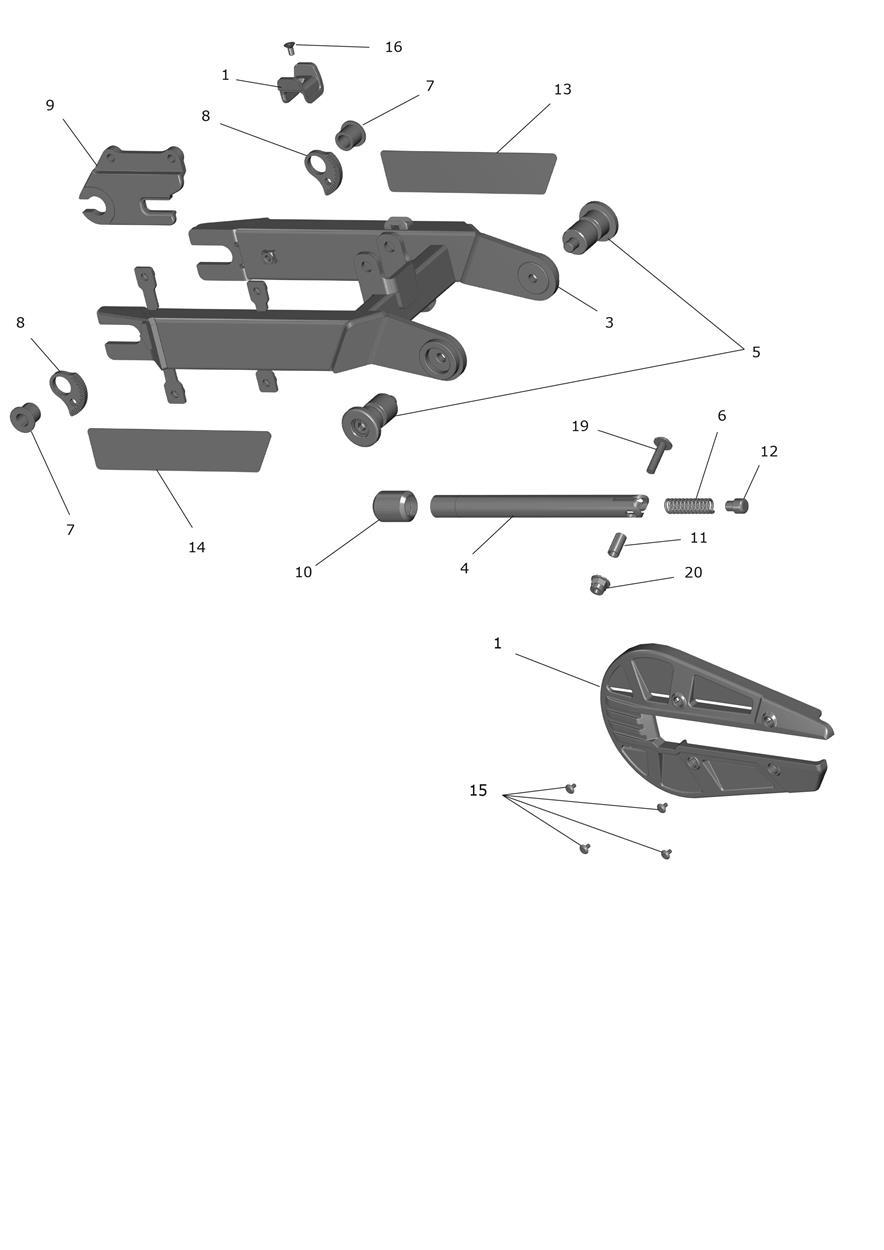

Exploded parts diagram — Rear Swinging Arm, Triumph TXP-12

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2050827
Chain Guide, Moulded, Black
Qty 1
$1.99
Available
2
T2051026
Chain Guard, XSM, Mldg, BLk
Qty 1
$4.45
Available
3
T2051442
Swingarm, TXP-12, Pntd, Blk
Qty 1
$113.02
Available Shipping quote or pickup
4
T2051521
Side Stand Rob, Steel, Blk
Qty 1
$8.03
Available Shipping quote or pickup
5
T2050825
Swingarm Axle, Assy, Blk
Qty 1
$21.20
Available
6
T2053605
Compression Spring, SS
Qty 1
$1.99
Available
7
T2053616
Snail Cam Top Hat Sleeve, Alu
Qty 2
$3.48
Available
8
T2053617
Snail Cam, Alu
Qty 2
$1.99
Available
9
T2053626
Caliper Sliding Mount 160 ISO
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$15.13
On backorder
10
T2053620
Side Stand Boot, Blk
Qty 1
$1.99
Available Shipping quote or pickup
11
T2053621
Side Stand Sleeve, SS
Qty 1
$2.27
Available Shipping quote or pickup
12
T2053622
Side Stand Spring Top Hat, Blk
Qty 1
Availability unconfirmed
No longer available
Not on our shelf Ask the parts desk
13
T2055175
Decal, Tri TXP-12, SARM, Lhs
Qty 1
$8.12
Available
14
T2055176
Decal, Tri TXP-12 SARM, Rhs
Qty 1
$8.12
Available
15
T3331061
Bolt, But/Hd, M5 x 11, Shld, Slv
Qty 1
$4.65
In stock in Brea
16
TOS30007
Bolt, M4X8Mm, Csk, SS A2
Qty 1
$1.99
Available
17
TOS30021
Bolt, M5X10Mm, Flgd, 10.9, Blk
Qty 1
$1.99
Available
18
TOS30064
Circlip, Internal, 14Mm
Qty 2
$1.99
Available
19
TOS30079
Bolt, M6X25Mm, Flgd Butt, A2
Qty 1
$1.99
Available
20
T3350305
Locknut, Flgd, M6 x 1.0, Slv
Qty 1
$1.99
Available
21
TOS30081
Bolt, M8X35Mm, Cap, 10.9, Blk
Qty 2
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
