Rear Suspension Unit

Triumph TF 450-X · 2026 · Chassis & Suspension · 19 parts · 1 on the shelf in Brea

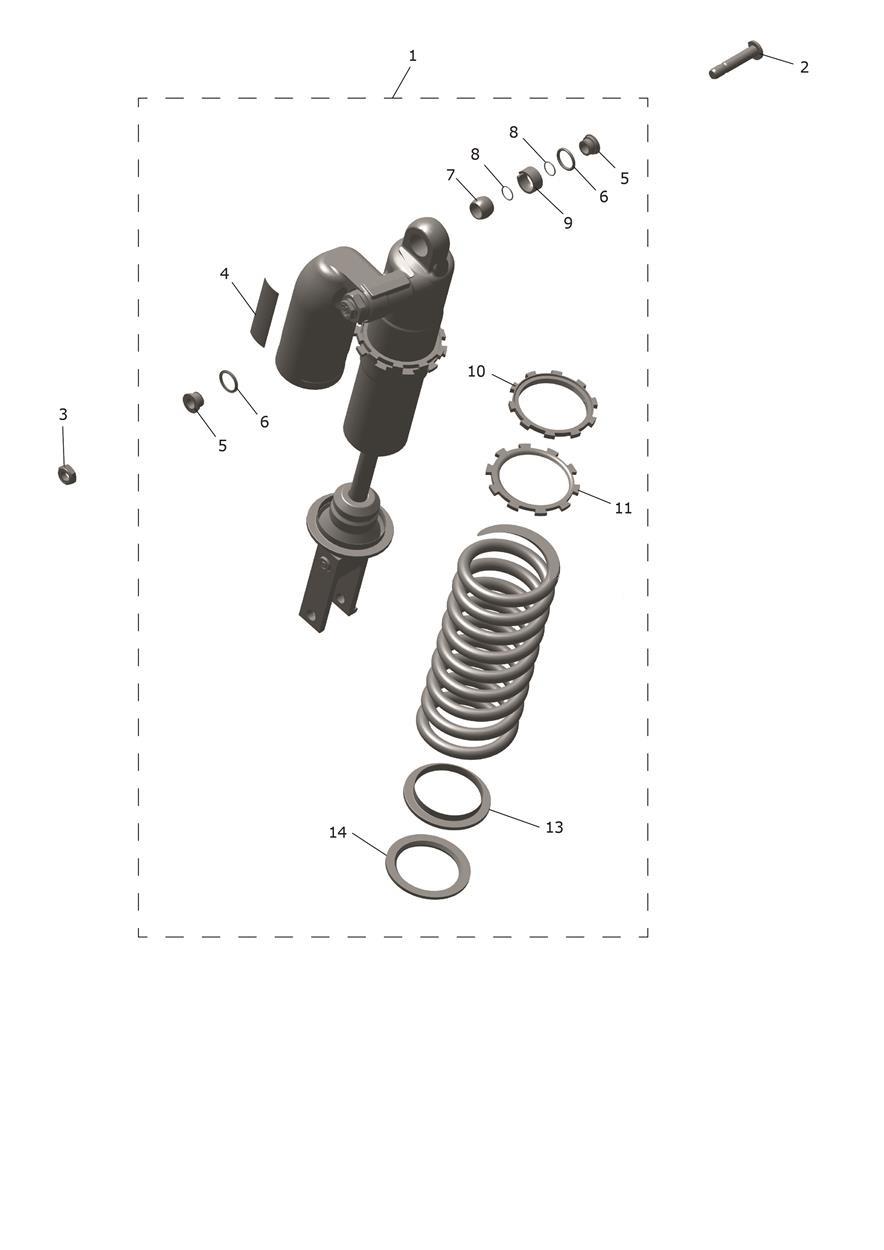

Exploded parts diagram — Rear Suspension Unit, Triumph TF 450-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2054044
Rear Suspension Unit
Qty 1
$978.42
In stock in Brea
2
T2050906
Bolt, M10 x 1.25 x 52
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$4.12
On backorder
3
T3350134
Locknut, M10 x 1.25
Qty 1
$2.35
Available
4
T2058188
Decal, Rear Suspension Unit
Qty 1
$2.03
Available
5
T2055317
Spacer, Upper Mount
Qty 2
$10.10
Available
6
T2055315
Dust Seal
Qty 2
Backordered at Triumph · expected Nov 6
$1.99
On backorder
7
T2055313
Bearing, Spherical
Qty 1
$68.94
Available
8
T2055316
O Ring
Qty 2
$1.99
Available
9
T2055314
Circlip
Qty 1
$2.03
Available
10
T2053144
Locking Ring
Qty 1
$17.47
Available
11
T2053143
Adjuster Ring
Qty 1
$15.82
Available
13
T2055319
Spring, Guide
Qty 1
$7.15
Available
14
T2055318
Spring, Seat
Qty 1
$28.13
Available
15
T2051866
Spring Kit, RSU, K52
Qty 1
$172.66
Available
16
T2051867
Spring Kit, RSU, K54
Qty 1
$251.46
Available
17
T2051868
Spring Kit, RSU, K56
Qty 1
$251.46
Available
18
T2051869
Spring Kit, RSU, K58
Qty 1
Low stock at Triumph
$251.46
Limited availability
19
T2051870
Spring Kit, RSU, K60
Qty 1
$251.46
Available
21
T2053142
Label, Warning
Qty 1
Not Illustrated
$2.47
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
