Front Forks & Lower Yoke

Triumph TF 450-X · 2026 · Chassis & Suspension · 44 parts · 10 on the shelf in Brea

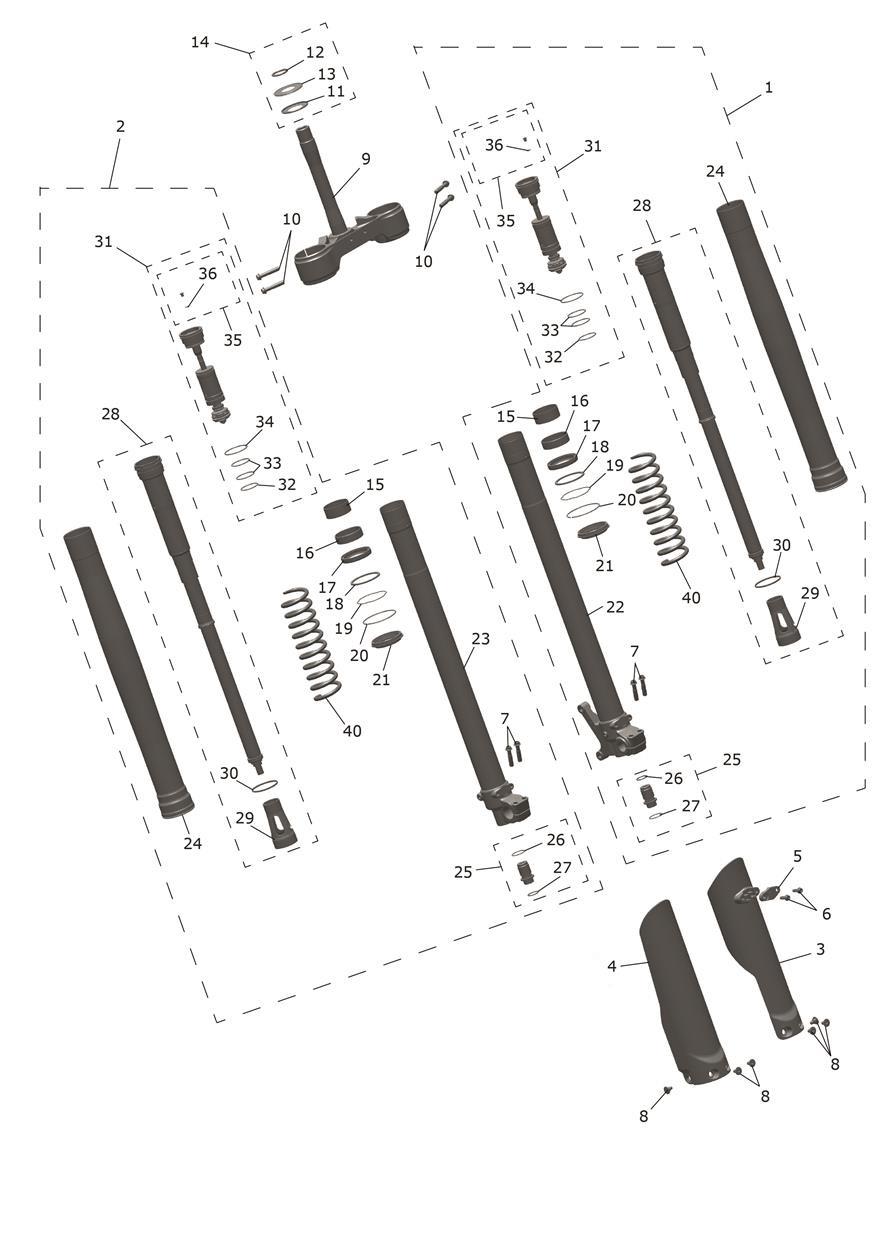

Exploded parts diagram — Front Forks & Lower Yoke, Triumph TF 450-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2046481
Front Fork, LH
Qty 1
This part is coated with a high performance anodising. It is normal for some colour variation when purchasing replacement parts
$1126.41
In stock in Brea Shipping quote or pickup
2
T2046482
Front Fork, RH
Qty 1
This part is coated with a high performance anodising. It is normal for some colour variation when purchasing replacement parts
$1126.41
In stock in Brea Shipping quote or pickup
3
T2044728
Guard, Fork Mldg, LH
Qty 1
$32.29
Available
4
T2044727
Guard, Fork Mldg, RH
Qty 1
$32.29
In stock in Brea
5
T2044686
Clamp, Brake Hose
Qty 1
Low stock at Triumph
$4.12
Limited availability
6
T3336102
Screw, S/Tap, HHF, 6 x 20, PT
Qty 2
$2.53
In stock in Brea
7
T3200885
Bolt, TX Lghtd, M8 x 35, Slv
Qty 4
Not included in Fork Assembly
$3.29
In stock in Brea
8
T3201071
Bolt, TX, Shld, M x 12, Slv
Qty 6
$2.47
Available
9
T2046421
Lower Yoke Assembly
Qty 1
$452.21
Available
10
T3200886
Bolt, TX, Lghtd, M8 x 40, Slv
Qty 4
$3.29
Available
11
T3602516
Seal, Headstock, Lower
Qty 1
$5.77
Available
12
T2043810
O Ring, ID 25 x 3.5
Qty 1
$1.99
Available
13
T3602517
Seal, Headstock, Upper
Qty 1
$5.77
Available
14
T2044356
Bearing Kit, Headstock
Qty 1
Also Contains 2 x T3800610
$49.70
Available
15
T2045320
Bush, Inner Tube
Qty 2
$10.73
Available
16
T2045315
Bush, Outer Tube
Qty 2
Low stock at Triumph
$8.80
Limited availability
17
T2045317
Oil Seal
Qty 2
$14.88
In stock in Brea
18
T2045316
Washer, Oil Seal
Qty 2
$2.21
Available
19
T2045318
Snap Ring, Oil Seal
Qty 2
$2.93
Available
20
T2045314
Snap Ring
Qty 2
$2.93
Available
21
T2045319
Dust Seal
Qty 2
$13.96
In stock in Brea
22
T2045321
Tube, Inner, LH
Qty 1
Low stock at Triumph
$330.32
Limited availability
23
T2045322
Tube, Inner, RH
Qty 1
$316.75
Available
24
T2045313
Outer Tube
Qty 2
$434.36
Available
25
T2045323
Bolt, Cartridge Assembly
Qty 2
$36.03
Available
26
T2045324
Sealing Washer
Qty 2
$4.24
Available
27
T2045325
O Ring
Qty 2
$1.99
Available
28
T2045306
Cartridge Assembly
Qty 2
Backordered at Triumph · expected Nov 6
$397.80
On backorder
29
T2045331
Spring Seat, Upper
Qty 2
Low stock at Triumph
$32.09
Limited availability
30
T2045333
O Ring
Qty 2
$4.24
Available
31
T2045307
Base Valve Assembly
Qty 2
$172.95
Available
32
T2045335
O Ring
Qty 2
$1.99
Available
33
T2045336
O Ring
Qty 4
$1.99
Available
34
T2045337
O Ring
Qty 2
$1.99
Available
35
T2045338
Bleed Screw Assembly
Qty 2
$5.16
In stock in Brea
36
T2045339
O Ring
Qty 2
$1.99
Available
36
T2045341
Fork Seal Kit
Qty 1
Contains item 17 & 21
$35.00
In stock in Brea
37
T2045342
Fork Bush Kit
Qty 1
Contains item 15 & 16
$24.00
In stock in Brea
38
T2046587
Fork Decal, LH
Qty 1
Not Illustrated
$25.91
Available
39
T2046584
Fork Decal, RH
Qty 1
Not Illustrated
$25.91
Available
40
T2048919
Spring Kit, Front Fork, K4.8
Qty 2
$97.64
Available Shipping quote or pickup
40
T2048920
Spring Kit, Front Fork, K4.9
Qty 2
Low stock at Triumph
$97.64
Limited availability Shipping quote or pickup
40
T2048921
Spring Kit, Front Fork, K5.0
Qty 2
$82.22
Available Shipping quote or pickup
40
T2048922
Spring Kit, Front Fork, K5.1
Qty 2
$82.22
Available Shipping quote or pickup

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
