Rear Bodywork

Triumph TF 450-X · 2026 · Bodywork · 11 parts · 9 on the shelf in Brea

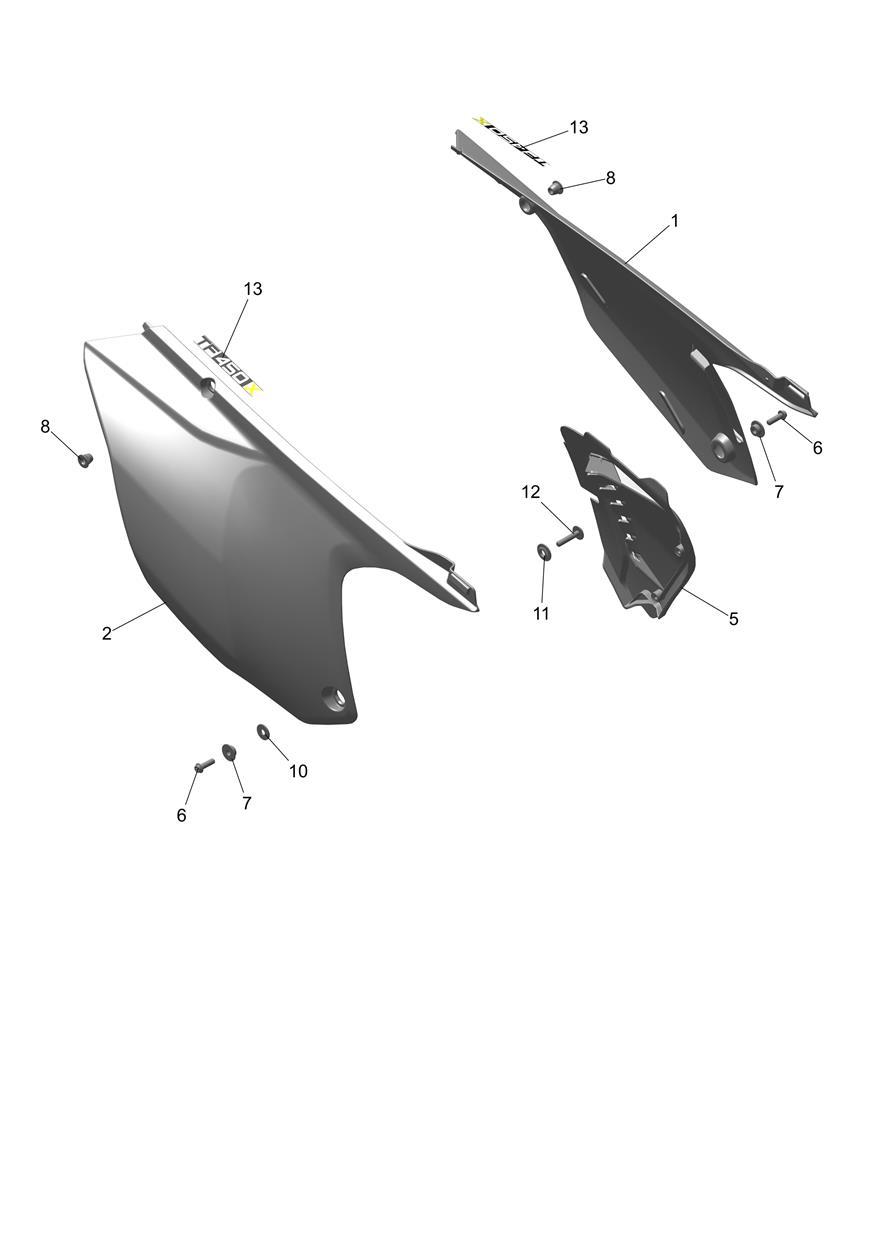

Exploded parts diagram — Rear Bodywork, Triumph TF 450-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2313663
Cover, Airbox, LH, Mldg
Qty 1
$59.87
In stock in Brea
2
T2313667
Cover Airbox, RH, Mldg
Qty 1
If the last 6 of your VIN are CP1122 or lower
$59.87
In stock in Brea
2
T2314667
Cover, Airbox, RH, Mldg
Qty 1
If the last 6 of your VIN are CP1123 or higher
Backordered at Triumph · we’ll confirm the ship date after you order
$59.86
On backorder
3
T2314449
Vented Panel, Air Filter
Qty 1
$22.00
In stock in Brea
6
T3330446
Bolt, Lge, M6 x 1 x 20, Slv
Qty 1
$1.99
In stock in Brea
7
T3750036
Insert, Press-In, Sltd, 13 x 15.5 x 6
Qty 1
$16.69
Available
8
T3350503
Insert, Press In
Qty 2
$4.81
In stock in Brea
10
T3555026
Washer, 6.4 x 18 x 1.6
Qty 1
$1.99
In stock in Brea
11
T3750042
Insert, Press-In, 8 x 13 x 3.7
Qty 1
$9.63
In stock in Brea
12
T3330451
Bolt, Lge, TX, M6 x 30, Slv
Qty 1
$1.99
In stock in Brea
13
T2313261
Decal, Model, TF450X
Qty 2
$26.62
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
