Side Panels

Triumph TF 450-X · 2026 · Bodywork · 5 parts · 2 on the shelf in Brea

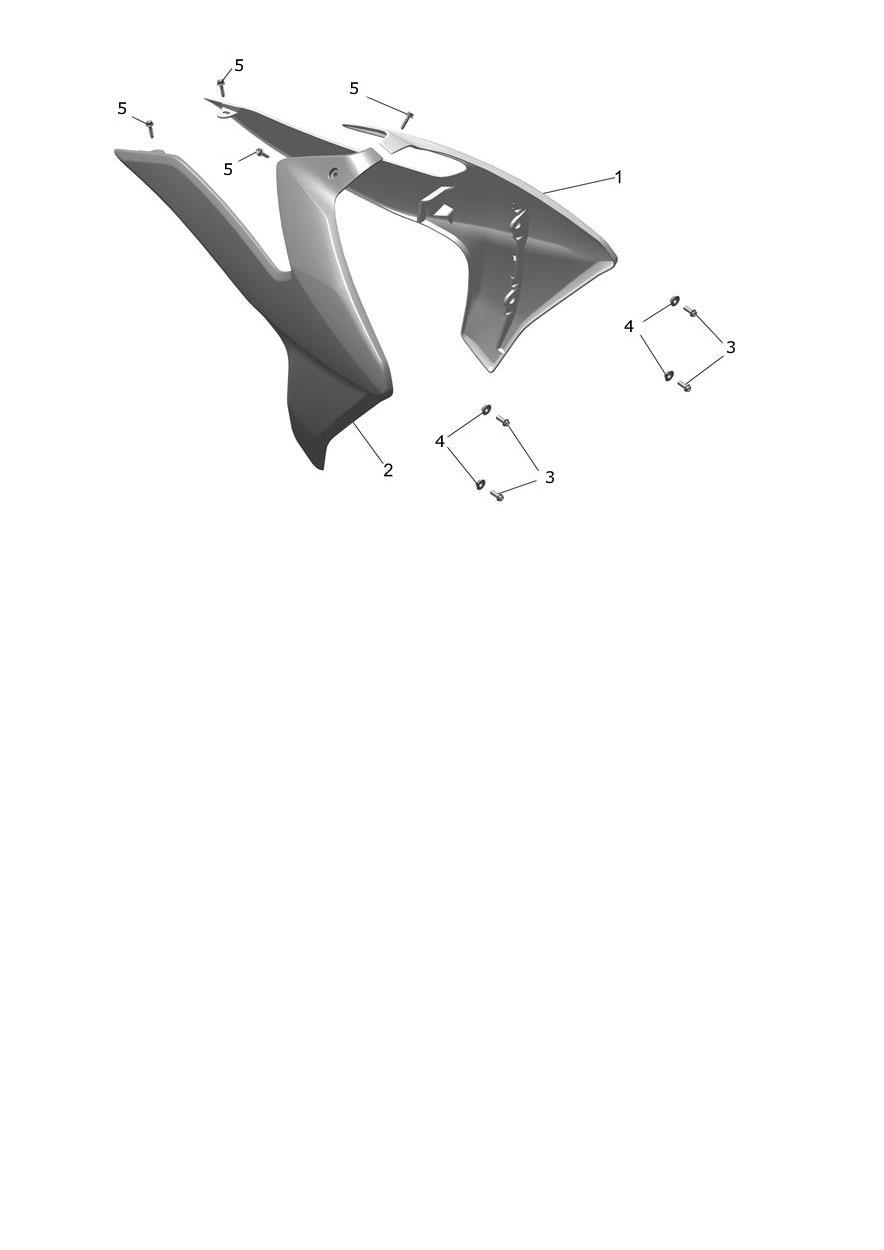

Exploded parts diagram — Side Panels, Triumph TF 450-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2313590
Cover, Fuel Tank, LHS
Qty 1
$46.57
Available
2
T2313591
Cover, Fuel Tanks, RHS
Qty 1
$46.57
Available
3
T3200662
Bolt, TX, Lghtd, M6 x 16, Slv
Qty 4
$2.47
Available
4
T3700705
Bushing, OD16 x ID7
Qty 4
$8.22
In stock in Brea
5
T3336102
Screw, S/Tap, HHF, 6 x 20, PT
Qty 4
$2.53
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
