Engine Covers

Triumph TF 450-X · 2026 · Engine · 21 parts · 8 on the shelf in Brea

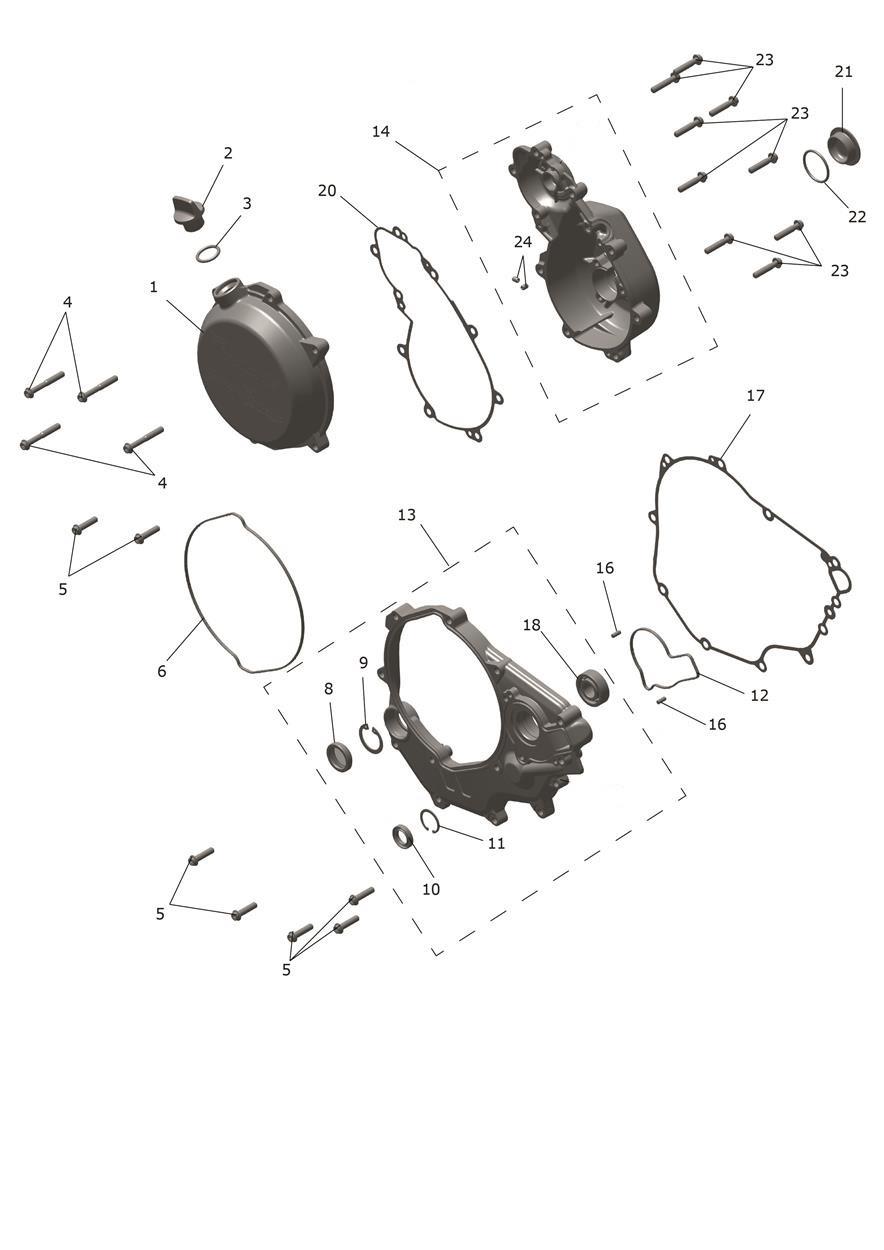

Exploded parts diagram — Engine Covers, Triumph TF 450-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1

Cover, Clutch Basket

Qty 1

Low stock at Triumph

$139.70

Limited availability

2

Qty 1

$19.80

In stock in Brea

3

O Ring, ID 19 x 3

Qty 1

$11.68

Available

4

Bolt, TX, Lghtd, M6 x 45, Slv

Qty 4

$3.51

Available

5

Bolt, TX, Lghtd, M6 x 25, Slv

Qty 7

$3.29

In stock in Brea

6

Seal, Formed, Clutch Cover

Qty 1

$4.85

In stock in Brea

8

Qty 1

$16.00

Available

9

Circlip, Int Dia 81.4 x 1.2

Qty 1

$1.99

Available

10

Seal, Rotary, 14 x 24 x 5

Qty 1

$4.12

Available

11

Circlip, DIN472.24 x 1.2

Qty 1

Low stock at Triumph

$1.99

Limited availability

12

Gasket, Water Pump

Qty 1

$9.92

In stock in Brea · last ones

13

Clutch Cover, Inner, Assy

Qty 1

Also Contains T3500092 & 2 x T3600277

Low stock at Triumph

$197.33

Limited availability

14

Alternator Cover Assembly

Qty 1

$156.22

In stock in Brea

16

Dowel, Dia 4.0 x 10

Qty 2

$2.03

Available

17

Gasket, Case, RH

Qty 1

$12.21

In stock in Brea

18

Bearing, Ball, 6202, 15 x 35 x 11

Qty 1

$5.57

Available

20

Gasket, Alternator Cover

Qty 1

$7.01

In stock in Brea

21

Plug, Alternator Cover

Qty 1

$16.45

In stock in Brea

22

O Ring, 30 x 2.5

Qty 1

$2.87

Available

23

Bolt, TX, Lghtd, M6 x 30, Slv

Qty 9

$3.29

Available

24

Restrictor, Oil

Qty 2

$6.16

Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
