Lubrication System

Triumph TF 450-X · 2026 · Engine · 38 parts · 10 on the shelf in Brea

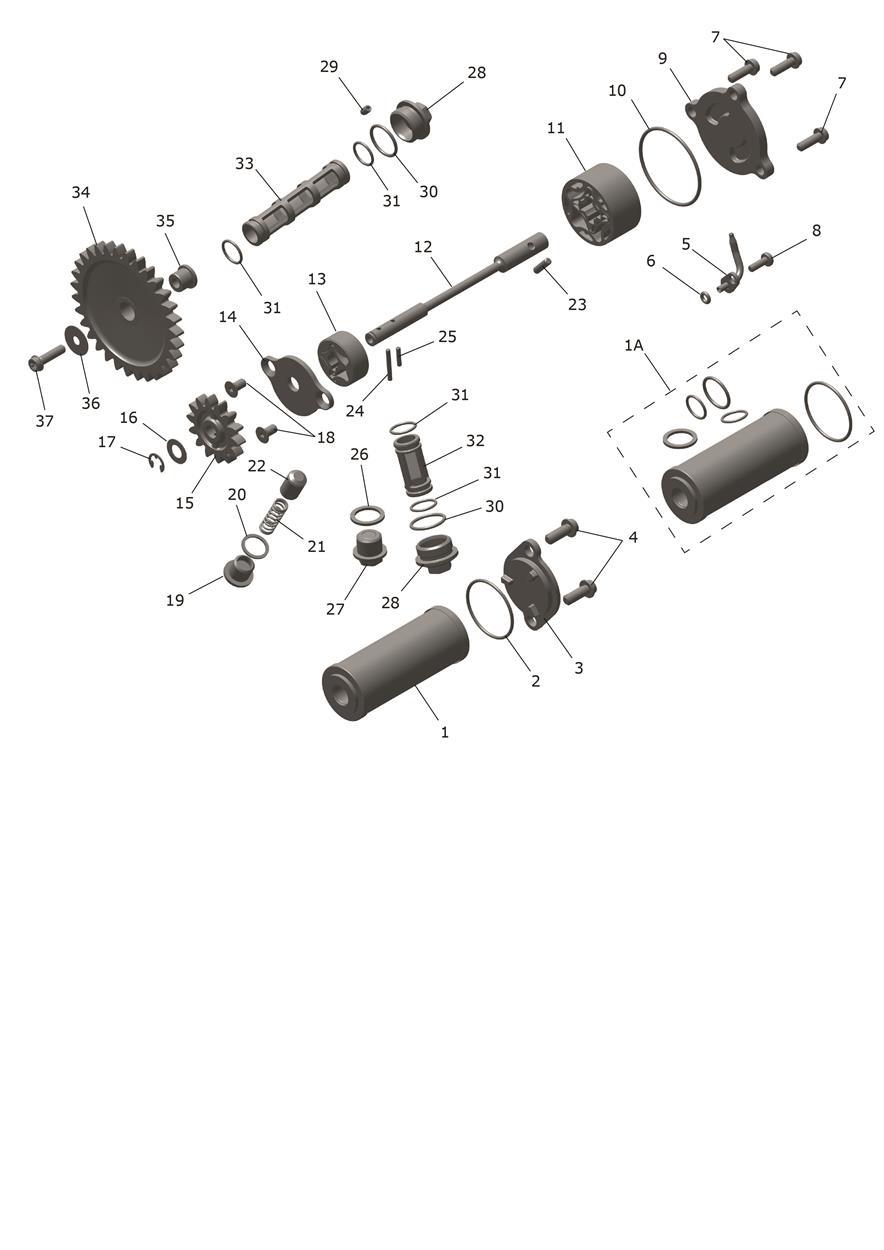

Exploded parts diagram — Lubrication System, Triumph TF 450-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1210378
Filter, Oil, Element
Qty 1
$11.78
In stock in Brea
1A
T1210391
Oil Filter Change Kit
Qty 1
Kit Contains items 1, 2, 26, 30 & 31
$18.60
In stock in Brea
2
T3600270
O Ring, ID33.05 x 1.78
Qty 1
$1.99
Available
3
T1210379
Cover, Oil Filter
Qty 1
$25.49
In stock in Brea
4
T3200670
Bolt, TX, Lghtd, M6 x 16, Enc
Qty 2
$3.29
Available
5
T1212352
Spray Jet, Piston, 50
Qty 1
$13.01
Available
6
T3600266
O Ring, ID3.5 x 2
Qty 1
$1.99
Available
7
T3200553
Bolt, TX, M5 x 16, Enc
Qty 3
$1.99
Available
8
T3330452
Screw, Pan/Hd, TX, M4 x 0.7 x 12, Blk
Qty 1
$1.99
Available
9
T1210383
Cover, Oil, Rotor, Dia 40
Qty 1
Low stock at Triumph
$15.18
Limited availability
10
T3600271
O Ring, ID44 x 2
Qty 1
Low stock at Triumph
$1.99
Limited availability
11
T1210337
Gerotor Set, Oil, Plastic, Assy
Qty 1
$110.92
In stock in Brea
12
T1210409
Shaft Drive, Oil Pump
Qty 1
$57.56
Available
13
T1210339
Gerotor Set, Oil Pump, Assy
Qty 1
$7.08
In stock in Brea
14
T1210355
Cover, Oil Rotor, Dia 29
Qty 1
$14.91
Available
15
T1212360
Gear, Oil Pump, Plastic, 14T
Qty 1
Low stock at Triumph
$13.91
Limited availability
16
T3550341
Washer, 8.1 x 15 x 0.5
Qty 1
$1.99
In stock in Brea
17
T3500107
Circlip, E-Type, 6 x 0.7
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
18
T3331865
Screw, Skt Csk, M5 x 10, Slv, Enc
Qty 2
$5.25
In stock in Brea
19
T3450209
Plug, PRV, M12 x 10
Qty 1
$8.22
In stock in Brea
20
T3550571
Washer, Cu, OD 16 x ID 12.5
Qty 1
$4.70
Available
21
T1210766
Spring, PRV, 29mm
Qty 1
$2.15
Available
22
T1210696
Piston, PRV, 11mm
Qty 1
$7.09
In stock in Brea
23
T3000117
Pin, 4.0 x 14.8
Qty 1
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorder
24
T3000116
Pin, 2.5 x 19.8
Qty 1
Low stock at Triumph
$1.99
Limited availability
25
T3000115
Pin, 2.5 x 11.8
Qty 1
Low stock at Triumph
$1.99
Limited availability
26
T3550547
Washer, Cu, OD19 x ID14.2
Qty 1
$4.00
Available
27
T3450216
Sump Plug, M14 x 1.5 x 10, Aluminium
Qty 1
$15.97
In stock in Brea
28
T3450207
Plug, Oil Strainer, M20 x 8
Qty 2
$16.45
Available
29
T1210392
Oil Jet, 0.7
Qty 1
$5.25
Available
30
T3600273
O Ring, ID17.17 x 1.78
Qty 2
$1.99
Available
31
T3600272
O Ring, ID12.5 x 1.5
Qty 4
$1.99
Available
32
T1210386
Strainer, Oil, Scavenge
Qty 1
$16.45
Available
33
T1210360
Strainer, Oil, Dia 15 x 74
Qty 1
$32.89
Available
34
T1212362
Gear, Drive, Oil Pump, Plastic, 31T
Qty 1
$43.37
Available
35
T1210376
Shaft, Idler, Oil Pump
Qty 1
$7.89
Available
36
T3550337
Washer, 5.3 x 18 x 0.5
Qty 1
$2.64
Available
37
T3200554
Bolt, TX, M5 x 20, Eng
Qty 1
$3.29
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
