Electrical System

Triumph TF 450-RC Edition · 2025 · Electrical · 38 parts · 5 on the shelf in Brea

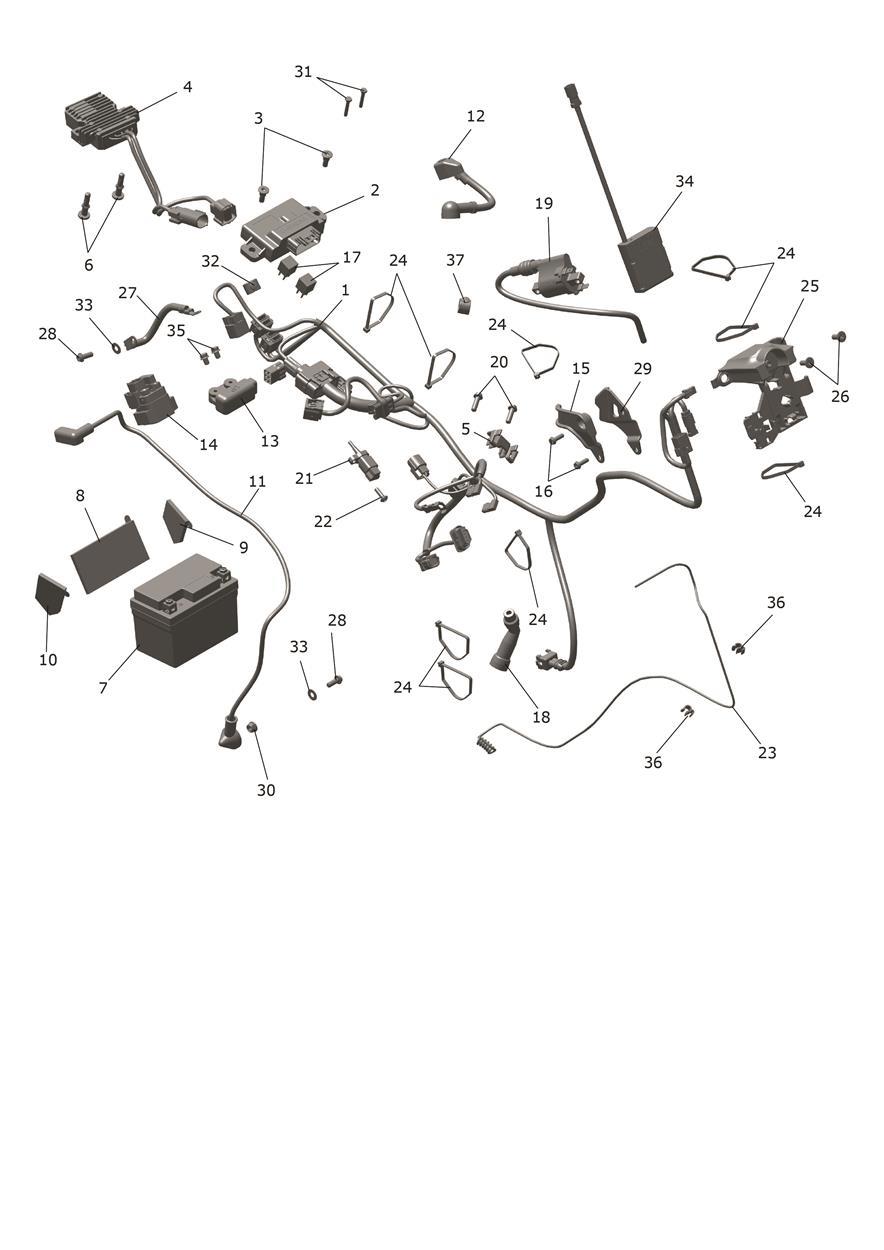

Exploded parts diagram — Electrical System, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2505522
Main Harness
Qty 1
$386.44
Available
2
T1290625
ECU, MX, EN, Spares
Qty 1
$452.21
In stock in Brea
3
T3201072
Bolt, TX, Shld, M6 x 18, Slv
Qty 2
Low stock at Triumph
$2.47
Limited availability
4
T2504957
Regulator Rectifier, 1PH, HS
Qty 1
$246.66
Available
5
T2506888
Bracket, Coil Connector
Qty 1
$7.32
Available
6
T2506664
Mount, Rubber, Prong
Qty 2
$1.99
Available
7
T2504269
Battery, Lithium Ion, 2AH
Qty 1
All Markets Except EF/ER/GR
$87.81
In stock in Brea
7
T2506736
Kit, Battery, Lithium, 2AH OES
Qty 1
EF/ER/GR Markets Only
Backordered at Triumph · we’ll confirm the ship date after you order
$119.74
On backorder
8
T2504156
AV Pad
Qty 1
Low stock at Triumph
$3.81
Limited availability
9
T2504298
AV Pad LHS
Qty 1
Low stock at Triumph
$4.04
Limited availability
10
T2504316
AV Pad RHS
Qty 1
Low stock at Triumph
$4.84
Limited availability
11
T2505260
Lead, Starter Motor
Qty 1
$26.12
Available
12
T2504138
Lead, Starter Solenoid
Qty 1
Low stock at Triumph
$15.82
Limited availability
13
T2502455
Fall Detection Switch
Qty 1
$78.32
Available
14
T2509944
Starter Solenoid
Qty 1
$57.56
Available
15
T2506844
Harness Guide
Qty 1
$4.52
Available
16
T3200553
Bolt, TX, M5 x 16, Enc
Qty 2
$1.99
Available
17
T2507729
Relay, Ultra Micro, ISO 280
Qty 2
$6.97
Available
18
T2504268
Cap, Spark Plug
Qty 1
$17.50
In stock in Brea
19
T2507155
Ignition Coil, Long
Qty 1
$32.89
Available
20
T3200663
Bolt, TX, Lghtd, M6 x 20, Slv
Qty 2
$2.47
Available
21
T1290088
Sensor, Air Temperature
Qty 1
$59.95
Available
22
T3331414
Screw, S/Tap, Tx, 5 x 16
Qty 1
$1.99
In stock in Brea
23
T2508059
Wire, Hour Meter
Qty 1
$2.96
Available
24
T3700015
Cable Tie, 185.7 Long
Qty 7
$1.99
Available
25
T2509098
Connector Bracket, Harness
Qty 1
$12.92
In stock in Brea
26
T3201075
Bolt, TX, Shld, M6 x 15, Slv
Qty 2
$2.47
Available
27
T2505898
Lead, Battery Earth
Qty 1
Low stock at Triumph
$10.89
Limited availability
28
T3200662
Bolt, TX, Lghtd, M6 x 16, Slv
Qty 2
$2.47
Available
29
T2509113
Guide, Throttle Cable
Qty 1
Low stock at Triumph
$5.69
Limited availability
30
T3350003
Locknut, Flanged, M6 x 1
Qty 1
$1.99
Available
31
T3330390
Screw, H/Hd, M4 x 25, Slv, Enc
Qty 2
$2.53
Available
32
T3700252
Rubber Band, 88mm
Qty 1
$8.88
Available
33
T3552002
Washer, M6 x 14 x 1
Qty 2
$1.99
Available
34
T2509821
WiFi Module
Qty 1
$353.55
Available
35
T3205077
Bolt, HHF, Lghtd, M6 x 8, Slv
Qty 2
$4.52
Available
36
T3701105
Clip, Twin, 6.5 - 2.5
Qty 2
$2.87
Available
37
T3700259
Rubber Band, 43mm
Qty 1
$3.61
Available
