Engine Management System

Triumph TF 450-RC Edition · 2025 · Electrical · 4 parts · 2 on the shelf in Brea

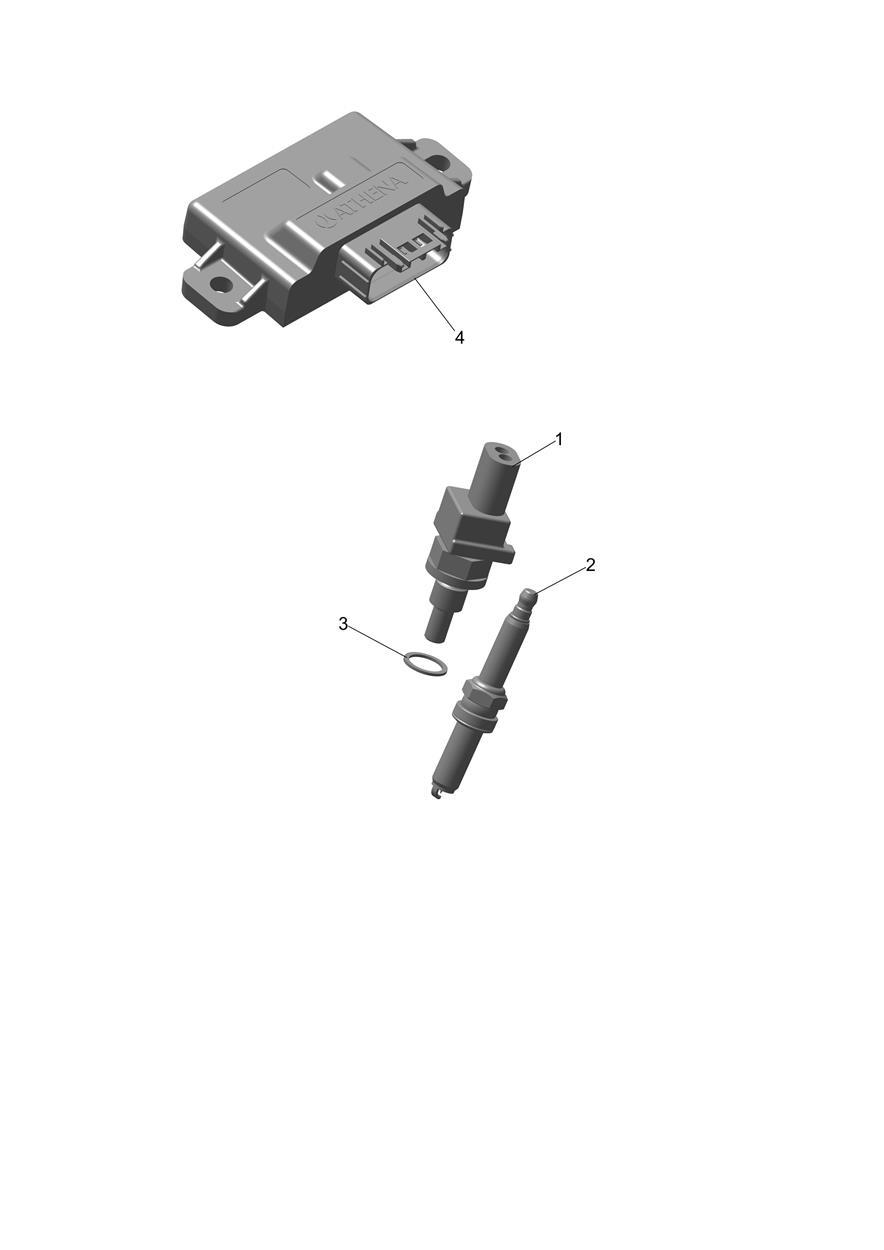

Exploded parts diagram — Engine Management System, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2100808
Sensor, Engine Coolant
Qty 1
$50.02
Available
2
T1290396
Spark Plug, NGK LMAR9AI-8
Qty 1
$31.93
In stock in Brea
3
T3550571
Washer, Cu, OD 16 x ID 12.5
Qty 1
$4.70
Available
4
T1290625
ECU, MX, EN, Spares
Qty 1
$452.21
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
