Rear Mudguard

Triumph TF 450-RC Edition · 2025 · Bodywork · 7 parts · 2 on the shelf in Brea

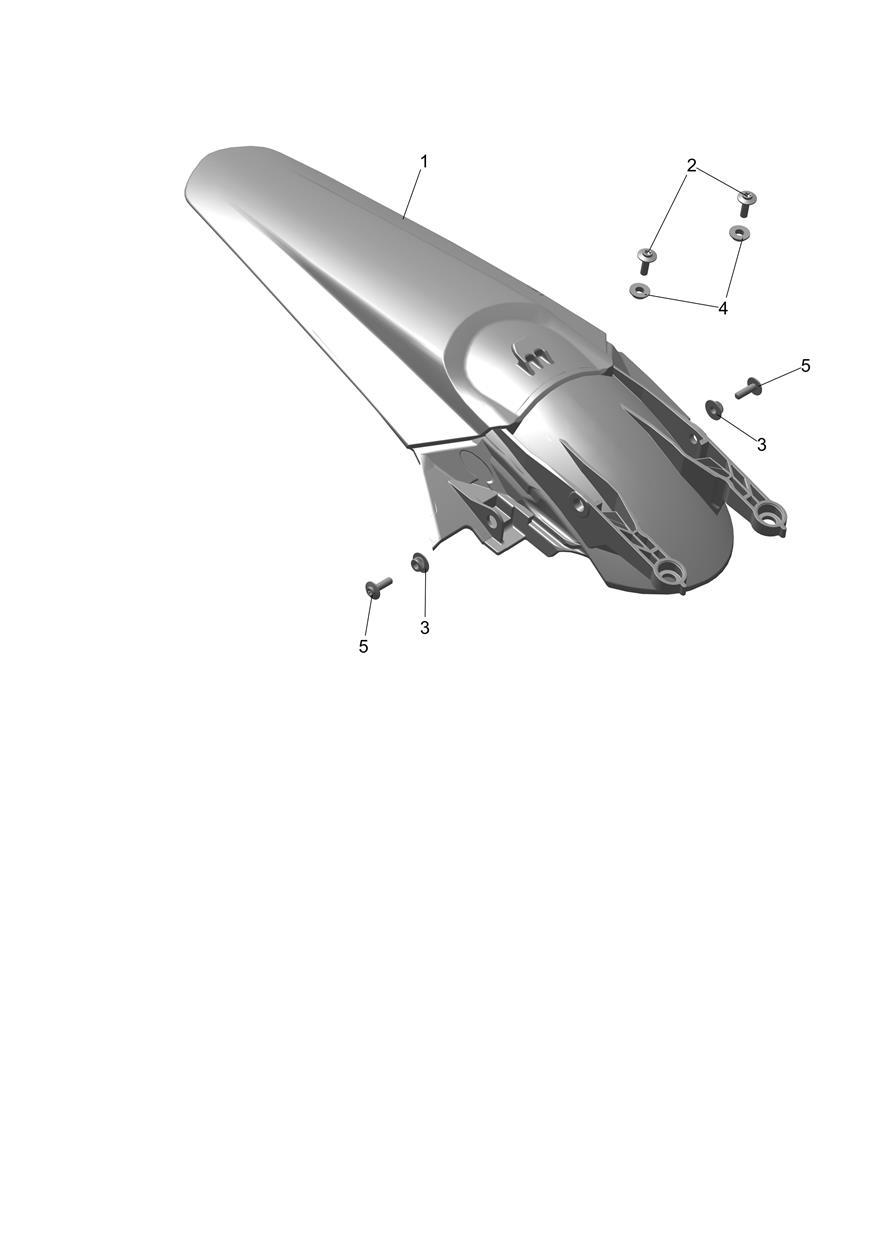

Exploded parts diagram — Rear Mudguard, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2313497
Rear Mudguard, Upper, MX
Qty 1
$65.78
In stock in Brea Shipping quote or pickup
2
T3330446
Bolt, Lge, M6 x 1 x 20, Slv
Qty 2
$1.99
In stock in Brea
3
T3750041
Insert, Press-In, 6.2 x 11.2 x 6.7
Qty 2
$10.76
Available
4
T3750035
Insert, Press In, 12 x 4.5 x 7.2
Qty 2
$9.99
Available
5
T3330469
Bolt, Lge TX, M6 x 20, Enc
Qty 2
$1.99
Available
6
T2313634
Decal, Rear Mudguard, LHS
Qty 1
$41.11
Available
7
T2313635
Decal, Rear Mudguard, RHS
Qty 1
$41.11
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
