Rear Wheel

Triumph TF 450-RC Edition · 2025 · Brakes & Wheels · 29 parts · 11 on the shelf in Brea

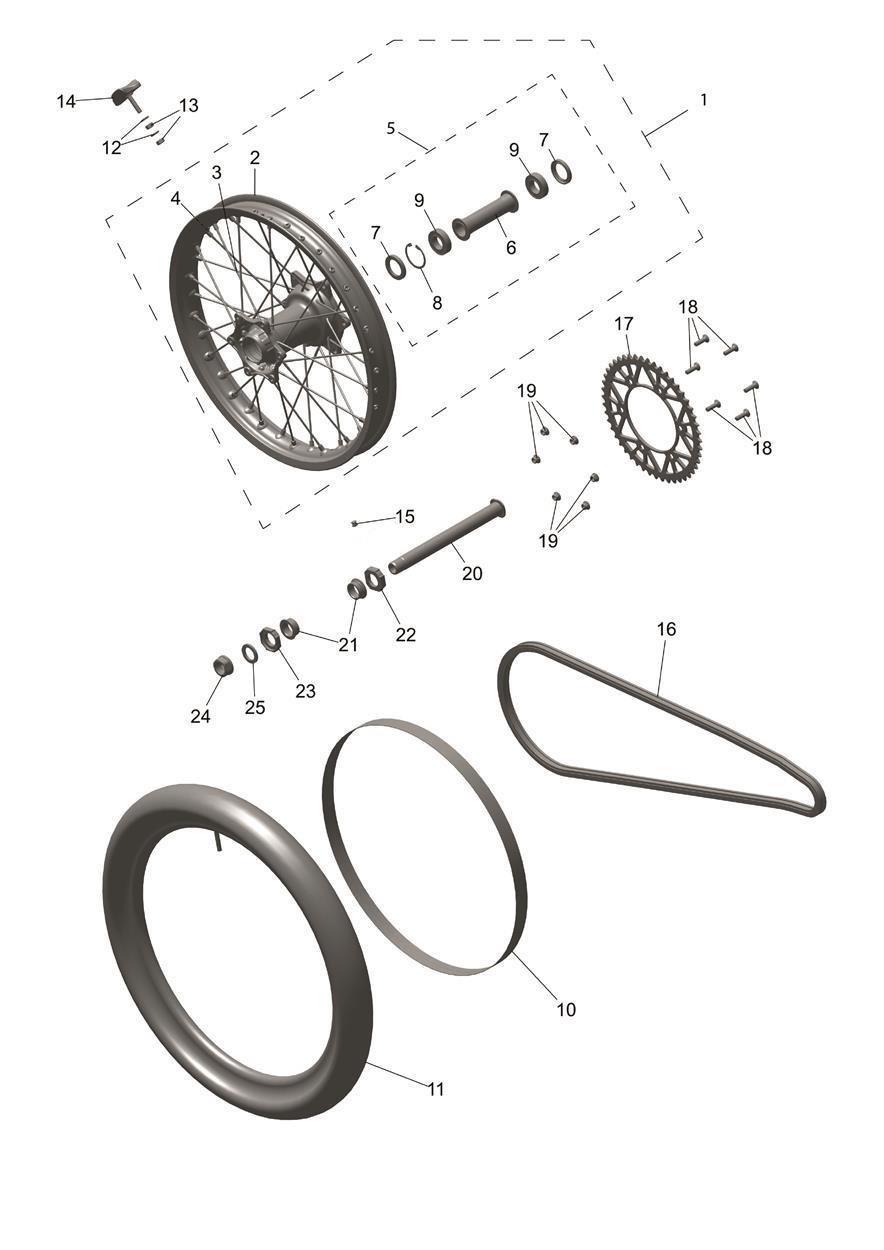

Exploded parts diagram — Rear Wheel, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2015046
Rear Wheel Assembly, 2.15 x 19
Qty 1
$854.35
Available Shipping quote or pickup
2
T2011138
Rim, 1.85 x 19
Qty 1
$485.10
Available Shipping quote or pickup
3
T2015038
Spoke, Wire, 200.5mm
Qty 36
$4.91
In stock in Brea
4
T2005037
Nipple, Aluminium, Spoke
Qty 36
Low stock at Triumph
$3.32
Limited availability
5
T2015093
Hub, Sub Assy
Qty 1
$352.95
Available Shipping quote or pickup
6
T2015054
Spacer, Wheel, Internal
Qty 1
$36.17
Available
7
T3600599
Oil Seal, 32 x 47 x 6
Qty 2
$4.47
In stock in Brea
8
T3500402
Circlip, Int Dia 47
Qty 1
$1.99
Available
9
T3800257
Bearing, Ball, 25 x 47 x 12
Qty 2
$15.58
Available
10
T2011318
Rim Band, 18-19 Inch
Qty 1
$9.92
Available
11
T2000964
Inner Tube, 100/90-19
Qty 1
$56.45
In stock in Brea
12
T3550405
Washer, M8 x 17 x 1.6
Qty 1
$1.99
Available
13
T3350303
Nut, M8, Silver
Qty 1
$1.99
Available
14
T2011345
Rim Lock, 2.15 Inch
Qty 1
Low stock at Triumph
$24.67
Limited availability
15
T2011157
Bung, Rim
Qty 1
$1.99
Available
16
T2015057
Chain, Final Drive, 520, 114L
Qty 1
$94.92
Available
17
T2015061
Rear Sprocket, 48T
Qty 1
$63.86
Available
18
T3200193
Bolt, CSK, Torx, M8 x 27, Enc
Qty 6
$2.11
In stock in Brea
19
T3350004
Locknut, Flanged, M8 x 1.25
Qty 6
$2.27
In stock in Brea
20
T2011135
Spindle, Rear Wheel
Qty 1
Low stock at Triumph
$74.00
Limited availability
21
T2011134
Spacer, Wheel, Rear
Qty 2
$24.67
In stock in Brea
22
T2011132
Block, Chain Adjuster, LH
Qty 1
$20.56
In stock in Brea
23
T2011131
Block, Chain Adjuster, RH
Qty 1
$20.56
In stock in Brea
24
T3350713
Locknut, M24 x 1.5, Thin
Qty 1
$19.86
Available
25
T3554203
Washer, 25 x 37 x 4
Qty 1
Low stock at Triumph
$3.32
Limited availability
26
T2015059
Clip Link, Drive Chain
Qty 1
Not Illustrated
$7.14
Available
27
T2018736
Spoke Kit, Rear
Qty 1
Contains 1 spoke and 1 nipple - Not Illustrated
$8.48
In stock in Brea
28
T2018737
Bearing Kit, Rear Wheel
Qty 1
Contains all items 6,7,8,9 & 21 - Not Illustrated
$52.80
In stock in Brea
29
T2018738
Chain and Sprocket Kit
Qty 1
Contains item 16, item 17 & front sprocket T1180438 - Not Illustrated
$208.77
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
