Front Master Cylinder

Triumph TF 450-RC Edition · 2025 · Brakes & Wheels · 13 parts · 3 on the shelf in Brea

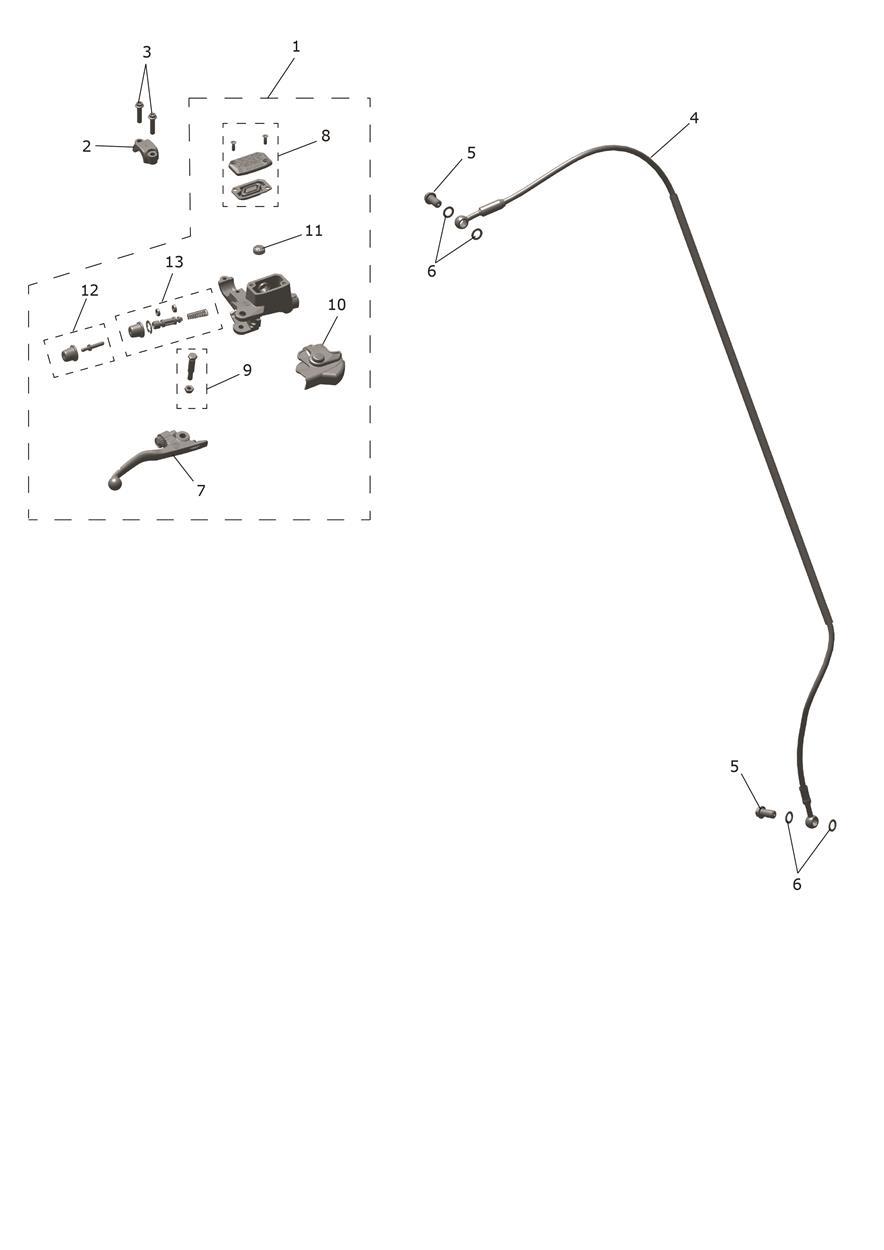

Exploded parts diagram — Front Master Cylinder, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2025023
Front Master Cylinder Assy, MX
Qty 1
$219.45
Available
2
T2022285
Clamp, Master Cylinder
Qty 1
$10.38
Available
3
T3200664
Bolt, TX, Lghtd, M6 x 25, Slv
Qty 2
$3.29
In stock in Brea
4
T2028609
Front Brake Hose Assy, MX
Qty 1
$101.83
Available
5
T3250032
Banjo Bolt, M10 x 19
Qty 2
$5.17
Available
6
T3550229
Washer, 15.2 x 10 x 1, Plated
Qty 4
$1.99
In stock in Brea
7
T2022381
Kit, Brake Lever Kit
Qty 1
$56.79
In stock in Brea
8
T2022382
Kit, Reservoir Cap Kit
Qty 1
$30.62
Available
9
T2022383
Kit, Lever Pin Kit
Qty 1
$24.29
Available
10
T2022385
Kit, Dust Cover Kit
Qty 1
$25.05
Available
11
T2022386
Kit, Anti-Bubble Kit
Qty 1
$21.37
Available
12
T2022387
Kit, Push Rod Kit
Qty 1
$28.85
Available
13
T2044149
Kit, M/Cyl Piston
Qty 1
Low stock at Triumph
$57.56
Limited availability

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
