Clutch

Triumph TF 450-RC Edition · 2025 · Engine · 30 parts · 7 on the shelf in Brea

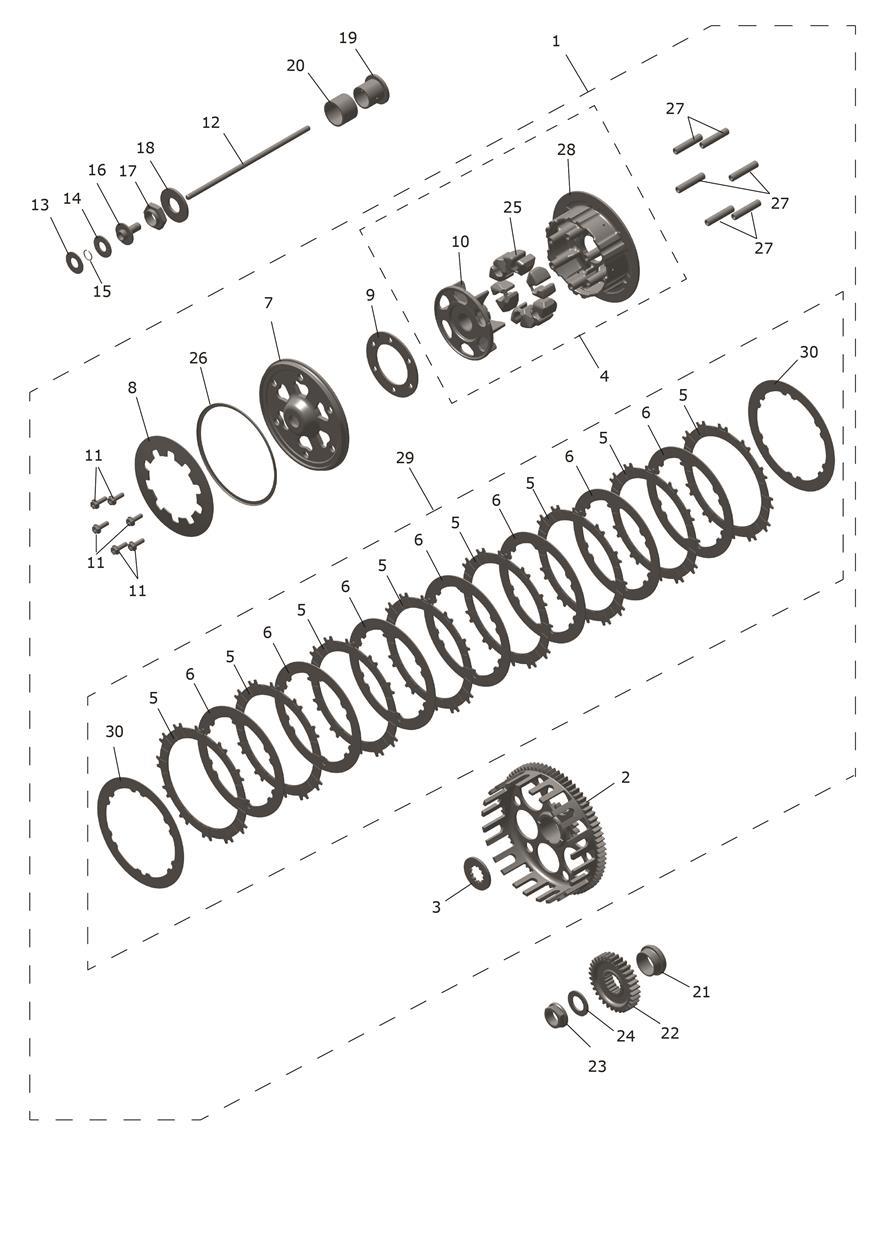

Exploded parts diagram — Clutch, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1170314
Clutch Assembly
Qty 1
Low stock at Triumph
$896.19
Limited availability
2
T1170337
Clutch Basket
Qty 1
Low stock at Triumph
$159.65
Limited availability
3
T1170327
Washer, Thrust, Clutch
Qty 1
$9.97
Available
4
T1170353
Clutch Centre Assembly
Qty 1
$781.09
Available
5
T1170354
Friction Disc, Clutch
Qty 8
$15.97
Available
6
T1170356
Clutch Plate
Qty 7
$12.34
Available
7
T1170357
Clutch Pressure Plate
Qty 1
$74.00
Available
8
T1171329
Spring, Belleville, Clutch
Qty 1
$11.98
Available
9
T1170359
Fulcrum Plate, Clutch
Qty 1
$8.22
Available
10
T1171328
Clutch, Centre, Hub
Qty 1
$411.10
Available
11
T1170301
Bolt, M5 x 0.8
Qty 6
$7.23
Available
12
T1170397
Push Rod, Clutch
Qty 1
$20.68
In stock in Brea
13
T3550374
Washer, 12 x 26 x 1
Qty 1
$2.47
In stock in Brea
14
T3800254
Bearing, Needle, AXK 12 x 26 x 2
Qty 1
$16.45
In stock in Brea
15
T3500115
Snap Ring, Ext, 10.8ID x 1
Qty 1
$4.12
In stock in Brea
16
T1170433
Clutch Lifter Body
Qty 1
$46.88
In stock in Brea
17
T1170492
Nut, M18 x 10.5
Qty 1
$6.79
In stock in Brea
18
T1170493
Washer, 41 x 18.2 x 3
Qty 1
$2.06
Available
19
T1170495
Top Hat, Clutch
Qty 1
Low stock at Triumph
$19.96
Limited availability
20
T3800289
Needle Bearing, 26 x 30 x 22
Qty 2
$10.70
Available
21
T1170347
Spacer, Primary Gear
Qty 1
$13.30
Available
22
T1170197
Gear, Primary, Crank
Qty 1
Low stock at Triumph
$132.13
Limited availability
23
T3350229
Nut, M10, LH x 1.5, Enc
Qty 1
$13.86
Available
24
T3350240
Washer, Crank, Primary Gear
Qty 1
Low stock at Triumph
$4.61
Limited availability
25
T1170366
Clutch, Damper
Qty 6
$9.58
Available
26
T1170362
Spring, Seat
Qty 1
$20.56
Available
27
T1170363
Pin
Qty 6
$4.12
Available
28
T1171326
Clutch Centre, Housing
Qty 1
$35.25
Available
29
T1170383
Disc Set, clutch
Qty 1
Includes items 5, 6 and 30
$239.48
In stock in Brea
30
T1170355
Clutch Plate
Qty 1
$13.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
