Crankshaft, Connecting Rods & Pistons

Triumph TF 450-RC Edition · 2025 · Engine · 13 parts · 2 on the shelf in Brea

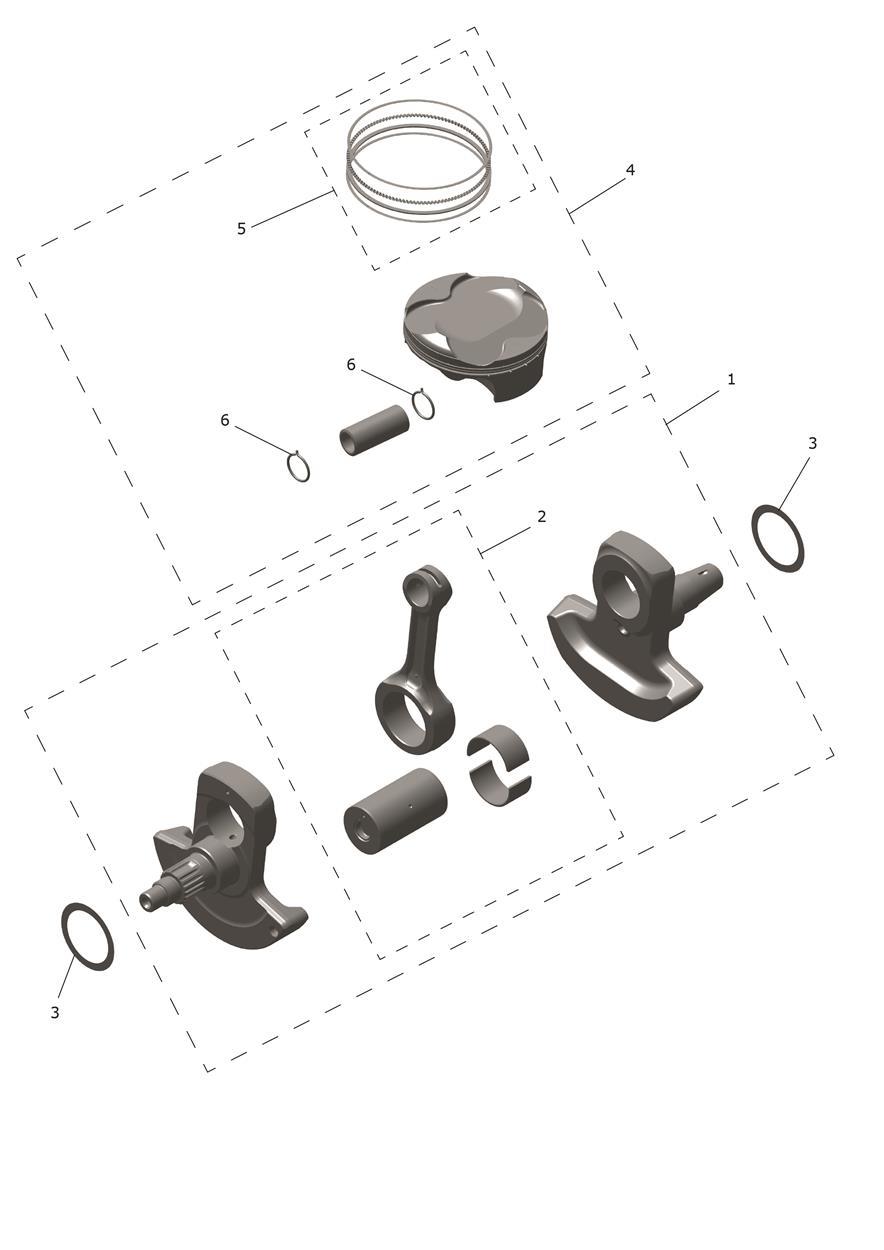

Exploded parts diagram — Crankshaft, Connecting Rods & Pistons, Triumph TF 450-RC Edition

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1105012
Crankshaft Assembly
Qty 1
$1100.97
Available
2
T1100057
Conrod Replacement Kit
Qty 1
$197.33
Available
3
T1105057
Thrust Washer, ID38 x 0.025
Qty -1
Use as required
$12.02
Available
3
T1105064
Thrust Washer, ID38 x 0.1
Qty -1
Use as required
Low stock at Triumph
$4.85
Limited availability
3
T1105065
Thrust Washer, ID38 x 0.15
Qty -1
Use as required
$4.85
Available
3
T1105071
Thrust Washer, ID38 x 0.2
Qty -1
Use as required
Low stock at Triumph
$4.85
Limited availability
3
T1105072
Thrust Washer, ID38 x 0.25
Qty -1
Use as required
$4.41
Available
3
T1105066
Thrust Washer, ID38 x 0.3
Qty -1
Use as required
$4.41
Available
4
T1120087
Piston Kit
Qty 1
$239.48
In stock in Brea · last ones
5
T1120095
Piston Ring Kit
Qty 1
$20.05
In stock in Brea
6
T1120105
Circlip, Piston, 22.3 x 1.6
Qty 2
$8.82
Available
7
T1100058
Crankshaft Bearing Kit
Qty 1
$340.50
Available
8
T1120089
Piston & Gasket Kit
Qty 1
$279.55
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
