Rear Suspension Unit

Triumph TF 450-E · 2026 · Chassis & Suspension · 8 parts

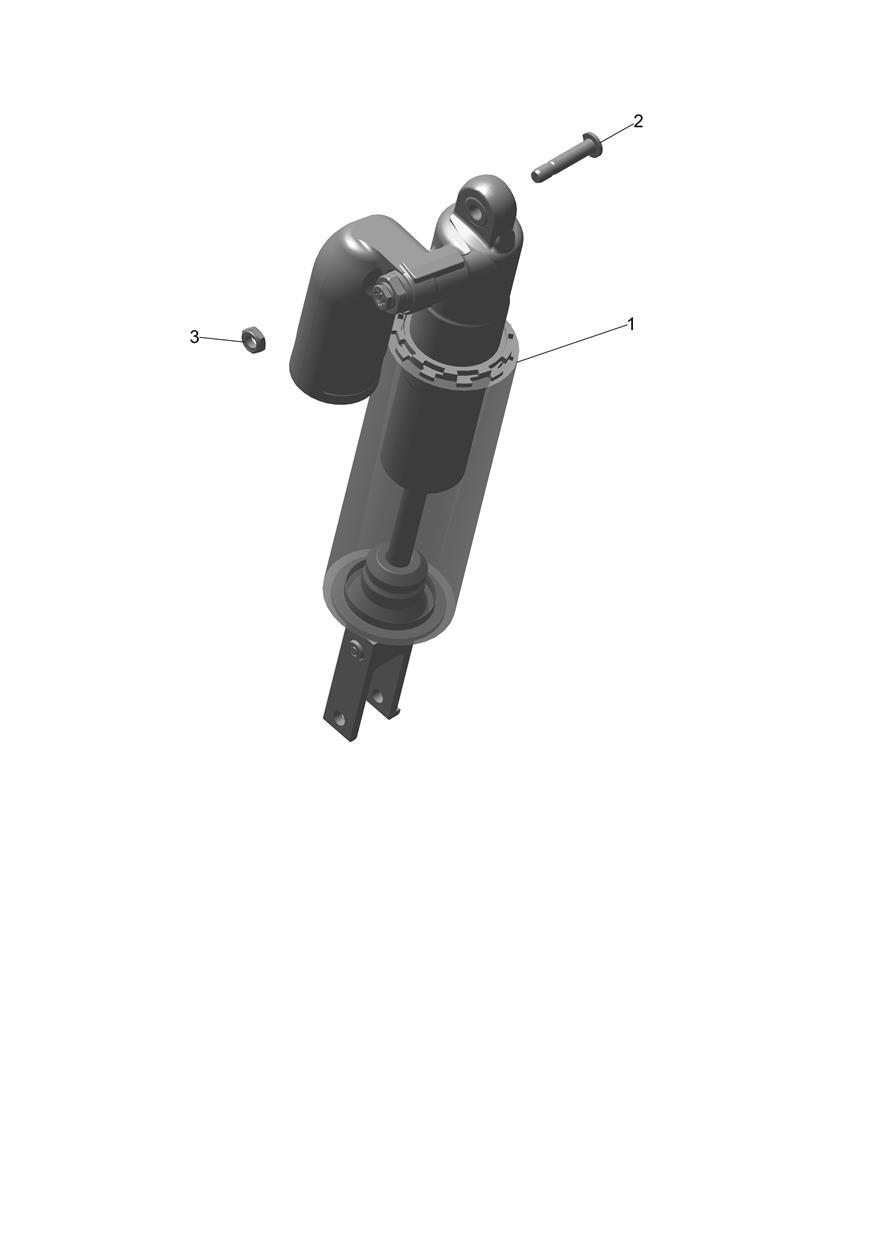

Exploded parts diagram — Rear Suspension Unit, Triumph TF 450-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1

Rear Suspension Unit

Qty 1

$864.78

Available

2

Bolt, M10 x 1.25 x 52

Qty 1

Backordered at Triumph · we’ll confirm the ship date after you order

$4.12

On backorder

3

Locknut, M10 x 1.25

Qty 1

$2.35

Available

4

Decal, Rear Suspension Unit

Qty 1

$2.03

Available

5

Spring Kit, RSU, K54

Qty 1

$251.46

Available

5

Spring Kit, RSU, K56

Qty 1

$251.46

Available

5

Spring Kit, RSU, K58

Qty 1

Low stock at Triumph

$251.46

Limited availability

5

Spring Kit, RSU, K60

Qty 1

$251.46

Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
