Foot Controls

Triumph TF 450-E · 2026 · Chassis & Suspension · 10 parts · 1 on the shelf in Brea

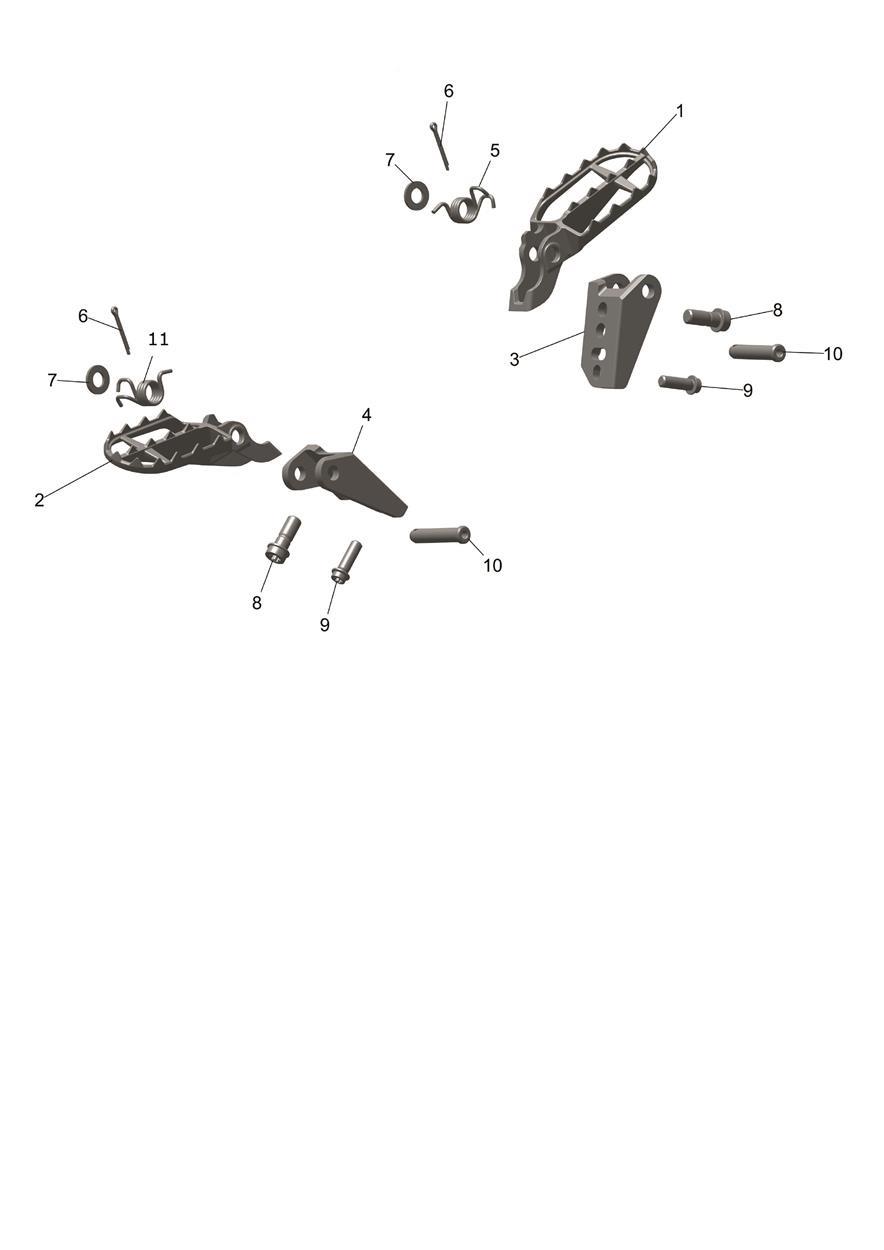

Exploded parts diagram — Foot Controls, Triumph TF 450-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2083238
Footrest, Cast, LHS
Qty 1
$47.90
Available
2
T2083239
Footrest, Cast, RHS
Qty 1
$47.90
Available
4
T2084039
Clevis, Footrest, RH, EN
Qty 1
$59.87
Available
5
T2086041
Spring, Torsion, LH
Qty 1
Low stock at Triumph
$2.47
Limited availability
6
T3000113
Pin, Split, 25 x 2.8
Qty 2
$1.99
Available
7
T3555041
Washer, 10.25 x 19.5 x 2
Qty 2
Low stock at Triumph
$2.62
Limited availability
8
T3201105
Bolt, TX, M10 x 25, Enc
Qty 2
$2.47
Available
9
T3200882
Bolt, TX, Lghtd, M8 x 25, Enc
Qty 2
$2.47
Available
10
T3000112
Pin, Clevis, Dia 10 x 50
Qty 2
$12.34
Available
11
T2086048
Spring, Torsion, RH
Qty 1
$1.99
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
