Exhaust

Triumph TF 450-E · 2026 · Fuel & Air · 20 parts · 2 on the shelf in Brea

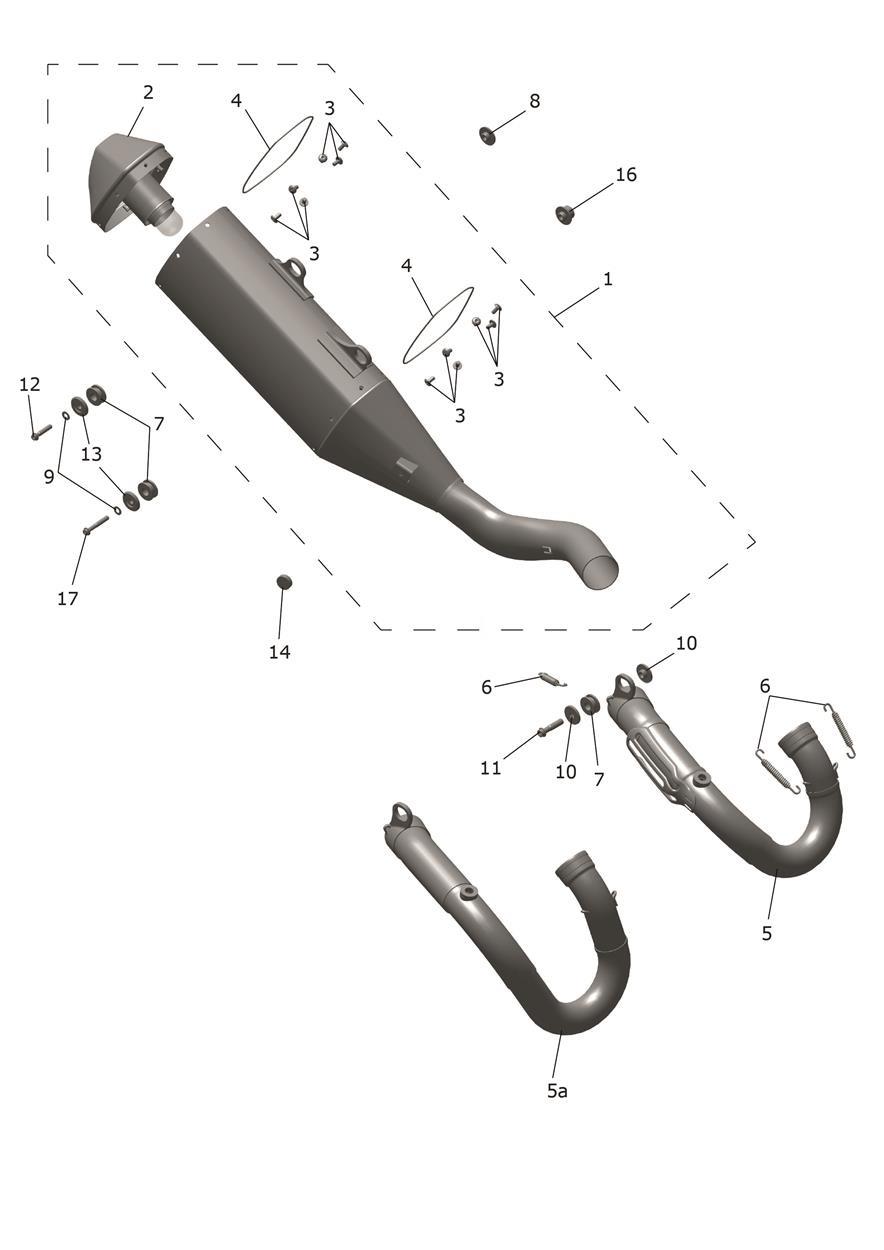

Exploded parts diagram — Exhaust, Triumph TF 450-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2208156
Silencer Assembly, EN
Qty 1
All Except US & CA
$512.21
Available Shipping quote or pickup
1
T2206278
Silencer Assy, EN
Qty 1
US & CA Only
$738.39
Available Shipping quote or pickup
2
T2208153
End Cap Assembly, Silencer
Qty 1
All Except US & CA
$139.77
Available
2
T2208157
End Cap Assembly, Silencer
Qty 1
US & CA Only
$126.39
Available
3
T3050169
Bolt, M5 x 10, T25 Int TX
Qty 12
Low stock at Triumph
$7.23
Limited availability
4
T3600276
Seal, Silencer
Qty 2
$5.06
Available
5
T2206112
Header Pipe Assembly, EU5
Qty 1
All Except US & CA
$259.44
Available Shipping quote or pickup
5a
T2205942
Header Pipe Assembly
Qty 1
US & CA Only
Low stock at Triumph
$299.35
Limited availability Shipping quote or pickup
6
T2206590
Spring, Exhaust
Qty 3
$7.98
Available
7
T2203591
AV Rubber, Silencer
Qty 3
$4.12
In stock in Brea
8
T2203638
Bush, Inner, AV Mount, Silencer
Qty 1
$8.22
Available
9
T3555017
Washer, 6.5 x 12.5 x 0.8
Qty 2
$2.81
Available
10
T2203596
Bush, AV Mount, Header Pipe
Qty 2
$8.22
Available
11
T3200885
Bolt, TX Lghtd, M8 x 35, Slv
Qty 1
$3.29
In stock in Brea
12
T3200665
Bolt, TX, Lghtd, M6 x 30, Slv
Qty 1
$3.29
Available
13
T2203953
Bush, AV Mount, Silencer
Qty 2
$8.22
Available
14
T2203956
Spacer, Rubber, Exhaust
Qty 1
Low stock at Triumph
$4.12
Limited availability
15
T2208199
Wadding Kit, Silencer
Qty 1
Included in Silencer Assembly
No longer supplied by Triumph
$86.48
Not on our shelf Ask the parts desk
16
T2208269
Bush, Inner, AV Mount, Silencer
Qty 1
Low stock at Triumph
$8.22
Limited availability
17
T3200666
Bolt, TX, Lgtnd, M6 x 40, Slv
Qty 1
Low stock at Triumph
$2.47
Limited availability

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
