Gear Selectors & Pedal

Triumph TF 450-E · 2026 · Engine · 28 parts · 3 on the shelf in Brea

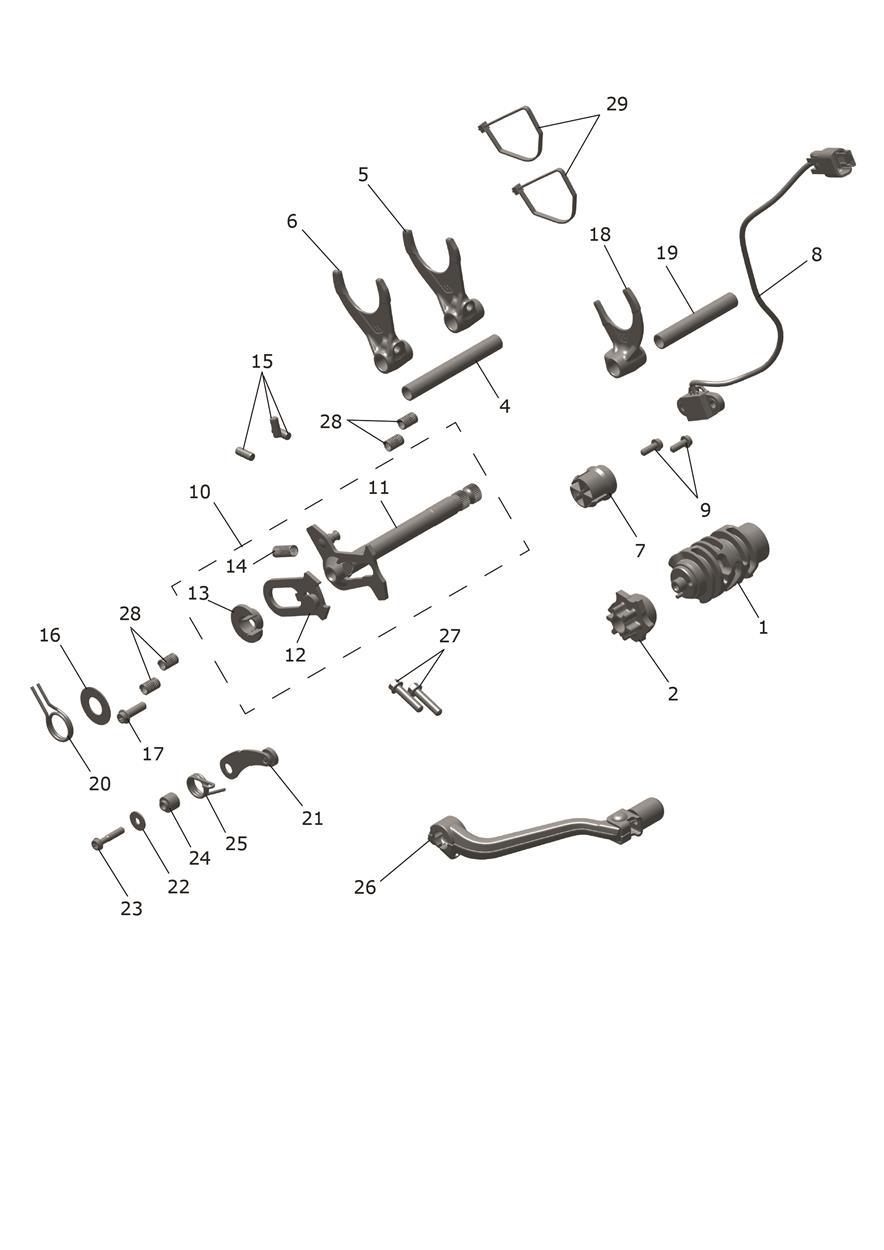

Exploded parts diagram — Gear Selectors & Pedal, Triumph TF 450-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1190395
Gear Selector Drum
Qty 1
$99.79
Available
2
T1190358
Selector Star, Shift Mechanism
Qty 1
$90.44
Available
4
T1190283
Shaft, Selector, Output
Qty 1
$17.61
In stock in Brea
5
T1190387
Fork Selector, Ouput, Left
Qty 1
$86.48
Available
6
T1190388
Fork Selector, Output, Right
Qty 1
$86.48
Available
7
T1190182
Selector Drum Magnet
Qty 1
$41.11
Available
8
T2502960
Sensor, Gear Position Assembly
Qty 1
$123.33
Available
9
T3200552
Bolt, TX, M5 x 14, Enc
Qty 2
Low stock at Triumph
$2.47
Limited availability
10
T1190347
Gear Selector Shaft Assembly
Qty 1
$126.39
Available
11
T1190348
Shaft, Gear Selector
Qty 1
$108.43
Available
12
T1190403
Slider, Gear Selector Assy
Qty 1
Low stock at Triumph
$13.30
Limited availability
13
T1190341
Retainer, Gear Selector
Qty 1
$2.33
Available
14
T1190342
Spring, Gear Selector
Qty 1
$2.33
Available
15
T3000122
Pin, 6 x 14.8
Qty 3
Low stock at Triumph
$1.99
Limited availability
16
T3550356
Washer, 14 x 30 x 1
Qty 1
$2.47
Available
17
T3200676
Bolt, Lghtd, M6 x 25, Enc
Qty 1
$1.99
Available
18
T1190406
Fork Selector, Input
Qty 1
$86.48
Available
19
T1190233
Shaft, Selector, Input
Qty 1
$17.61
Available
20
T1190351
Spring, Selector Mechanism Return
Qty 1
$8.10
In stock in Brea
21
T1190327
Detent Arm Assy
Qty 1
$24.67
Available
22
T3550354
Washer, M5 x 1.2, DIN9092
Qty 1
$3.53
Available
23
T3200556
Bolt, TX, M5 x 0.8 x 25, Enc
Qty 1
Low stock at Triumph
$2.47
Limited availability
24
T1190452
Spacer, Detent Arm
Qty 1
Low stock at Triumph
$4.70
Limited availability
25
T1190354
Spring, Detent Arm
Qty 1
$5.02
Available
26
T2088961
Gear Pedal Assembly, 95mm
Qty 1
$32.89
In stock in Brea
27
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv
Qty 2
$2.27
Available
28
T1190189
Spring, Shift Fork Shaft
Qty 4
Low stock at Triumph
$2.47
Limited availability
29
T3700015
Cable Tie, 185.7 Long
Qty 2
Not illustrated
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
