Rear Wheel

Triumph TF 450-E · 2026 · Brakes & Wheels · 29 parts · 8 on the shelf in Brea

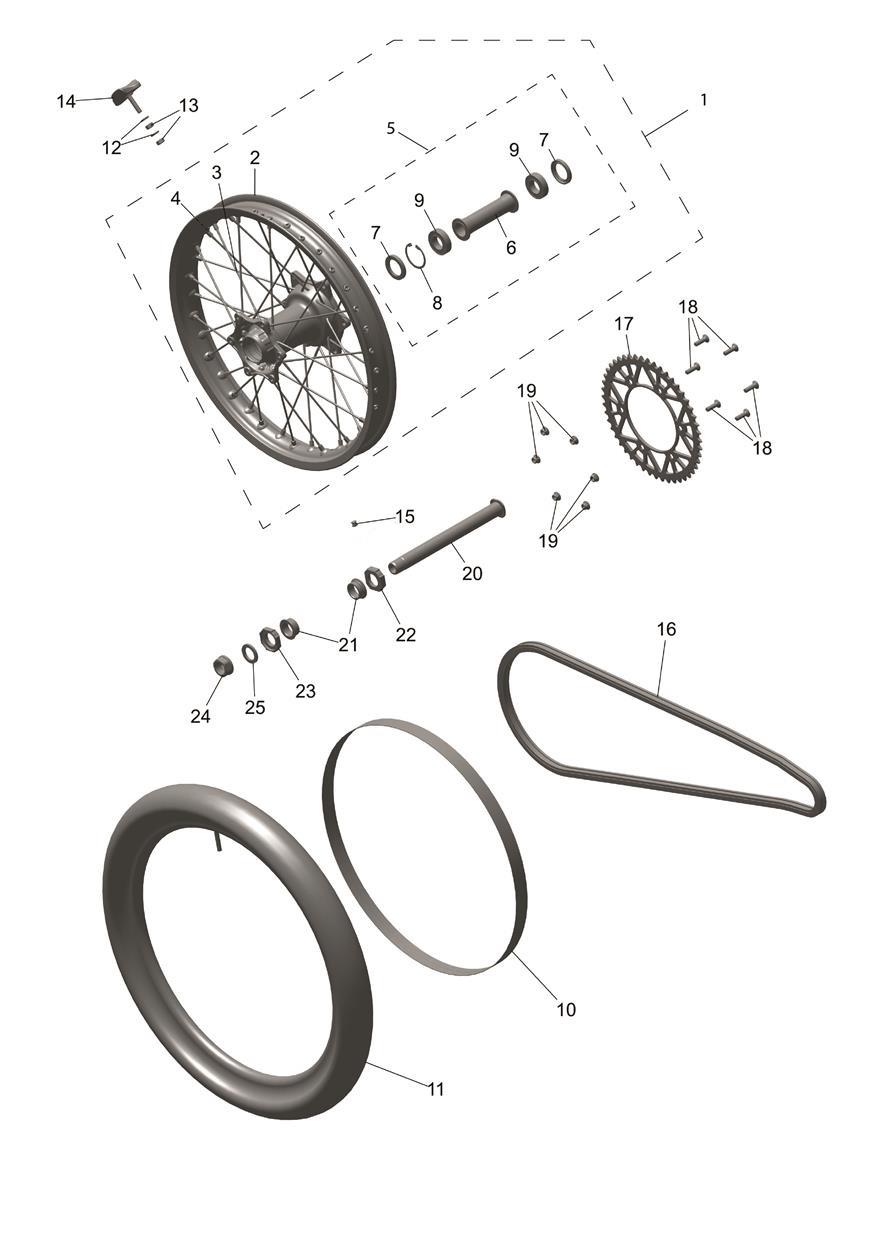

Exploded parts diagram — Rear Wheel, Triumph TF 450-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2015043
Rear Wheel Assembly, 2.15 x 18
Qty 1
$880.75
Available Shipping quote or pickup
2
T2010978
Rim, 2.15 x 18
Qty 1
$645.25
Available Shipping quote or pickup
3
T2015025
Spoke, Wire, 118.5mm
Qty 36
Low stock at Triumph
$5.31
Limited availability
4
T2005037
Nipple, Aluminium, Spoke
Qty 36
Low stock at Triumph
$3.32
Limited availability
5
T2015093
Hub, Sub Assy
Qty 1
$352.95
Available Shipping quote or pickup
6
T2015054
Spacer, Wheel, Internal
Qty 1
$36.17
Available
7
T3600599
Oil Seal, 32 x 47 x 6
Qty 2
$4.47
In stock in Brea
8
T3500402
Circlip, Int Dia 47
Qty 1
$1.99
Available
9
T3800257
Bearing, Ball, 25 x 47 x 12
Qty 2
$15.58
Available
10
T2011318
Rim Band, 18-19 Inch
Qty 1
$9.92
Available
11
T2010849
Inner Tube, 18 inch
Qty 1
$33.26
Available
12
T3550405
Washer, M8 x 17 x 1.6
Qty 1
$1.99
Available
13
T3350303
Nut, M8, Silver
Qty 1
$1.99
Available
14
T2011345
Rim Lock, 2.15 Inch
Qty 1
Low stock at Triumph
$24.67
Limited availability
15
T2011157
Bung, Rim
Qty 1
$1.99
Available
16
T2019353
Chain, Final Drive, 118L, Sealed
Qty 1
All Except US & CA
$96.88
Available
16
T2015073
Chain, Final Drive, 116L, Sealed
Qty 1
US & CA Only
$73.17
Available
17
T2015063
Rear Sprocket, 52T
Qty 1
All Except US & CA
$79.28
In stock in Brea
17
T2015062
Rear Sprocket, 51T
Qty 1
US & CA Only
$79.28
Available
18
T3200193
Bolt, CSK, Torx, M8 x 27, Enc
Qty 6
$2.11
In stock in Brea
19
T3350004
Locknut, Flanged, M8 x 1.25
Qty 6
$2.27
In stock in Brea
20
T2011135
Spindle, Rear Wheel
Qty 1
Low stock at Triumph
$74.00
Limited availability
21
T2011134
Spacer, Wheel, Rear
Qty 2
$24.67
In stock in Brea
22
T2011132
Block, Chain Adjuster, LH
Qty 1
$20.56
In stock in Brea
23
T2011131
Block, Chain Adjuster, RH
Qty 1
$20.56
In stock in Brea
24
T3350713
Locknut, M24 x 1.5, Thin
Qty 1
$19.86
Available
25
T3554203
Washer, 25 x 37 x 4
Qty 1
Low stock at Triumph
$3.32
Limited availability
26
T2016007
Link, Clip, 520VT2 FJ
Qty 1
Not Illustrated
Backordered at Triumph · we’ll confirm the ship date after you order
$6.13
On backorder
28
T2018737
Bearing Kit, Rear Wheel
Qty 1
Contains all items 6,7,8,9 & 21 - Not Illustrated
$52.80
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
