Radiator, Fan & Thermostat

Triumph TF 450-C · 2026 · Cooling · 28 parts · 8 on the shelf in Brea

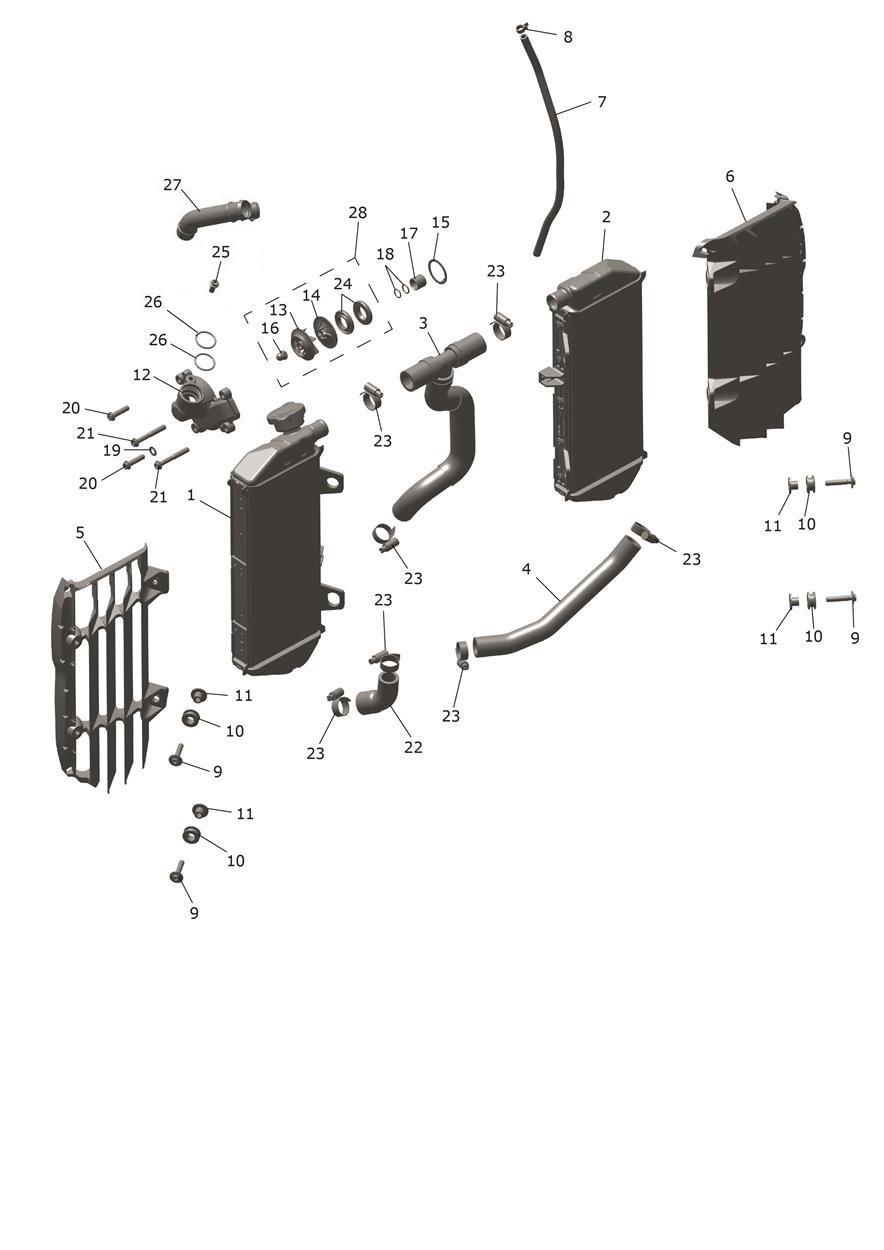

Exploded parts diagram — Radiator, Fan & Thermostat, Triumph TF 450-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2105040
Radiator Assy, RH, 28mm Core
Qty 1
$239.48
Available Shipping quote or pickup
2
T2105041
Radiator Assy, LH, 28mm Core
Qty 1
$239.48
Available Shipping quote or pickup
3
T2101335
Hose, T-Piece, Coolant
Qty 1
$37.13
In stock in Brea
4
T2101392
Coolant Hose, Radiator Out, LH
Qty 1
$13.99
In stock in Brea
5
T2101532
Guard, Radiator, RH
Qty 1
$75.84
In stock in Brea
6
T2101531
Guard, Radiator, LH
Qty 1
$75.84
In stock in Brea
7
T2109887
Pipe, Overflow, Coolant
Qty 1
$12.34
Available
8
T2109610
Spring Band Clamp, Dia 9mm
Qty 1
Low stock at Triumph
$1.99
Limited availability
9
T3330451
Bolt, Lge, TX, M6 x 30, Slv
Qty 4
$1.99
In stock in Brea
10
T3021164
Grommet, 15 x 5 x 10
Qty 4
$1.99
Available
11
T3010750
Flanged Sleeve, 6.2 x 10 x 8.5
Qty 4
Low stock at Triumph
$5.15
Limited availability
12
T2101339
Cover, Water Pump
Qty 1
$30.03
Available
13
T2101328
Impellar, Water Pump
Qty 1
$26.42
Available
14
T2101327
Disc, Water Pump
Qty 1
$13.20
Available
15
T3500092
Circlip, Int Dia 30, DIN 472
Qty 1
Low stock at Triumph
$1.99
Limited availability
16
T3350239
Domenut, M6
Qty 1
Low stock at Triumph
$1.99
Limited availability
17
T2101661
Bush, 12 x 15 x 13.25
Qty 1
$44.40
Available
18
T3600259
O Ring, 9.0 x 1.5
Qty 2
$1.99
Available
19
T3550542
Washer, Cu, OD12.5 x Id6.4
Qty 1
$1.99
In stock in Brea
20
T3200664
Bolt, TX, Lghtd, M6 x 25, Slv
Qty 2
$3.29
In stock in Brea
21
T3200673
Bolt, TX, Lghtd, M6 x 45, Slv
Qty 2
$3.51
Available
22
T2101393
Coolant Hose, Radiator Out, RH
Qty 1
$7.58
Available
23
T2102112
Hose Clip, 16-27, Bright, Ss
Qty 7
$4.20
Available
24
T3600277
Seal, Oil, 72NBR902, 15 x 30 x 4.5
Qty 2
$10.10
Available
25
T3200672
Bolt, TX, Lghtd, M6 x 14, Enc
Qty 1
$2.47
Available
26
T3600253
O Ring
Qty 2
$2.41
Available
27
T2101391
Fab, Y-Piece
Qty 1
$27.34
In stock in Brea
28
T2101399
Repair Kit, Water Pump
Qty 1
Also Contains Water Pump Gasket T2101307
$19.96
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
