Camshaft & Camshaft Drive

Triumph TF 450-C · 2026 · Engine · 20 parts · 2 on the shelf in Brea

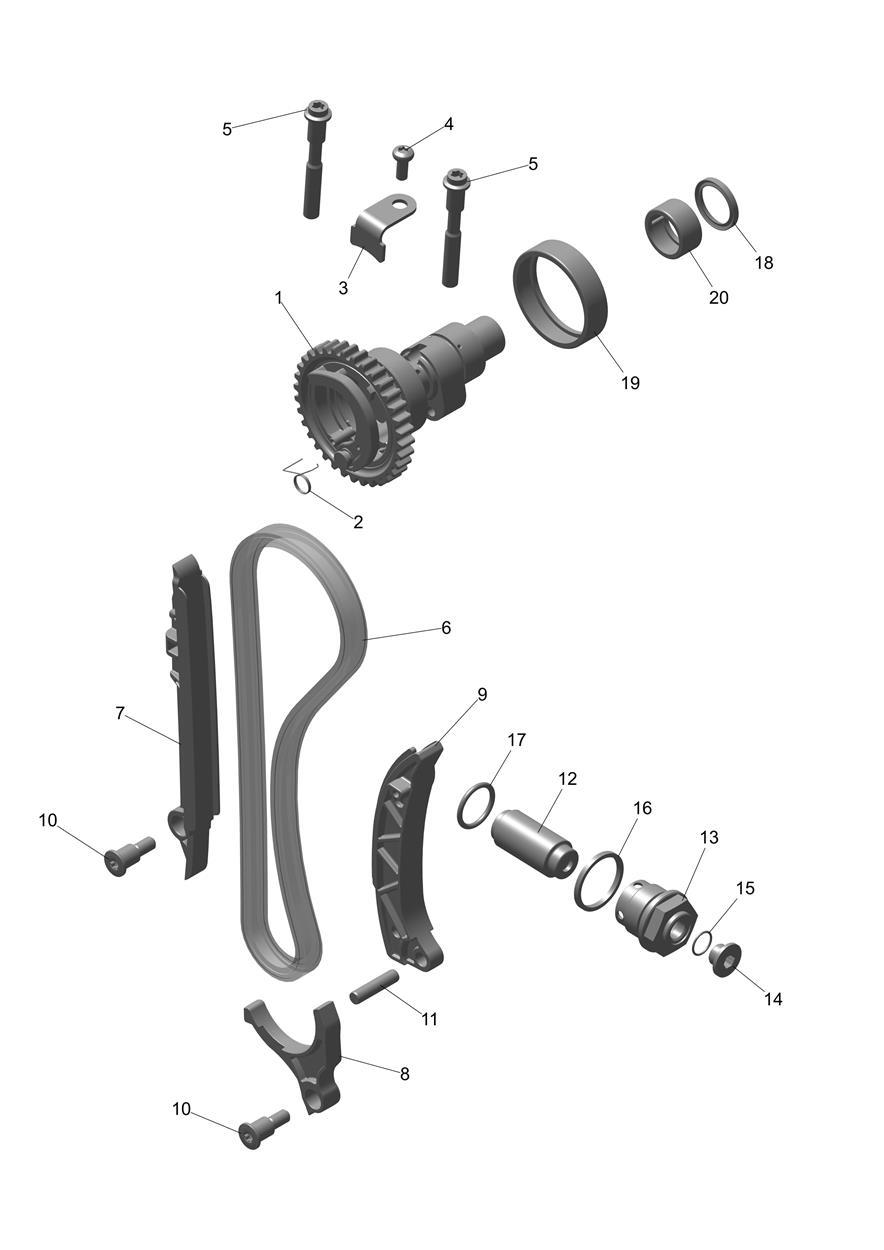

Exploded parts diagram — Camshaft & Camshaft Drive, Triumph TF 450-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1148002
Camshaft Assembly, Crowned, F5
Qty 1
$402.87
Available
2
T1140469
Spring, Decompressor
Qty 1
$16.45
Available
3
T1147717
Retainer, Axial/Cam
Qty 1
$6.88
Available
4
T3330649
Screw, Pan/Hd, Tx, M5 x 12, Slv
Qty 1
$5.25
Available
5
T3150038
Bolt, Shld, M7 x 55, TX
Qty 2
$3.80
Available
6
T1140284
Cam Chain
Qty 1
$114.51
In stock in Brea
7
T1141169
Blade, Guide
Qty 1
$22.01
Available
8
T1140272
Guide, Lower
Qty 1
$25.78
Available
9
T1146012
Tensioner Blade
Qty 1
$29.22
Available
10
T3201074
Bolt, TX, Shld, M6 x 22, Enc
Qty 2
$4.00
Available
11
T3000209
Solid Dowel, 6 x 25
Qty 1
$4.12
Available
12
T1145040
Hydraulic Cam Chain Tensioner
Qty 1
$79.89
In stock in Brea
13
T1140262
Bolt, Tensioner, M24 x 1.5
Qty 1
Low stock at Triumph
$15.21
Limited availability
14
T3450198
Plug, M10 x 6
Qty 1
$6.58
Available
15
T3600249
O Ring, ID10 x 1
Qty 1
Low stock at Triumph
$1.99
Limited availability
16
T3350319
Washer, CU, 24 x 28 x 2.4
Qty 1
$5.60
Available
17
T3600172
O Ring
Qty 1
$3.35
Available
18
T3601114
Seal, G18 x 24 x 3
Qty 1
$7.83
Available
19
T3800224
Bearing, Needle, HK4012
Qty 1
$13.20
Available
20
T3800233
Bearing, Needle, HK1812
Qty 1
$11.90
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
