Fuel Tank

Triumph TF 450-C · 2026 · Fuel & Air · 11 parts · 2 on the shelf in Brea

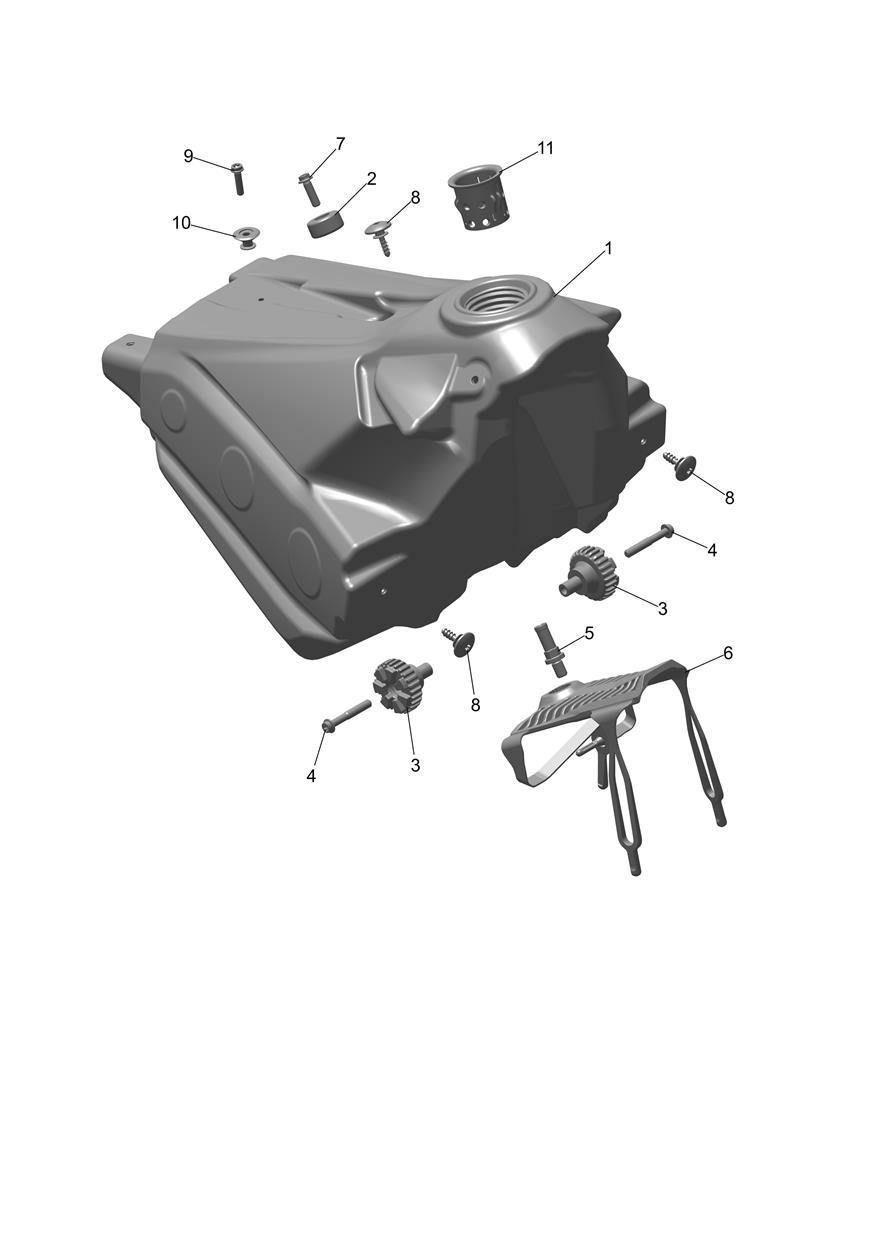

Exploded parts diagram — Fuel Tank, Triumph TF 450-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2405047
Fuel Tank, EN
Qty 1
Low stock at Triumph
$484.43
Limited availability Shipping quote or pickup
2
T2406661
Puck, Fuel Tank
Qty 1
$4.93
Available
3
T2406737
Mount, Fuel Tank, Rubber
Qty 2
Low stock at Triumph
$7.41
Limited availability
4
T3200666
Bolt, TX, Lgtnd, M6 x 40, Slv
Qty 2
Low stock at Triumph
$2.47
Limited availability
5
T2403659
Spigot, Tank Mount
Qty 1
$13.49
In stock in Brea
6
T2406888
Isolation Mat, Rubber
Qty 1
$17.07
Available
7
T3200663
Bolt, TX, Lghtd, M6 x 20, Slv
Qty 1
$2.47
Available
8
T3330441
Screw, S/Tap, Shld, Pan/Hd, 6 x 17
Qty 3
$12.34
Available
9
T3200399
Bolt, TX, M5 x 20, Slv
Qty 1
$2.47
In stock in Brea
10
T2406041
Spacer, Conical, Seat Mount
Qty 1
Low stock at Triumph
$5.86
Limited availability
11
T2409045
Tube, Fill Control
Qty 1
$5.31
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
