Crankcase

Triumph TF 250-X · 2026 · Engine · 28 parts · 9 on the shelf in Brea

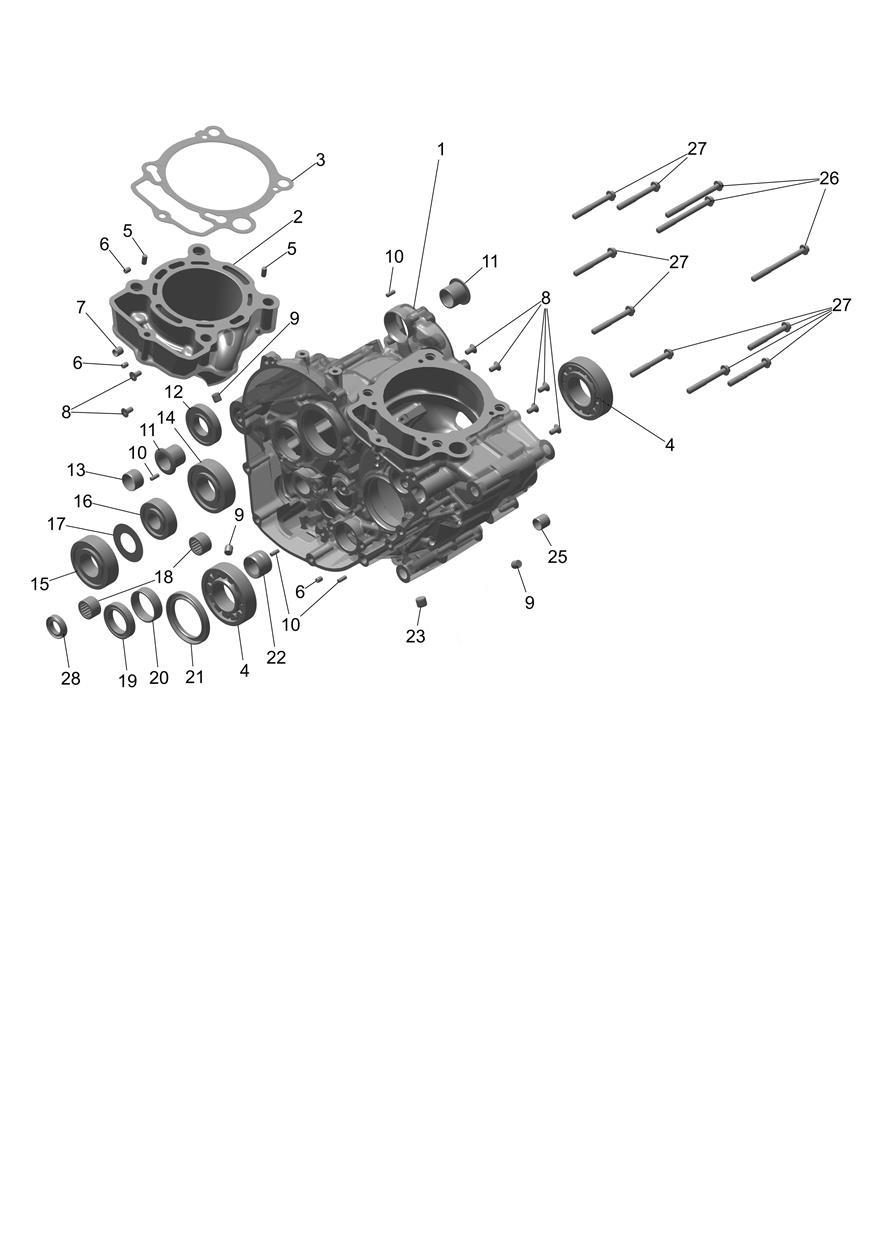

Exploded parts diagram — Crankcase, Triumph TF 250-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1160531
Crankcase Assembly, Spares
Qty 1
$600.92
Available
2
T1161634
Cylinder, M/C
Qty 1
$567.31
In stock in Brea
3
T1161656
Gasket, Cylinder
Qty 1
$14.85
In stock in Brea
4
T1165018
Bearing, Assy, 30 x 62 x 16, NJ206
Qty 2
$87.36
Available
5
T3000094
Dowel, Dia 5 x 10
Qty 2
$1.99
In stock in Brea
6
T3450197
Restrictor, Oil
Qty 3
$6.16
Available
7
T3000079
Dowel, Hollow, 6 x 8 x 8
Qty 1
$3.68
Available
8
T3331865
Screw, Skt Csk, M5 x 10, Slv, Enc
Qty 7
$5.25
In stock in Brea
9
T1164484
Plug, 8 x 8, Aluminium
Qty 3
$3.29
In stock in Brea · last ones
10
T3000093
Dowel, Dia 4.0 x 10
Qty 4
$2.03
Available
11
T1160549
Spacer, Crankcase
Qty 2
$8.22
Available
12
T3800272
Ball Bearing, TM16004C4, 20 x 42 x 8
Qty 1
$15.63
In stock in Brea
13
T3000083
Dowel, Hollow, Dia 17 x 19 x 12
Qty 1
$4.15
Available
14
T3800274
Cyl Bearing, NJ205, 25 x 52 x 15
Qty 1
Low stock at Triumph
$53.24
Limited availability
15
T3800292
Ball Bearing, 6025C4UTZ 25 x 52 x 15
Qty 1
All Except US
$12.34
Available Ask the parts desk
15
T3800271
Ball Bearing, 6205C4, 25 x 52 x 15
Qty 1
US Only
No longer supplied by Triumph
$13.15
Not on our shelf Ask the parts desk
16
T3800273
Ball Bearing, 6203JR2C3, 17 x 40 x 12
Qty 1
$8.22
In stock in Brea
17
T1160477
Shim, 21 x 41 x 0.2
Qty 1
$5.17
Available
18
T3800001
Bearing, Needle, 20 x 14 x 12
Qty 2
Low stock at Triumph
$7.96
Limited availability
19
T3800244
Bearing, 6805, 25 x 37 x 7
Qty 1
$12.34
In stock in Brea · last ones
20
T3750026
Bush, ID30 x OD34, 10 Thk
Qty 1
$12.34
In stock in Brea
21
T1105069
Seal, Rotary SC 40 x 55 x 6
Qty 1
$10.34
Available
22
T3800268
Bush Bearing, Balance, 16 x 24 x 16
Qty 1
$24.67
Available
23
T1164485
Plug, 10 x 8, Aluminium
Qty 1
$3.29
Available
25
T3000084
Dowel, Hollow, Dia 11 x 13 x 12
Qty 1
$4.42
Available
26
T3200668
Bolt, TX, Lghtd, M6 x 70, Slv
Qty 3
$3.29
Available
27
T3200667
Bolt, TX, Lghtd, M6 x 50, Slv
Qty 8
$3.29
Available
28
T3600265
Seal, 14 x 24 x 6
Qty 1
$5.15
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.

Southern California Motorcycles, 515 W Lambert Rd, Brea, CA 92821 · 714-256-6700

Triumph supply checked Oct 28, 2026 · Brea shelf Oct 29, 2026.
