Triumph TF 250-X · 2026 · Engine · 25 parts · 8 on the shelf in Brea

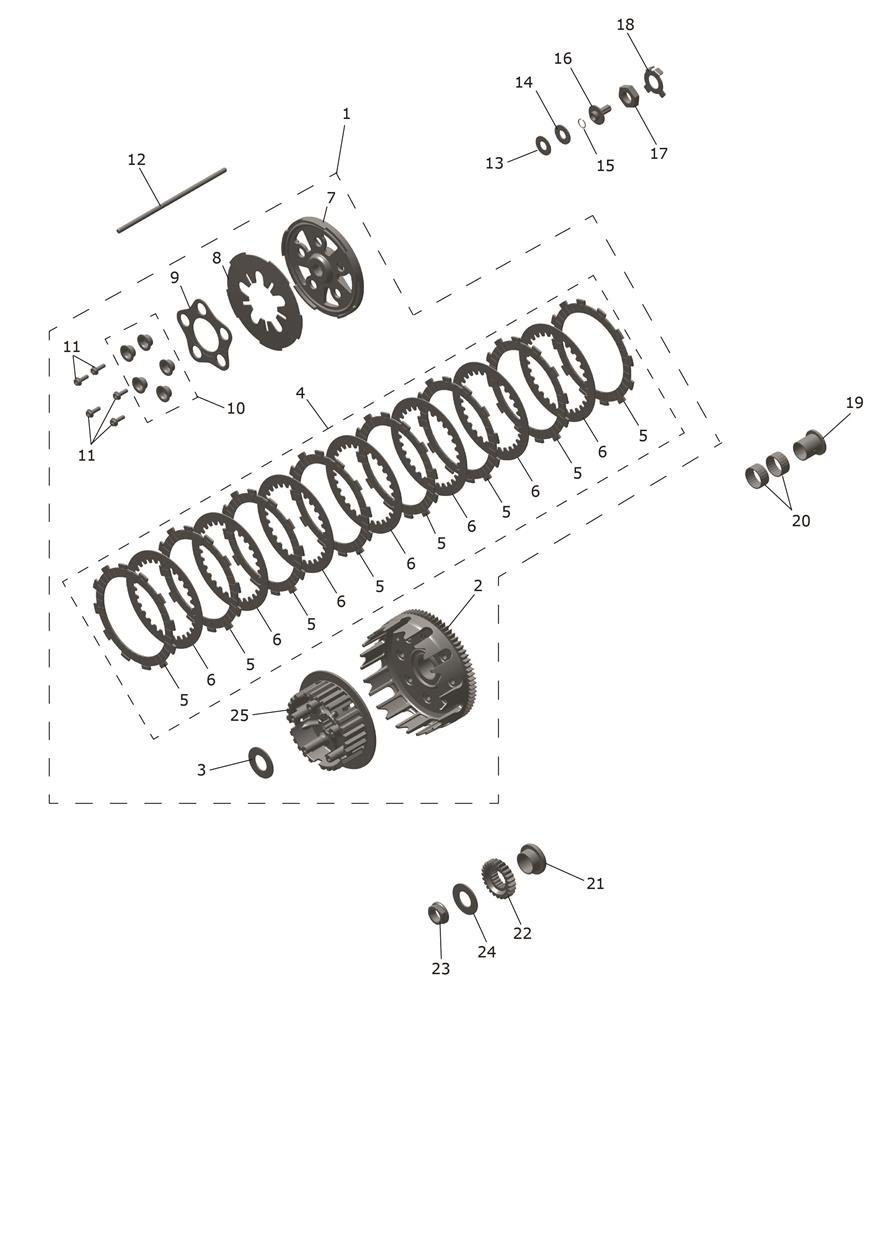

Exploded parts diagram — Clutch, Triumph TF 250-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1170387
Clutch Assembly
Qty 1
$617.50
In stock in Brea
2
T1170264
Clutch Outer Assembly
Qty 1
$437.62
Available
3
T1170299
Thrust Washer, Clutch
Qty 1
$7.02
Available
4
T1170342
Disc Set, Clutch
Qty 1
$234.10
In stock in Brea
5
T1170266
Friction Disc, Clutch
Qty 8
$15.38
Available
6
T1170267
Clutch Plate
Qty 7
$13.58
Available
7
T1170308
Clutch Pressure Plate
Qty 1
$90.44
Available
8
T1170269
Spring, Belleville, clutch
Qty 1
$7.58
Available
9
T1170272
Fulcrum Plate, Clutch
Qty 1
$8.43
Available
10
T1170339
Kit, Clutch Bolt Cups
Qty 5
$8.65
In stock in Brea · last ones
11
T1170301
Bolt, M5 x 0.8
Qty 5
$7.23
Available
12
T1170397
Push Rod, Clutch
Qty 1
$20.68
In stock in Brea
13
T3550374
Washer, 12 x 26 x 1
Qty 1
$2.47
In stock in Brea
14
T3800254
Bearing, Needle, AXK 12 x 26 x 2
Qty 1
$16.45
In stock in Brea
15
T3500115
Snap Ring, Ext, 10.8ID x 1
Qty 1
$4.12
In stock in Brea
16
T1170259
Body, Clutch Lifter
Qty 1
$46.88
Available
17
T3350171
Nut, M18 x 1.5 x 8
Qty 1
$8.22
Available
18
T3550373
Washer, Tabbed, 18.5 x 31.5 x 1.5
Qty 1
$5.77
In stock in Brea
19
T1170185
Bearing Inner Race, Clutch
Qty 1
$17.53
Available
20
T3800241
Needle, Bearing, 25 x 29 x 13
Qty 2
$5.95
Available
21
T1170186
Spacer, Primary Gear
Qty 1
$13.20
Available
22
T1170184
Gear, Primary, Crank
Qty 1
$123.33
Available
23
T3350229
Nut, M10, LH x 1.5, Enc
Qty 1
$13.86
Available
24
T3350240
Washer, Crank, Primary Gear
Qty 1
Low stock at Triumph
$4.61
Limited availability
25
T1170341
Clutch Centre
Qty 1
$185.00
Available
