Crankshaft, Connecting Rods & Pistons

Triumph TF 250-X · 2024, 2025 · Engine · 14 parts · 5 on the shelf in Brea

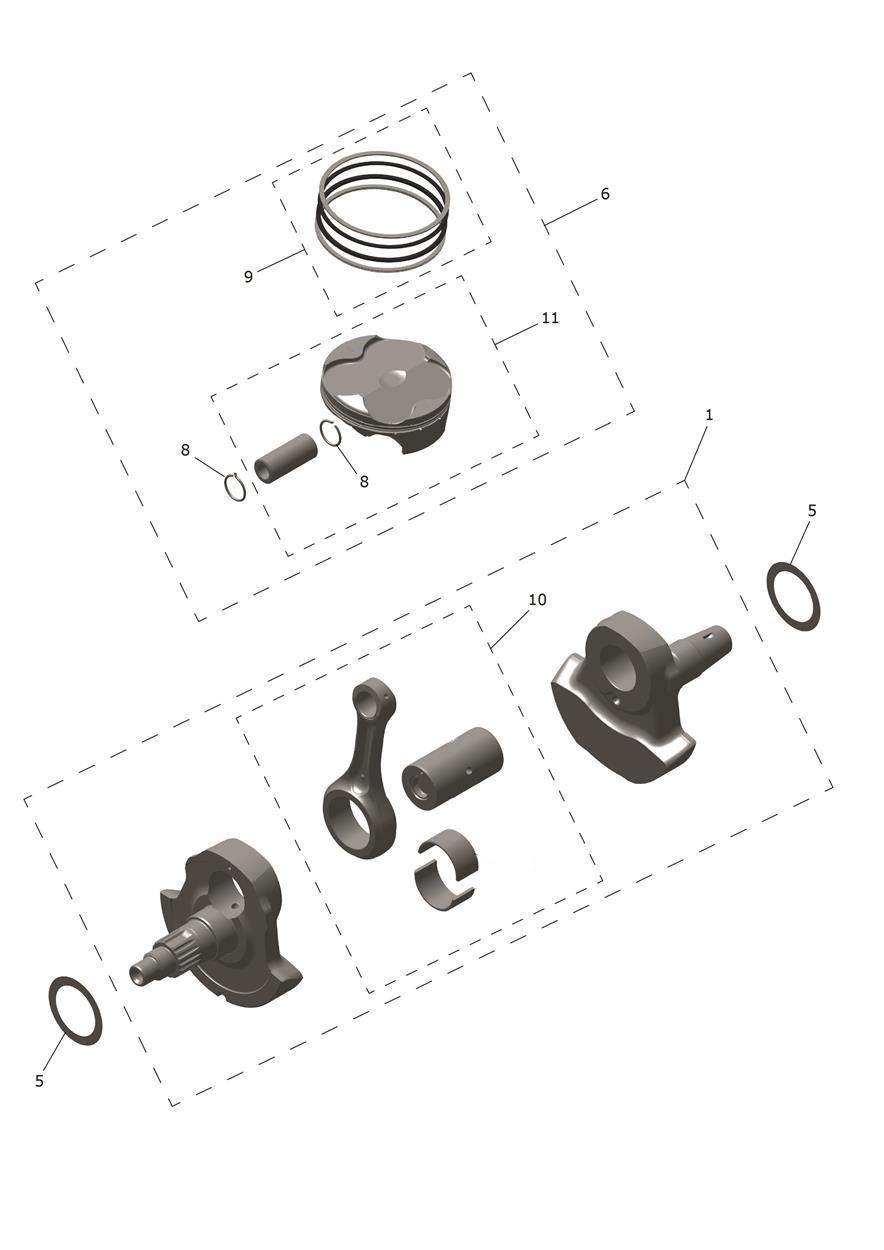

Exploded parts diagram — Crankshaft, Connecting Rods & Pistons, Triumph TF 250-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1105006
Crankshaft Assembly
Qty 1
$1030.00
Available
5
T1105037
Thrust Washer, ID33 x 0.025
Qty -1
Use as required
$6.88
Available
5
T1105061
Thrust Washer, ID33 x 0.1
Qty -1
Use as required
$4.52
In stock in Brea
5
T1105062
Thrust Washer, ID33 x 0.15
Qty -1
Use as required
$4.12
In stock in Brea
5
T1105073
Thrust Washer, ID33 x 0.2
Qty -1
Use as required
$4.52
Available
5
T1105074
Thrust Washer, ID33 x 0.25
Qty -1
Use as required
$4.12
Available
5
T1105063
Thrust Washer, ID33 x 0.3
Qty -1
Use as required
$4.52
Available
6
T1120079
Piston Kit
Qty 1
$294.50
In stock in Brea
8
T1120153
Circlip, Piston, 19 x 1.4
Qty 2
$13.47
Available
9
T1120094
Piston Ring Kit
Qty 1
$12.68
In stock in Brea
10
T1100056
Conrod Replacement Kit
Qty 1
$202.02
In stock in Brea
11
T1120178
Piston & Gudgeon Pin Kit
Qty 1
$279.39
Available
12
T1100049
Crankshaft Bearing Kit
Qty 1
$180.00
Available
13
T1120088
Piston & Gasket Kit
Qty 1
$317.75
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
