Airbox

Triumph TF 250-X · 2024, 2025 · Fuel & Air · 19 parts · 8 on the shelf in Brea

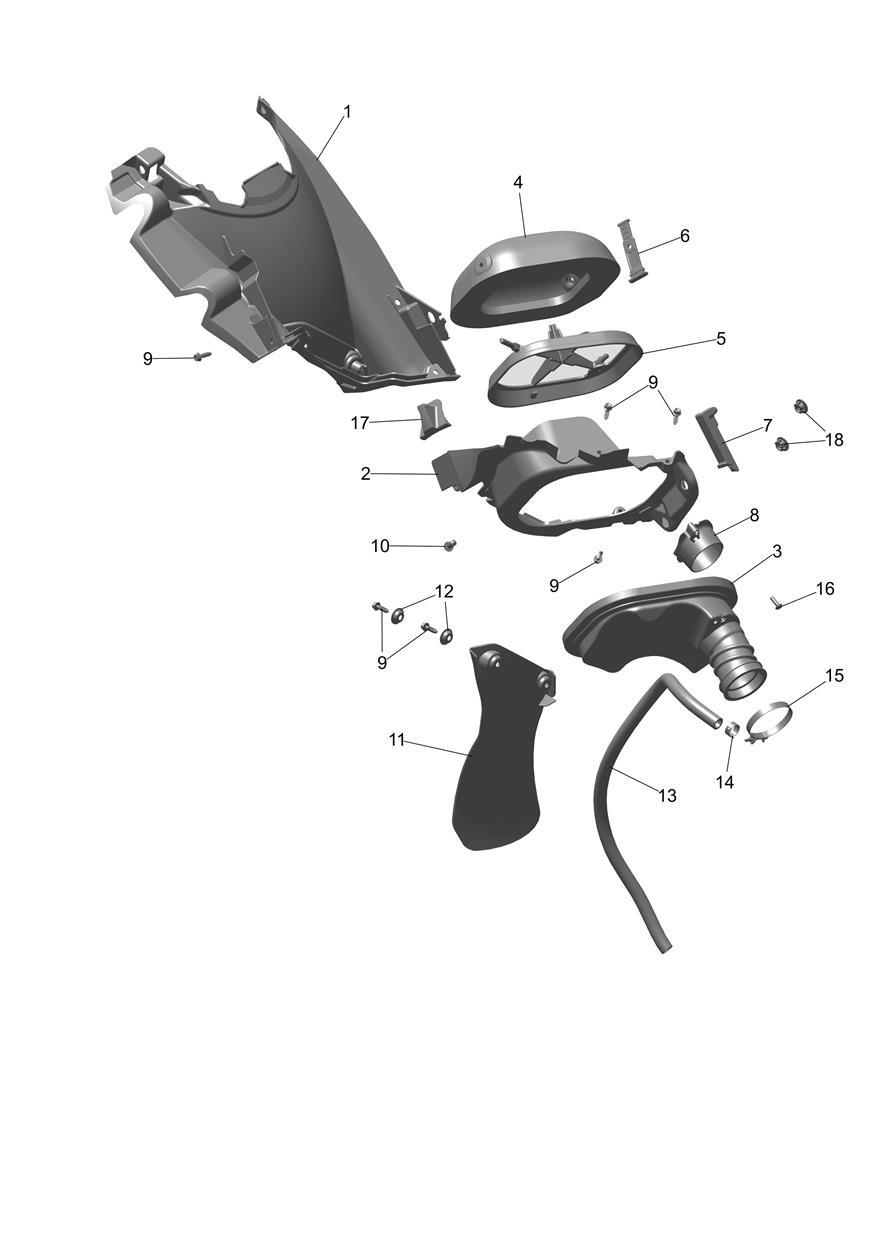

Exploded parts diagram — Airbox, Triumph TF 250-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2204673
Airbox, Rear
Qty 1
$16.45
In stock in Brea Shipping quote or pickup
2
T2205688
Airbox, Front
Qty 1
$16.45
Available Shipping quote or pickup
3
T2208635
Inlet, Airbox Mlgd
Qty 1
$195.68
Available
4
T2205329
Air Filter, Foam, Assy, Spares
Qty 1
$24.75
In stock in Brea
5
T2206287
Cage, Filter
Qty 1
$23.50
In stock in Brea
6
T2206282
Strap, Rubber, Air Filter
Qty 1
$2.24
Available
7
T2207357
Infill, Rubber
Qty 1
$6.24
In stock in Brea
8
T2207512
Inlet, Trumpet, Mid
Qty 1
$4.81
Available
9
T3336102
Screw, S/Tap, HHF, 6 x 20, PT
Qty 6
$2.53
In stock in Brea
10
T3451144
Firtree, Button, 8mm
Qty 1
$1.99
Available
11
T2312137
Splash Guard Mldg
Qty 1
$27.68
In stock in Brea
12
T2311740
Washer, Domed, OD22, ID6.6
Qty 2
$5.77
Available
13
T2209729
Breather Hose
Qty 1
Low stock at Triumph
$8.77
Limited availability
14
T3700076
Hose Clip, 14-15.5
Qty 1
$4.61
Available
15
T3700248
Clip, Dia 61
Qty 1
$5.31
Available
16
T3331414
Screw, S/Tap, Tx, 5 x 16
Qty 1
$1.99
In stock in Brea
17
T2206998
Grommet
Qty 1
$2.59
Available
18
T2312015
Rubber Grommet
Qty 2
$1.99
In stock in Brea
19
T3750036
Insert, Press-In, Sltd, 13 x 15.5 x 6
Qty 1
$16.69
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
