Main Frame Assembly

Triumph TF 250-X · 2024, 2025 · Chassis & Suspension · 18 parts · 4 on the shelf in Brea

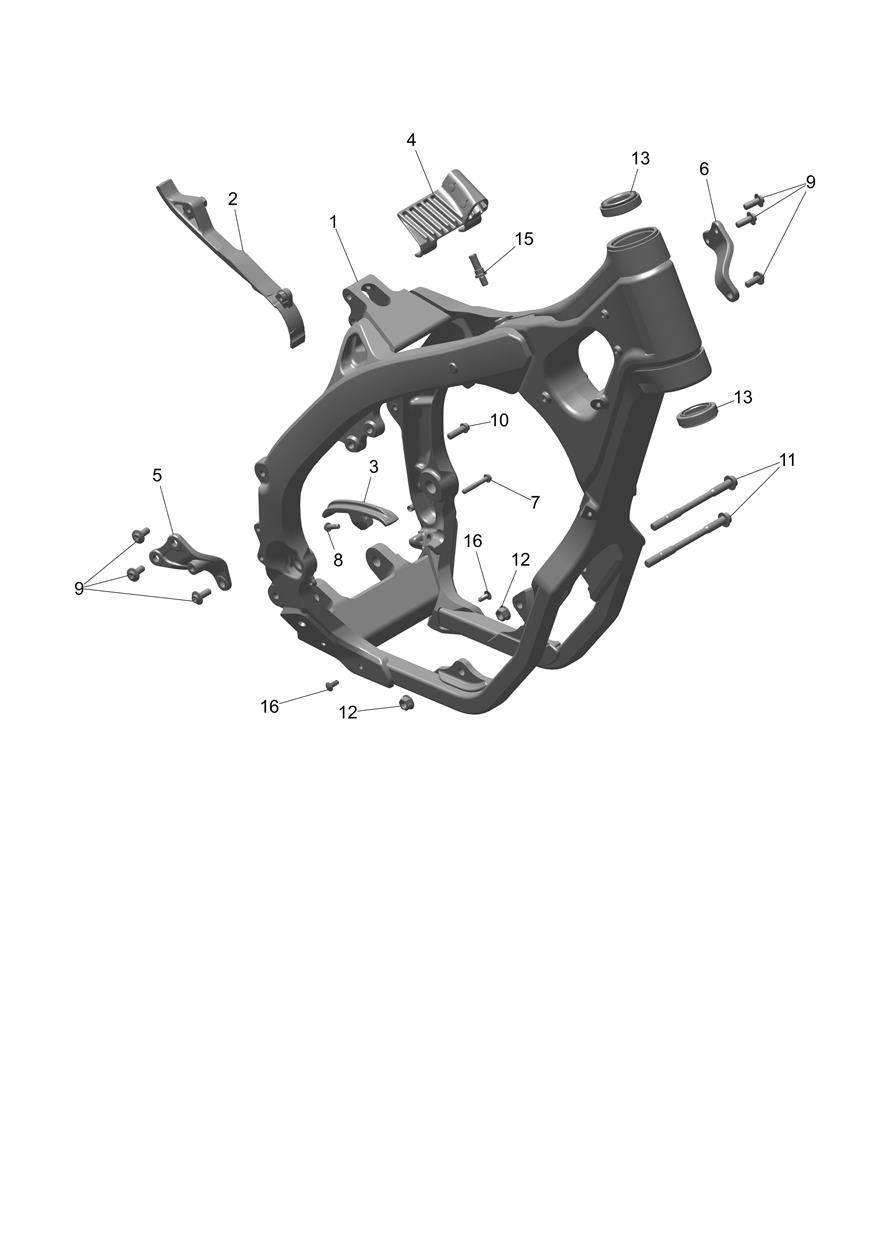

Exploded parts diagram — Main Frame Assembly, Triumph TF 250-X

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2078475
Main Frame Assy, MX, Spares
Qty 1
Includes Items 4, 13 & 15
Backordered at Triumph · expected Oct 30
$2181.55
On backorder Shipping quote or pickup
1
T2074236
Frame, MX, Spares, Vinless
Qty 1
$2181.55
Available Shipping quote or pickup
2
T2072337
Upper Chain Guard
Qty 1
$35.93
In stock in Brea
3
T2073539
Lower Chain Slider
Qty 1
$24.67
In stock in Brea
4
T2074113
Rubber, Fuel Tank, Frame
Qty 1
Low stock at Triumph
$7.41
Limited availability
5
T2074212
Bracket, Head Steady, Type 1, RH
Qty 1
$52.85
Available
6
T2074215
Bracket, Head Steady, Type 1, LH
Qty 1
$52.85
Available
7
T3200666
Bolt, TX, Lgtnd, M6 x 40, Slv
Qty 1
Low stock at Triumph
$2.47
Limited availability
8
T3200675
Bolt, TX, Lghtd, M6 x 20, Enc
Qty 1
$2.47
Available
9
T3200802
Bolt, TX, M8 x 1.25 x 25, Enc
Qty 6
$3.29
Available
10
T3200882
Bolt, TX, Lghtd, M8 x 25, Enc
Qty 1
$2.47
Available
11
T3201121
Bolt, TX, M10 x 1.25 x 130, Slv
Qty 2
Backordered at Triumph · expected Nov 20
$15.21
On backorder
12
T3350250
Locknut, Flanged, M10
Qty 2
$3.85
In stock in Brea
13
T3800610
Bearing, Taper, 29 x 50, 292 x 14, 224
Qty 2
$24.67
Available
15
T2403659
Spigot, Tank Mount
Qty 1
$13.49
In stock in Brea
16
T3451270
Fir Tree, Black, 5 x 12
Qty 2
$4.91
Available
17
T2075646
Sprocket Guard Kit, 250
Qty 1
Comprises Items 2 & 7
$38.69
Available
18
T2075645
Lower Chain Slider Kit, Spares
Qty 1
Comprises Items 3 & 8
Low stock at Triumph
$10.20
Limited availability

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
