Linkage

Triumph TF 250-E · 2026 · Chassis & Suspension · 28 parts

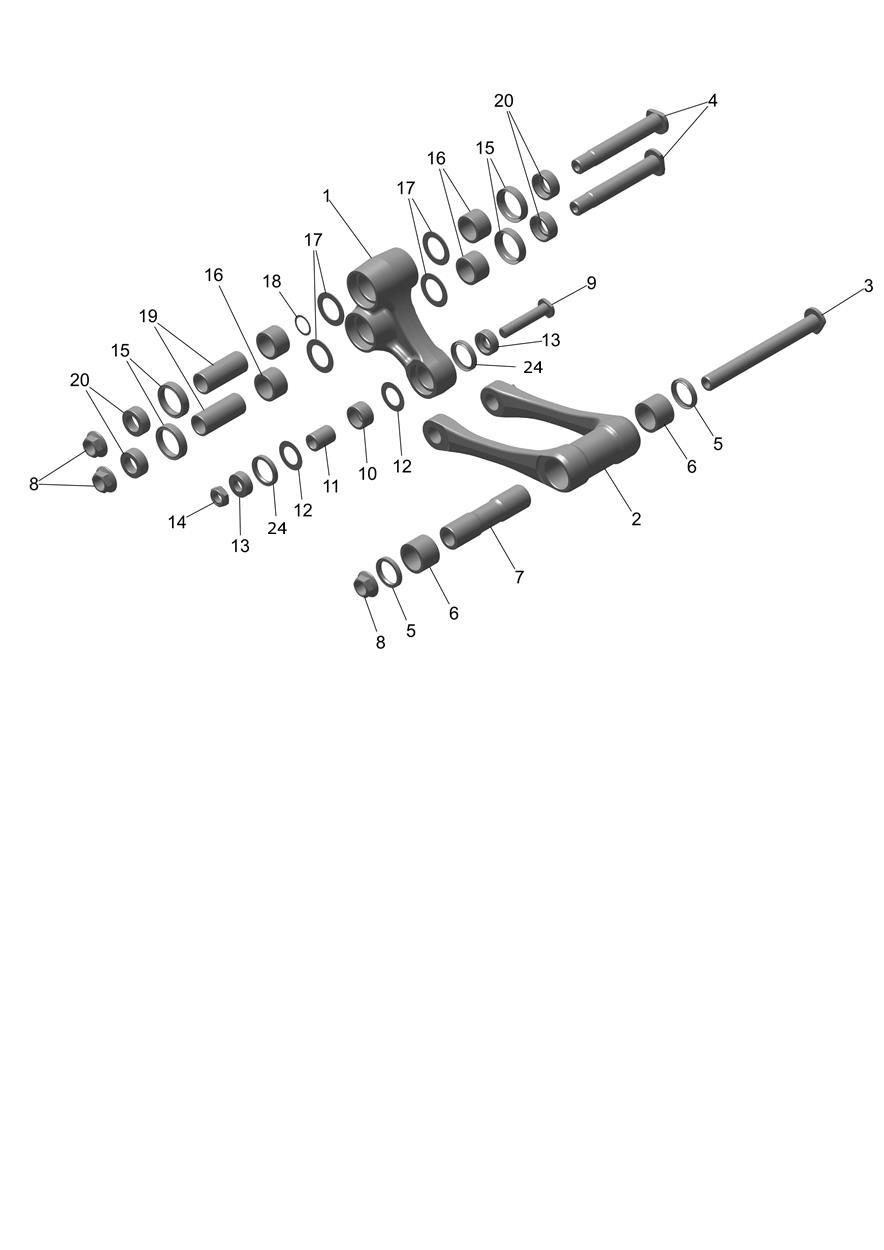

Exploded parts diagram — Linkage, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2057511
Rocker, Linkage
Qty 1
$107.46
Available
2
T2056900
Draglink Spares
Qty 1
Contains Draglink & Items 5, 6 & 7
$90.44
Available
3
T2058765
Bolt, M14 x 1.5 x 131
Qty 1
Low stock at Triumph
$20.56
Limited availability
4
T2050858
Bolt, M14 x 1.5 x 97
Qty 2
$15.21
Available
5
T3600590
Seal, 22 x 28 x 4
Qty 2
$1.99
Available
6
T3800908
Bearing, Drawn Cup, Hk 2220
Qty 2
$41.11
Available
7
T2059227
Sleeve, 14 x 22 x 90
Qty 1
$24.67
Available
8
T2050738
Flanged Nut, M14
Qty 3
$8.71
Available
9
T2050903
Bolt, M10 x 1.25 x 52
Qty 1
$7.81
Available
10
T3803120
Bearing, Needle Roller, 17 x 24 x 12
Qty 1
$11.64
Available
11
T2051517
Sleeve, 10 x 17 x 21.4
Qty 1
$8.27
Available
12
T2051516
Shim, 18 x 32 x 0.4
Qty 2
Low stock at Triumph
$2.03
Limited availability
13
T2051518
Spacer, Bucket, 10 x 25 x 8
Qty 2
$6.73
Available
14
T3350134
Locknut, M10 x 1.25
Qty 1
$2.35
Available
15
T3600570
Seal, 25 x 32 x x 7
Qty 4
$2.03
Available
16
T3800199
Bearing, Needle Roller, 20 x 26 x 20
Qty 4
Low stock at Triumph
$15.27
Limited availability
17
T2059228
Shim, 20 x 31 x 5.1
Qty 4
$3.29
Available
18
T3554324
Shim, 15.3 x 19.4 x 0.1
Qty -1
$4.81
Available
18
T3554325
Shim, 15.3 x 19.4 x 0.2
Qty -1
Low stock at Triumph
$4.81
Limited availability
18
T3554326
Shim, 15.3 x 19.4 x 0.3
Qty -1
$5.17
Available
18
T3554327
Shim, 15.3 x 19.4 x 0.4
Qty -1
$6.32
Available
19
T2051586
Sleeve, 15 x 20 x 48
Qty 2
$24.67
Available
20
T2051590
Spacer, Bucket, 15 x 20 x 10
Qty 4
$8.22
Available
21
T2051616
Bearing Kit 1, Rocker
Qty 1
Contains Items 15, 17, 18, 19 & 20
$47.20
Available
22
T2051617
Bearing Kit 2, Rocker
Qty 1
Contains Items 10, 11, 12 & 13
$67.47
Available
23
T2051619
Bearing Kit, Droplink
Qty 1
Contains Items 5, 6 & 7
$20.69
Available
24
T3600560
Seal, 25 x 32 x 4
Qty 2
$3.24
Available
25
T2051615
Rocker Suspension, Spares
Qty 1
Contains Rocker & Items 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 20
$188.02
Available
