Rear Mudguard

Triumph TF 250-E · 2026 · Bodywork · 8 parts · 2 on the shelf in Brea

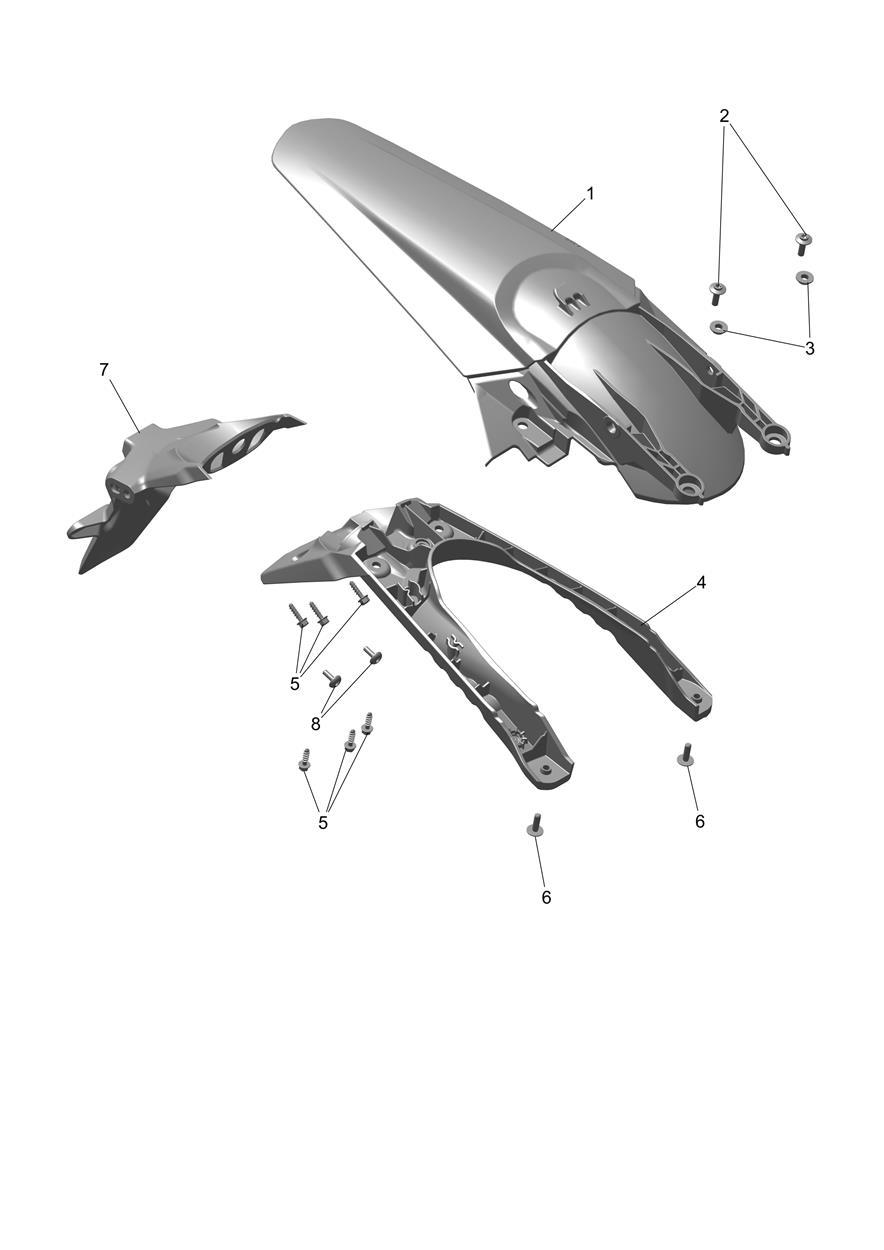

Exploded parts diagram — Rear Mudguard, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2313792
Rear Mudguard, Upper, EN
Qty 1
Backordered at Triumph · no date yet
$64.59
On backorder Shipping quote or pickup
2
T3330446
Bolt, Lge, M6 x 1 x 20, Slv
Qty 2
$1.99
In stock in Brea
3
T3750035
Insert, Press In, 12 x 4.5 x 7.2
Qty 2
$9.99
Available
4
T2315301
Mudguard, Rear, Lower
Qty 1
Low stock at Triumph
$23.28
Limited availability Shipping quote or pickup
5
T3336102
Screw, S/Tap, HHF, 6 x 20, PT
Qty 6
Qty 3 for US & CA Markets
$2.53
In stock in Brea
6
T3330469
Bolt, Lge TX, M6 x 20, Enc
Qty 2
$1.99
Available
7
T2315334
Number Plate Hanger, EC
Qty 1
All Except US & CA
Low stock at Triumph
$11.14
Limited availability
8
T3330943
Screw, But/Hd, M5 x 14, Slv
Qty 2
$4.56
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
