Gear Selectors & Pedal

Triumph TF 250-E · 2026 · Engine · 28 parts · 2 on the shelf in Brea

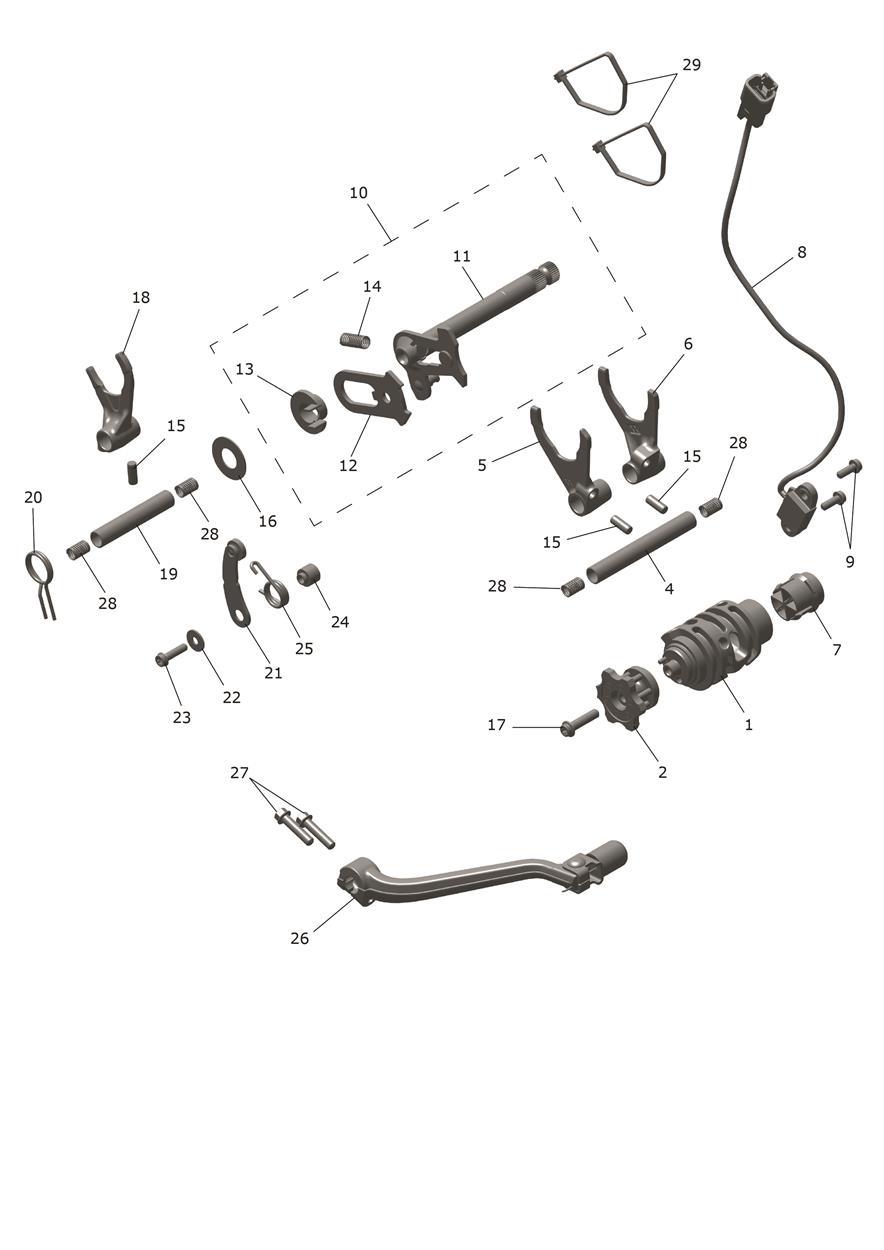

Exploded parts diagram — Gear Selectors & Pedal, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1190218
Drum, Gear Selector
Qty 1
Low stock at Triumph
$79.83
Limited availability
2
T1190332
Selector Star Assy
Qty 1
$90.44
Available
4
T1190186
Shaft, Selector, Output
Qty 1
$16.45
Available
5
T1190381
Fork Selector, Output, Left
Qty 1
Low stock at Triumph
$122.72
Limited availability
6
T1190382
Fork Selector, Output, Right
Qty 1
Low stock at Triumph
$122.72
Limited availability
7
T1190182
Selector Drum Magnet
Qty 1
$41.11
Available
8
T2502960
Sensor, Gear Position Assembly
Qty 1
$123.33
Available
9
T3200552
Bolt, TX, M5 x 14, Enc
Qty 2
Low stock at Triumph
$2.47
Limited availability
10
T1190401
Gear Selector Shaft Assembly
Qty 1
$312.44
Available
11
T1190402
Shaft, Gear Selector
Qty 1
$180.89
Available
12
T1190403
Slider, Gear Selector Assy
Qty 1
Low stock at Triumph
$13.30
Limited availability
13
T1190341
Retainer, Gear Selector
Qty 1
$2.33
Available
14
T1190342
Spring, Gear Selector
Qty 1
$2.33
Available
15
T3000122
Pin, 6 x 14.8
Qty 3
Low stock at Triumph
$1.99
Limited availability
16
T3550356
Washer, 14 x 30 x 1
Qty 1
$2.47
Available
17
T3200676
Bolt, Lghtd, M6 x 25, Enc
Qty 1
$1.99
Available
18
T1190380
Fork Selector, Input
Qty 1
Low stock at Triumph
$122.72
Limited availability
19
T1190193
Shaft, Selector, Input
Qty 1
$16.45
Available
20
T1190351
Spring, Selector Mechanism Return
Qty 1
$8.10
In stock in Brea
21
T1190327
Detent Arm Assy
Qty 1
$24.67
Available
22
T3550354
Washer, M5 x 1.2, DIN9092
Qty 1
$3.53
Available
23
T3200556
Bolt, TX, M5 x 0.8 x 25, Enc
Qty 1
Low stock at Triumph
$2.47
Limited availability
24
T1190452
Spacer, Detent Arm
Qty 1
Low stock at Triumph
$4.70
Limited availability
25
T1190352
Spring, Detent Arm
Qty 1
Low stock at Triumph
$6.77
Limited availability
26
T2088962
Gear Pedal Assy, 108mm
Qty 1
$27.85
In stock in Brea
27
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv
Qty 2
$2.27
Available
28
T1190189
Spring, Shift Fork Shaft
Qty 4
Low stock at Triumph
$2.47
Limited availability
29
T3700015
Cable Tie, 185.7 Long
Qty 2
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
