Starter Drive Gears

Triumph TF 250-E · 2026 · Engine · 7 parts

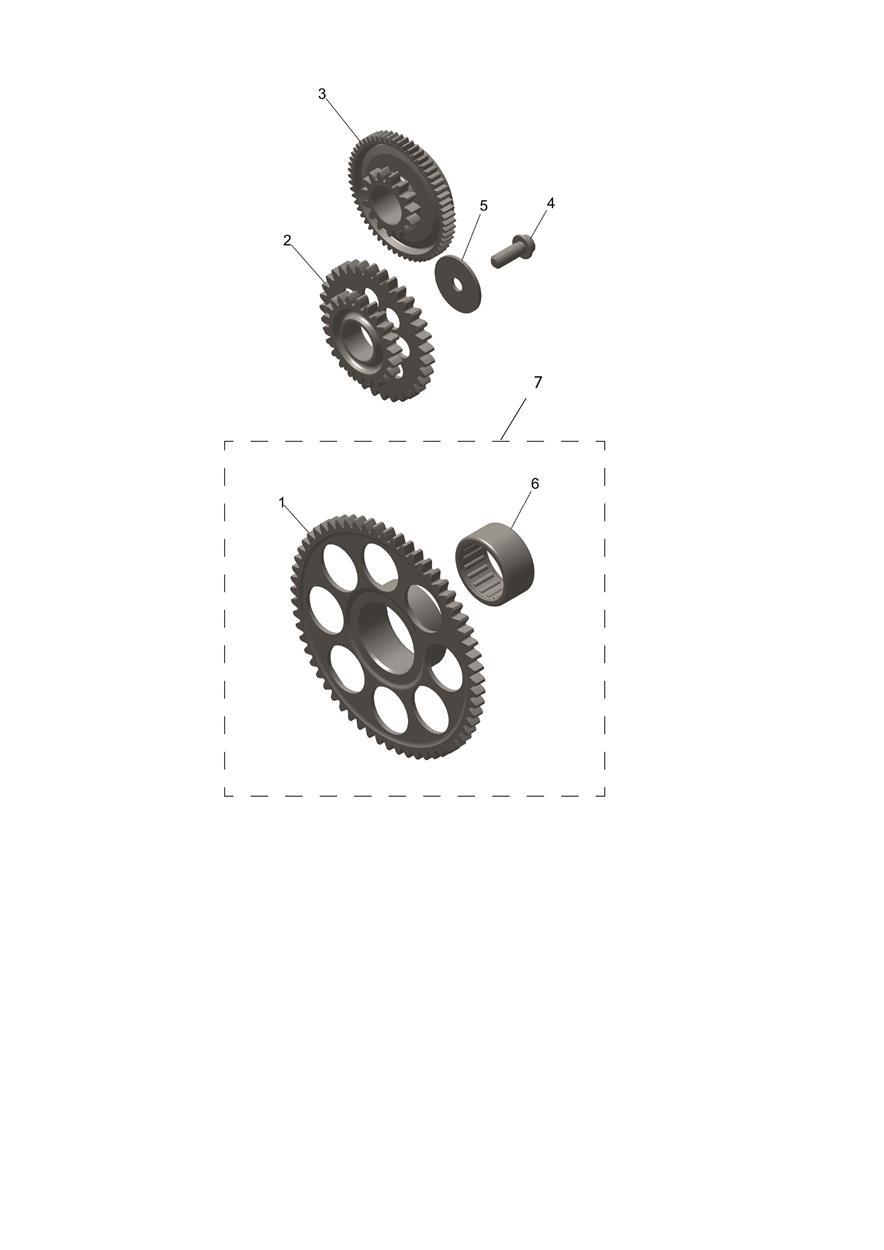

Exploded parts diagram — Starter Drive Gears, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1220027
Gear, Starter Drive, Sprag
Qty 1
Low stock at Triumph
$110.56
Limited availability
2
T1220028
Gear, Idler, Starter, Small
Qty 1
Low stock at Triumph
$71.09
Limited availability
3
T1220029
Torque Limiter Assy
Qty 1
$287.77
Available
4
T3200670
Bolt, TX, Lghtd, M6 x 16, Enc
Qty 1
$3.29
Available
5
T3550359
Washer, 6 x 26 x 1.5
Qty 1
$2.87
Available
6
T3800359
Bearing, Needle, K25 x 32 x 16V5
Qty 1
$11.09
Available
7
T1220088
Starter Drive Gear Kit
Qty 1
Contains items 1 & 6
Low stock at Triumph
$173.04
Limited availability

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
