Rear Subframe

Triumph TF 250-E · 2026 · Chassis & Suspension · 8 parts · 2 on the shelf in Brea

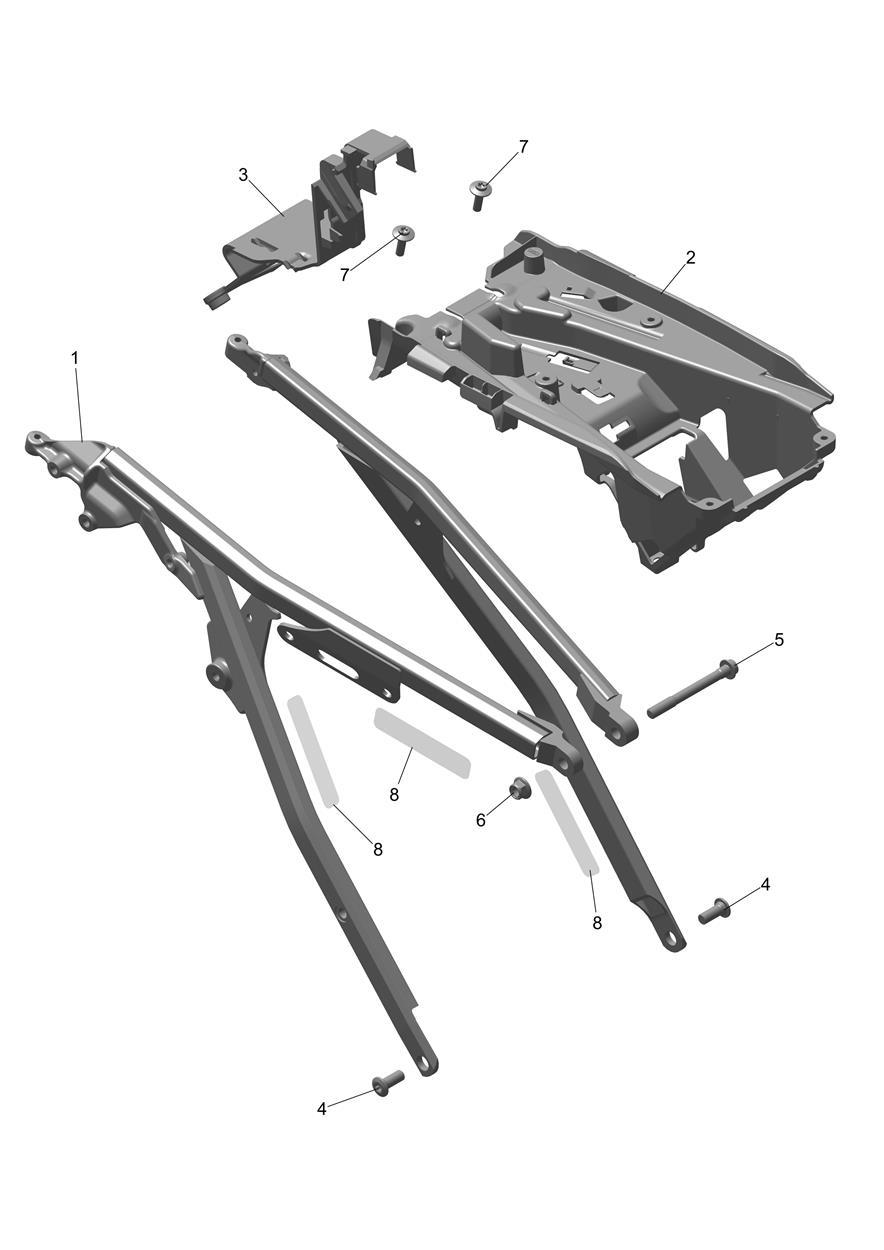

Exploded parts diagram — Rear Subframe, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2074963
Rear Subframe Assembly
Qty 1
Includes Items 10
Low stock at Triumph
$465.65
Limited availability
2
T2313387
Battery Tray, Mldg
Qty 1
$32.89
Available
3
T2313388
Battery Strap
Qty 1
Low stock at Triumph
$9.98
Limited availability
4
T3200218
Bolt, M8 x 20, Slv, Enc
Qty 2
$1.99
Available
5
T3200810
Bolt, TX, M8 x 1.25 x 77, Shld, Slv
Qty 1
$4.73
Available
6
T3350004
Locknut, Flanged, M8 x 1.25
Qty 1
$2.27
In stock in Brea
7
T3330446
Bolt, Lge, M6 x 1 x 20, Slv
Qty 2
$1.99
In stock in Brea
8
T2076901
Protective Film, 82 x 20
Qty 3
Low stock at Triumph
$1.99
Limited availability

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
