Throttle Bodies

Triumph TF 250-E · 2026 · Fuel & Air · 14 parts · 1 on the shelf in Brea

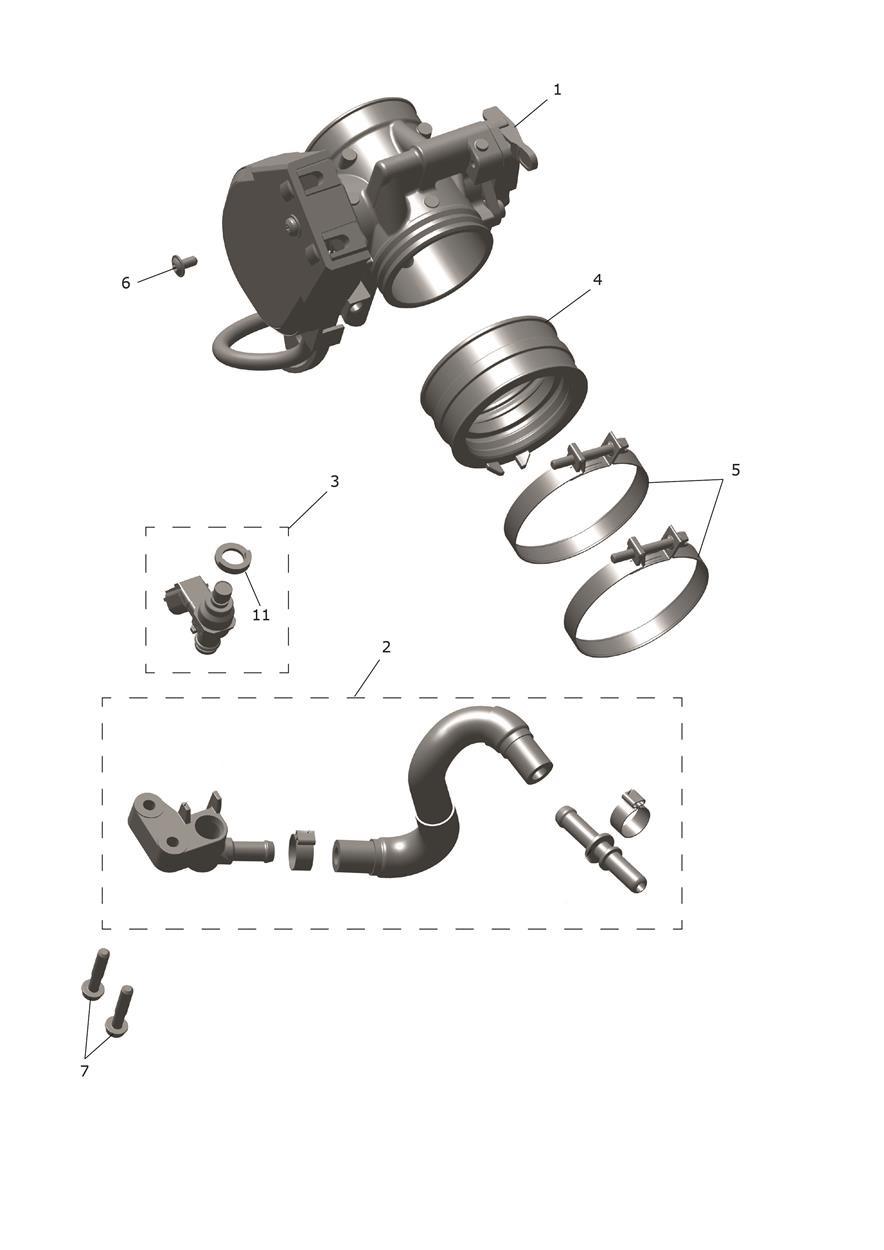

Exploded parts diagram — Throttle Bodies, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T1245106
Throttle Body Assembly
Qty 1
Low stock at Triumph
$345.97
Limited availability
2
T2403813
Hose Assy, Injector, MX
Qty 1
$46.57
Available
3
T1246602
Fuel Injector Assembly
Qty 1
$66.45
Available
4
T1240373
Transition Piece
Qty 1
Low stock at Triumph
$20.56
Limited availability
5
T3700248
Clip, Dia 61
Qty 2
$5.31
Available
6
T3330434
Bolt, TX20, M4 x 0.7 x 8
Qty 1
Low stock at Triumph
$7.96
Limited availability
7
T3200556
Bolt, TX, M5 x 0.8 x 25, Enc
Qty 2
Low stock at Triumph
$2.47
Limited availability
11
T1243421
Seal Ring, Dust
Qty 1
$18.50
Available
12
T1240369
Cable Cover
Qty 1
Spares Component of Item 1 - Not Illustrated
$13.30
Available
13
T1240374
TPS Sensor Kit
Qty 1
Spares Component of Item 1 - Not Illustrated
Backordered at Triumph · we’ll confirm the ship date after you order
$306.00
On backorder
14
T1240375
O Ring, TPS
Qty 1
Spares Component of Item 1 - Not Illustrated
$5.31
In stock in Brea
15
T1240376
Bolt, TPS
Qty 1
Spares Component of Item 1 - Not Illustrated
$11.30
Available
16
T1240379
Cold Start Assy Kit
Qty 1
Spares Component of Item 1 - Not Illustrated
$113.08
Available
17
T1240381
Idle Adjustment Kit
Qty 1
Spares Component of Item 1 - Not Illustrated
$113.08
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
