Evaporative System

Triumph TF 250-E · 2026 · Accessories · 20 parts · 1 on the shelf in Brea

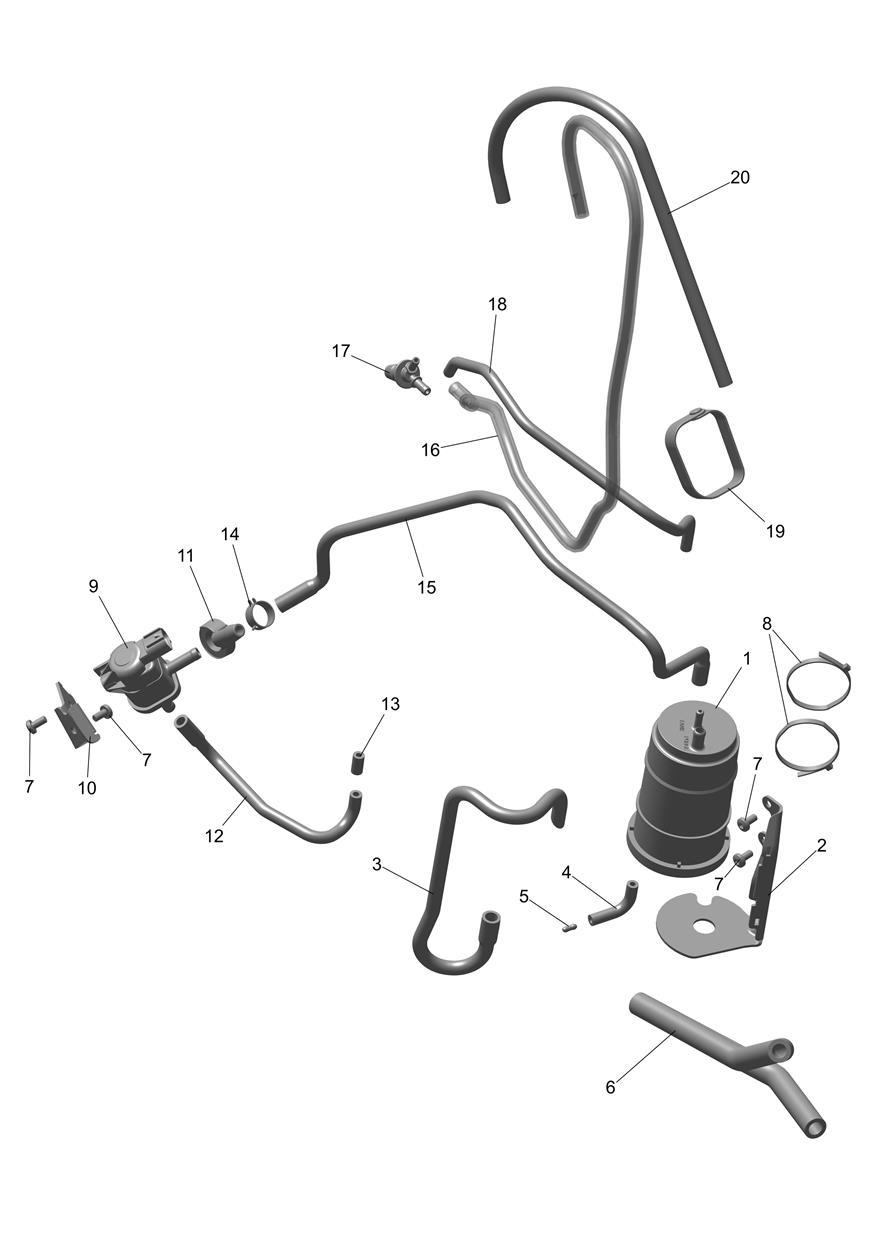

Exploded parts diagram — Evaporative System, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2409016
Carbon Cannister, 110mm Length
Qty 1
All Except US & CA
$51.92
Available
2
T2403832
Bracket, Evap Cannister Mtg
Qty 1
All Except US & CA
$16.63
Available
3
T2403822
Hose, Evap, Air Vent
Qty 1
All Except US & CA
$13.30
Available
4
T2403817
Drain Line, Evap System
Qty 1
All Except US & CA
$13.30
Available
5
T1241890
Restrictor, Purge, Evap
Qty 1
All Except US & CA
$10.49
Available
6
T2402864
Hose, Separator, Evap
Qty 1
All Except US & CA
$19.96
Available
7
T2206616
Bolt, M5 x 10, Pan
Qty 4
All Except US & CA
$5.92
Available
8
T3700016
Cable Tie, 370 Long
Qty 2
All Except US & CA
$1.99
In stock in Brea
9
T1248990
Purge Valve
Qty 1
All Except US & CA
$61.60
Available
10
T2403833
Bracket, Purge Valve, Mtg
Qty 1
All Except US & CA
$11.30
Available
11
T2403748
Plug, Separator, Evap
Qty 1
All Except US & CA
$7.31
Available
12
T2403823
Hose, Evap, Purge Throttle
Qty 1
All Except US & CA
$16.63
Available
13
T1245009
Cap, Vacuum Connection
Qty 1
US & UC Only
$4.39
Available
14
T3700076
Hose Clip, 14-15.5
Qty 1
All Except US & CA
$4.61
Available
15
T2403821
Hose, Evap, Purge Valve Feed
Qty 1
All Except US & CA
Low stock at Triumph
$19.96
Limited availability
16
T2403819
Hose, Evap, Tank Overflow
Qty 1
All Except US & CA
Low stock at Triumph
$19.96
Limited availability
17
T2403747
Y-Piece Asymetric
Qty 1
All Except US & CA
$9.98
Available
18
T2403820
Hose, Evap, Cannister, Link
Qty 1
All Except US & CA
$9.98
Available
19
T3701241
Rubber Band
Qty 1
$1.99
Available
20
T2404263
Hose, Fuel Cap
Qty 1
US & CA Only
$19.96
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
