Instruments

Triumph TF 250-E · 2026 · Electrical · 9 parts

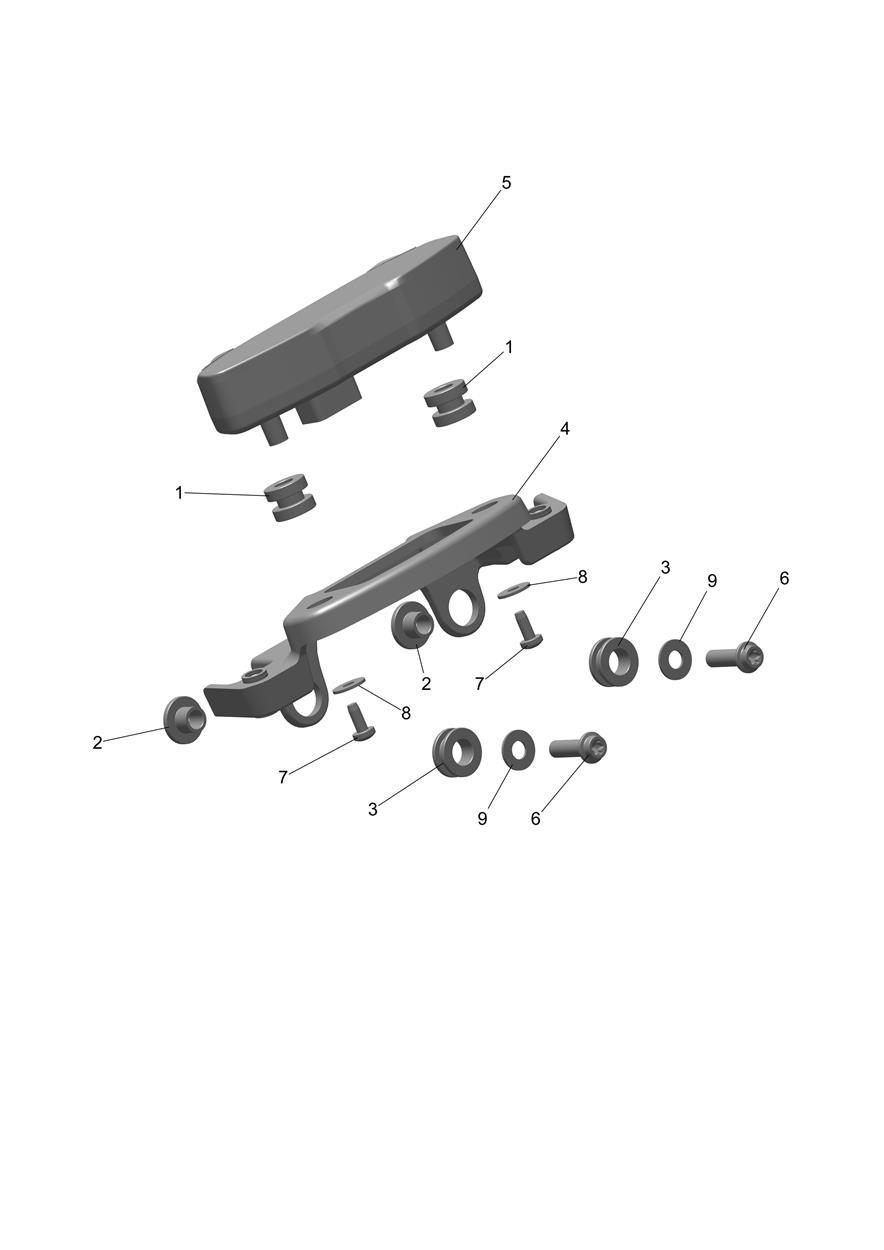

Exploded parts diagram — Instruments, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2503286
Grommet, Instruments
Qty 2
Low stock at Triumph
$1.99
Limited availability
2
T2504133
Bushing
Qty 2
$6.32
Available
3
T2504155
Gromment, Instruments
Qty 2
$1.99
Available
4
T2505399
Bracket, Instruments
Qty 1
Low stock at Triumph
$7.31
Limited availability
5
T2508886
Instrument, LCD, Z
Qty 1
$106.01
Available
6
T3200663
Bolt, TX, Lghtd, M6 x 20, Slv
Qty 2
$2.47
Available
7
T3331439
Screw, S/Tap, Pan/Hd, M4 x 10, Slv
Qty 2
$5.54
Available
8
T3551066
Washer, 4.3 x 12.0 x 1.0
Qty 2
$1.99
Available
9
T3552002
Washer, M6 x 14 x 1
Qty 2
$1.99
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
