Rear Master Cylinder

Triumph TF 250-E · 2026 · Brakes & Wheels · 26 parts · 3 on the shelf in Brea

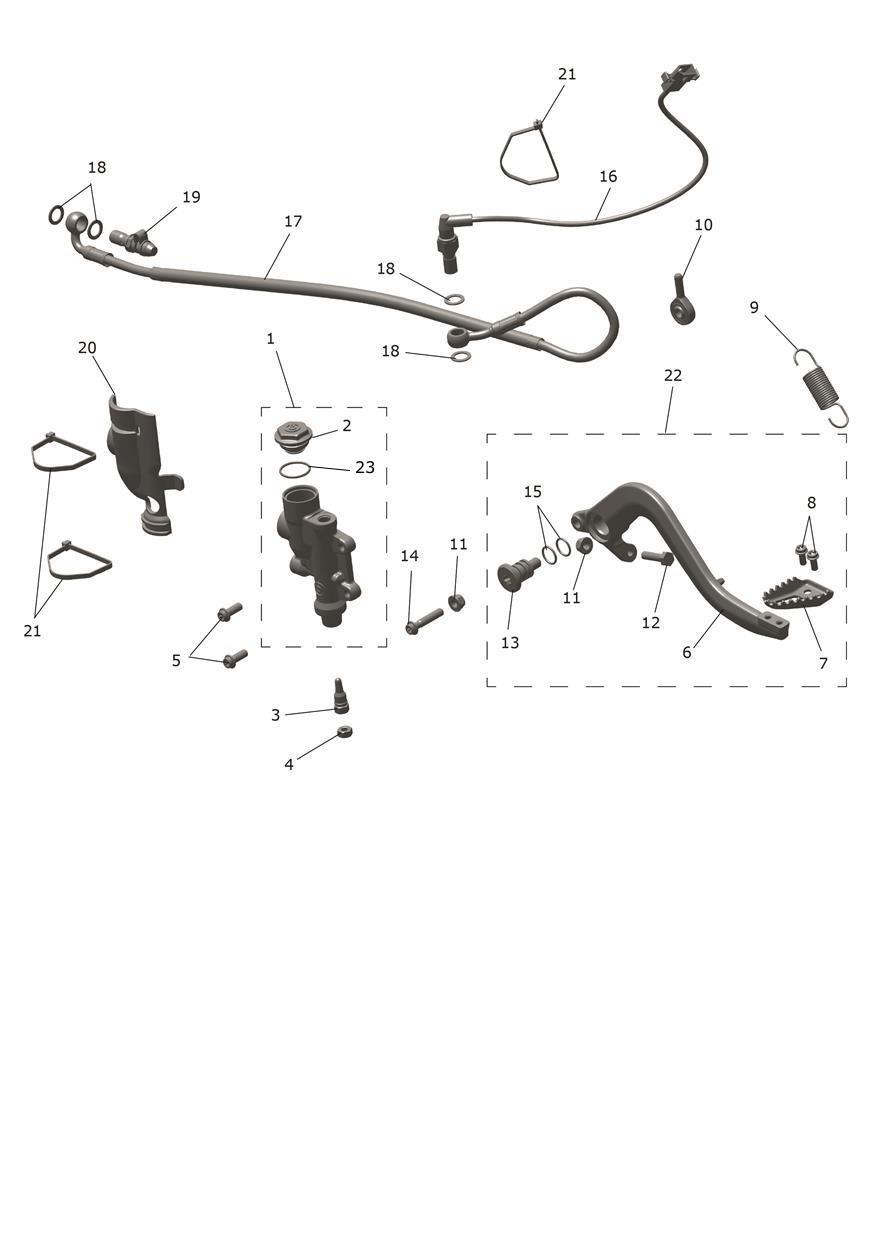

Exploded parts diagram — Rear Master Cylinder, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2025027
Rear Master Cylinder
Qty 1
$185.19
Available
2
T2022389
Screwcap Kit
Qty 1
$70.33
Available
2a
T2026245
O Ring Reservoir Kit
Qty 1
$6.18
Available
3
T2028743
Pushrod, Master Cylinder
Qty 1
$32.89
Available
4
T3350300
Nut, M6 x 1.0, Slv
Qty 1
$1.99
In stock in Brea
5
T3200662
Bolt, TX, Lghtd, M6 x 16, Slv
Qty 2
$2.47
Available
6
T2023174
Brake Pedal
Qty 1
$82.22
Available
7
T2023251
Toe Piece, Brake Pedal
Qty 1
All Except US & CA - Not included in item 22 - Larger Toe Piece
$7.19
Available
7
T2023250
Toe Piece, Brake Pedal
Qty 1
$7.02
Available
8
T3200557
Bolt, TX, M5 x 12, Enc
Qty 2
$2.47
Available
9
T2023171
Spring, Tension
Qty 1
Low stock at Triumph
$2.47
Limited availability
10
T2028740
Brg, Rod End
Qty 1
Low stock at Triumph
$68.92
Limited availability
11
T3350003
Locknut, Flanged, M6 x 1
Qty 2
$1.99
Available
12
T3202081
Bolt, Hex/Hd, M6 x 25
Qty 1
Low stock at Triumph
$2.47
Limited availability
13
T3338003
Bolt, Pivot, M8 x 1.25, Enc
Qty 1
Low stock at Triumph
$5.77
Limited availability
14
T3200665
Bolt, TX, Lghtd, M6 x 30, Slv
Qty 1
$3.29
Available
15
T3600104
O Ring
Qty 2
$1.99
Available
16
T2022169
Hydraulic Switch, Brake, M10 x 10
Qty 1
$44.04
Available
17
T2028507
Rear Brake Hose Assembly
Qty 1
$64.00
Available
18
T3550229
Washer, 15.2 x 10 x 1, Plated
Qty 4
$1.99
In stock in Brea
19
T2020383
Bolt, Banjo, M10
Qty 1
$9.99
Available
20
T2022690
Guard, Master Cylinder, Rear
Qty 1
$4.85
Available
21
T3700015
Cable Tie, 185.7 Long
Qty 3
$1.99
Available
22
T2023226
Brake Pedal Spares Kit
Qty 1
Includes Toe Piece T2023250
$76.04
In stock in Brea
23
T2026245
O Ring Reservoir Kit
Qty 1
$6.18
Available
24
T2022390
Boot Kit
Qty 1
Not Illustrated - contained in Rear M/Cyl Assy, Item 1
$37.36
Available
