Front Master Cylinder

Triumph TF 250-E · 2026 · Brakes & Wheels · 17 parts · 3 on the shelf in Brea

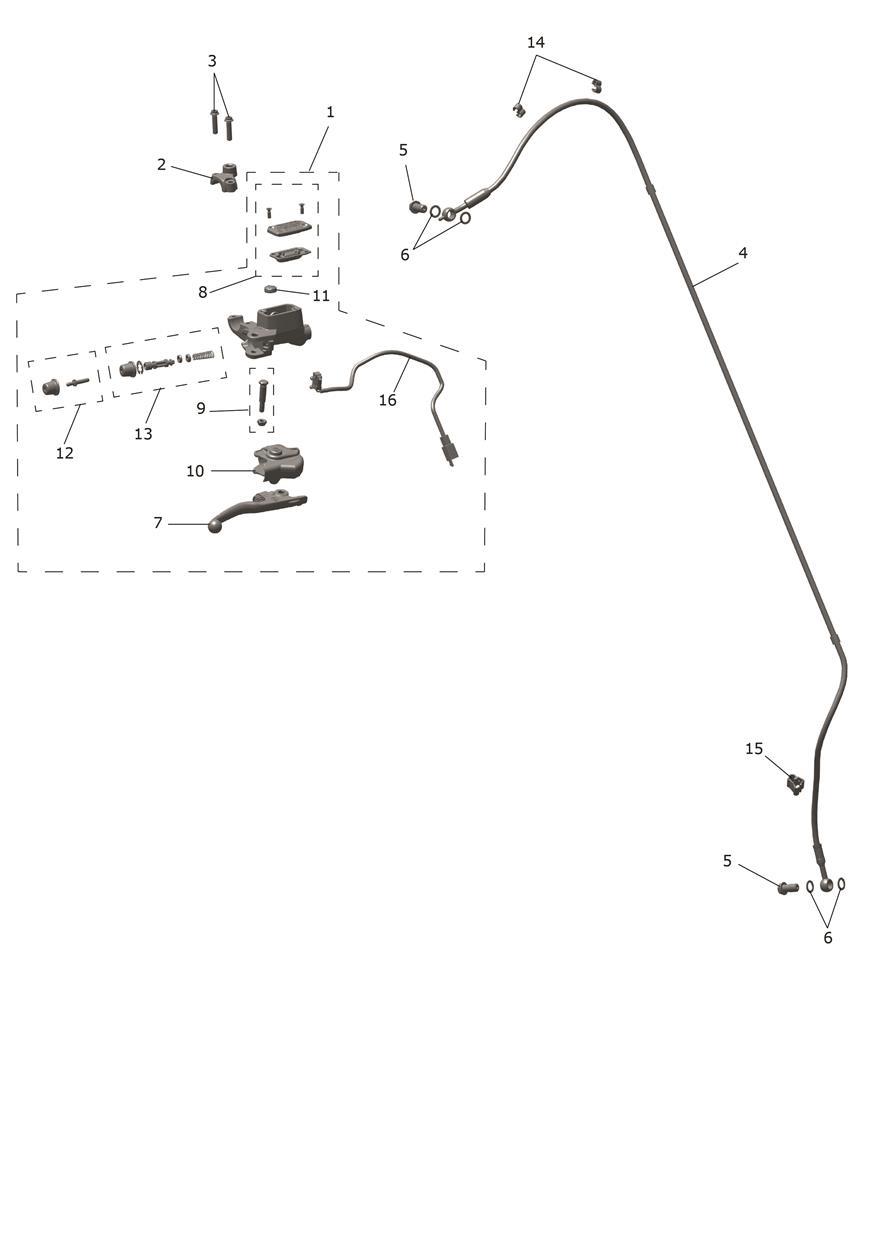

Exploded parts diagram — Front Master Cylinder, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2027181
Front Master Cylinder Assy, EN
Qty 1
$246.13
Available
2
T2060207
Mirror Mount, RH
Qty 1
All Except US & CA
$6.65
Available
2
T2022285
Clamp, Master Cylinder
Qty 1
US & CA Only
$10.38
Available
3
T3200664
Bolt, TX, Lghtd, M6 x 25, Slv
Qty 2
$3.29
In stock in Brea
4
T2023516
Front Brake Hose Assy, EN
Qty 1
$85.89
Available
5
T3250032
Banjo Bolt, M10 x 19
Qty 2
$5.17
Available
6
T3550229
Washer, 15.2 x 10 x 1, Plated
Qty 4
$1.99
In stock in Brea
7
T2022372
Kit, Brake Lever Kit
Qty 1
Low stock at Triumph
$38.75
Limited availability
8
T2022382
Kit, Reservoir Cap Kit
Qty 1
$30.62
Available
9
T2022383
Kit, Lever Pin Kit
Qty 1
$24.29
Available
10
T2022385
Kit, Dust Cover Kit
Qty 1
$25.05
Available
11
T2022386
Kit, Anti-Bubble Kit
Qty 1
$21.37
Available
12
T2022374
Kit, Pushrod Kit
Qty 1
Low stock at Triumph
$26.62
Limited availability
13
T2044149
Kit, M/Cyl Piston
Qty 1
Low stock at Triumph
$57.56
Limited availability
14
T3700061
Clip, Cable Double
Qty 2
$4.91
Available
15
T3700289
Clip, Brake Hose
Qty 1
Low stock at Triumph
$2.00
Limited availability
16
T2022379
Kit, Microswitch
Qty 1
$53.21
In stock in Brea

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
