Fuel Pump

Triumph TF 250-E · 2026 · Fuel & Air · 14 parts · 3 on the shelf in Brea

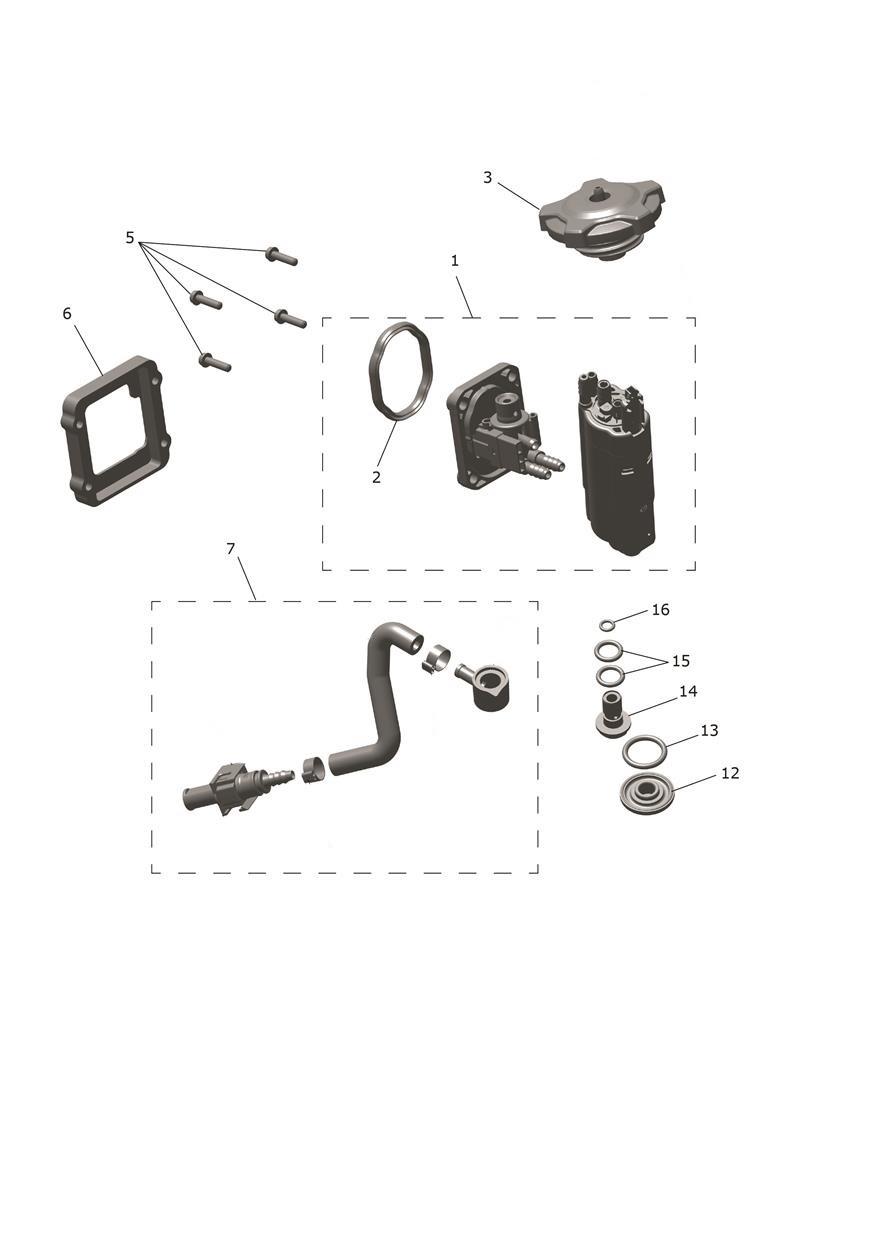

Exploded parts diagram — Fuel Pump, Triumph TF 250-E

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2408871
Fuel Pump Assy, Long
Qty 1
$462.55
Available
2
T2402955
Gasket, Fuel Pump
Qty 1
Low stock at Triumph
$44.40
Limited availability
3
T2407272
Fuel Filler Cap Assy
Qty 1
$33.26
Available
5
T3200399
Bolt, TX, M5 x 20, Slv
Qty 4
$2.47
In stock in Brea
6
T2409971
Location Plate, Fuel Pump
Qty 1
$17.33
Available
7
T2403811
Hose Assy, Fuel Feed, EN
Qty 1
$46.57
Available
12
T2406630
Drain Plug, Fuel Tank
Qty 1
Low stock at Triumph
$11.09
Limited availability
13
T3600605
O Ring, ID 20.5 x 3.53
Qty 1
$1.99
Available
14
T3250031
Banjo Bolt, M8
Qty 1
$7.81
Available
15
T3600602
O Ring, ID 12x3
Qty 2
$1.99
Available
16
T3609945
O Ring, ID 6 x 2
Qty 1
$1.99
In stock in Brea
17
T2408433
Gasket Set, Fuel Pump
Qty 1
Comprises Items 2, 15 & 16
Low stock at Triumph
$60.29
Limited availability
18
T2408434
Banjo Bolt Assy, Fuel Pump
Qty 1
Comprises Items 14, 15 & 16 - All Except US & CA
$18.63
Available
19
T2408432
Filter Set, Fuel Pump
Qty 1
Not Illustrated
$87.36
In stock in Brea
