Rear Caliper & Discs

Triumph TF 250-C · 2026 · Brakes & Wheels · 10 parts · 3 on the shelf in Brea

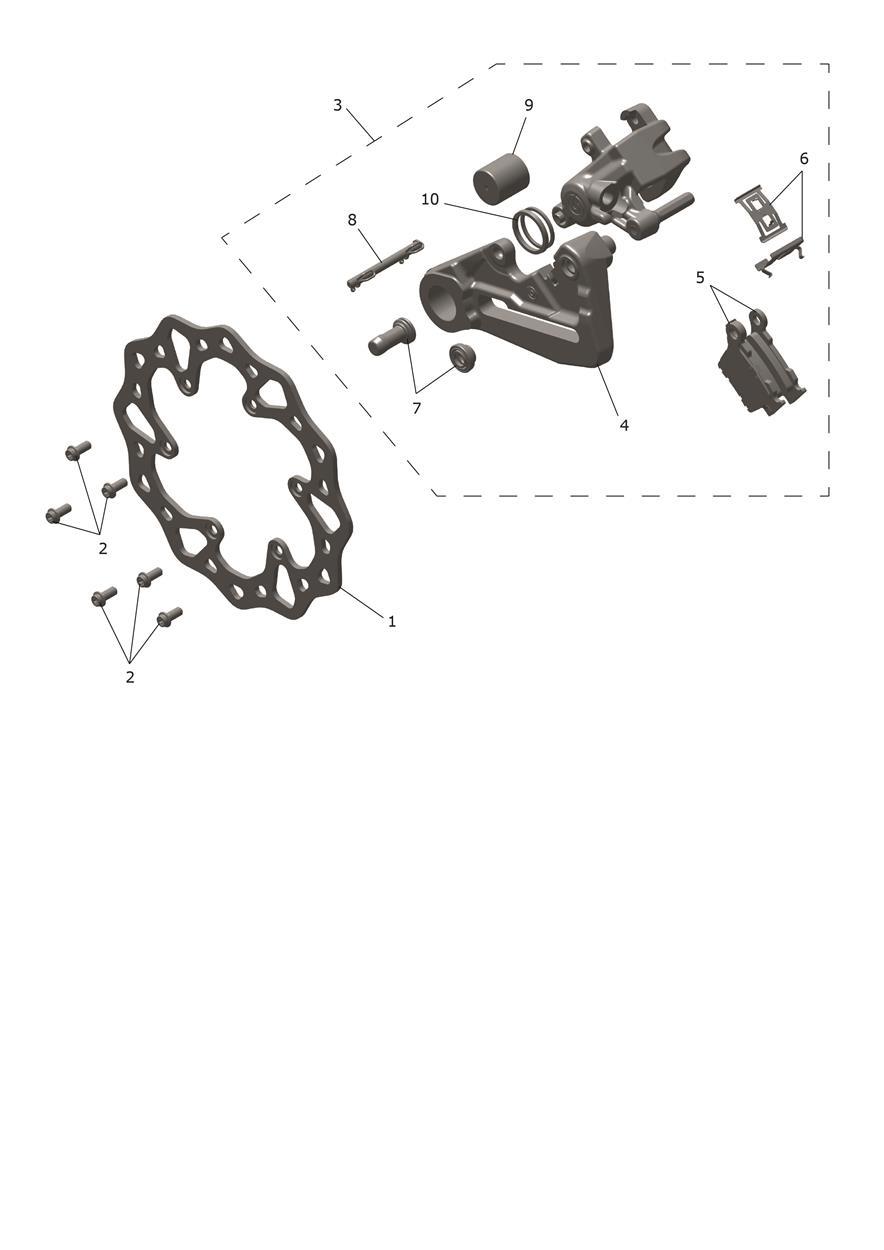

Exploded parts diagram — Rear Caliper & Discs, Triumph TF 250-C

Open this diagram in the interactive viewer → Click any callout on the drawing to jump to the part.

Every part on this diagram

1
T2025031
Rear Disc, EN
Qty 1
$140.92
Available
2
T3200672
Bolt, TX, Lghtd, M6 x 14, Enc
Qty 6
$2.47
Available
3
T2025028
Rear Caliper Assembly
Qty 1
$411.10
Available
4
T2026246
Bracket, Rear Caliper
Qty 1
$251.77
Available
5
T2022348
Kit, Rear Brake Pad
Qty 1
$57.86
In stock in Brea
6
T2022351
Kit, Spring Steel Clip
Qty 1
$29.14
In stock in Brea
7
T2022352
Boot Kit
Qty 1
$29.14
Available
8
T2022349
Kit, Retaining Pins
Qty 1
$18.43
In stock in Brea
9
T2026247
Caliper Piston
Qty 1
$54.65
Available
10
T2026248
Kit, Caliper Seals
Qty 1
$27.83
Available

Diagram and part data from Triumph’s own parts catalogue. Prices and availability are a dated snapshot, not a reservation. Fitment is Triumph’s data — send us the last six of your VIN if you want it checked before you order.
